29-inch DT Swiss U 533 rim

This robust, durable 22 mm rim is ideal for long trekking tours. It is perfectly suited to modern e-touring and trekking bikes, effortlessly handling long distances and occasional rough terrain. Thanks to sturdy aluminium and a reinforced rim shape for a maximum system weight of up to 140 kg, additional loads are no problem. Whether it’s a Sunday ride or a multi-day tour: this rim can handle anything.

DT Swiss 533d Disc 29-inch rim specifications:

• ETRTO: 622 x 22, 29-inch
• ERD: 602 mm
• Aluminium rim, single-spoke

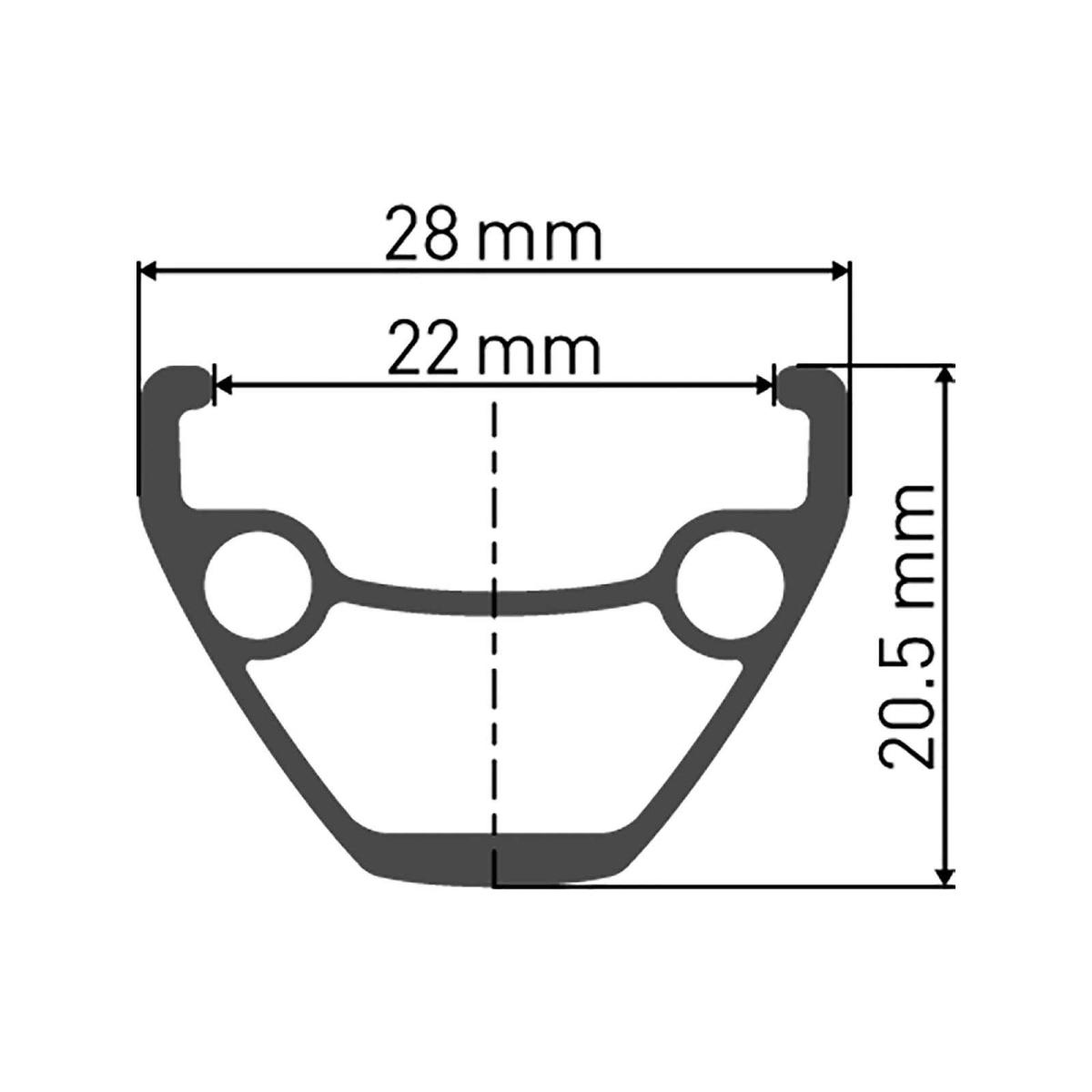

• Width: 22 mm (internal), 28 mm (external) Height: 20.5 mm
• Hooked / Crochet tubeless TC
• Maximum recommended tyre width 2.5
• Valve hole 6.5 mm
• Rim tape 622 x 25 mm
• Weight: 635 grams
• Max. system weight: 140 kg
• ASTM classification: 2
• Recommended for e-bikes (max. 32 km/h or max. 250 watts)

Your custom wheel with the DT Swiss U 533 rim.

Ask us for a personalised quote. We’ll build your dream wheel, perfectly hand-trued. We use only DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.

Hooked / Crotchet tubeless TC:

‘Hooked’ or ‘Crotchet’ refers to the shape of the rim flange, which features a so-called hook. This supports the tyre bead and ensures reliable performance, even when using high tyre pressure (> 5 bar). ‘Tubeless’ means that the rim can be ridden without an inner tube, although a setup with an inner tube is also possible.

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
