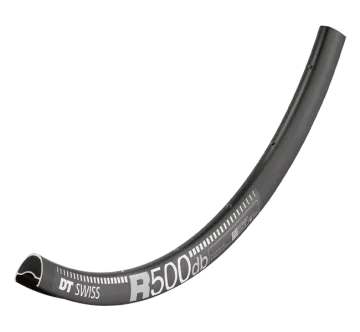

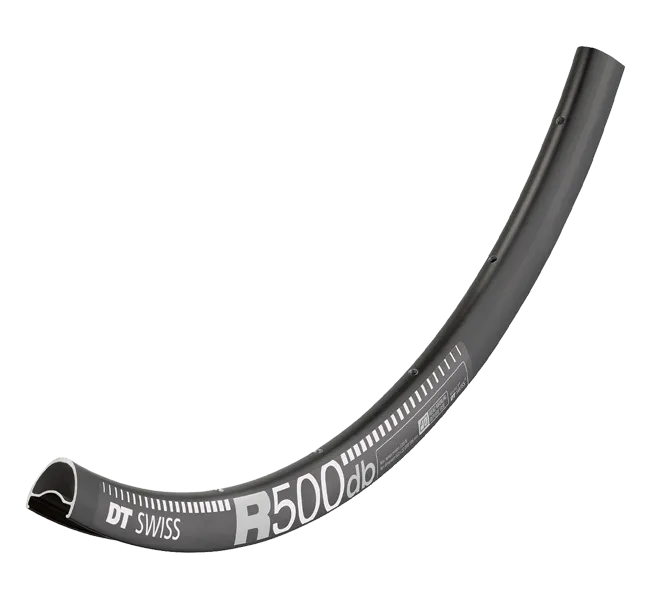

Cross Road / Gravel Rim DT Swiss R 500 DB

The sturdy, lightweight and affordable DT Swiss R 500 DB rim with a 22 mm rim width for cross-road and gravel use. Designed for disc brakes, the R 500 rim offers high strength and low weight. Well-finished, the DT Swiss R 500 offers excellent value for money. Recommended for riders/systems up to 130 kg. The reliable rim for everyday use and thousands of worry-free kilometres. The R 500 rim has been developed precisely for this purpose and delivers unbeatable value for money.

DT Swiss Sleeve Joint Technology:

The rim’s stability is ensured by the Sleeve Joint process, which is the best alternative to welding. This involves inserting the rim using a moulded part that is pressed evenly into the profile. This creates a stable and highly durable joint.

DT Swiss tubeless-ready rim:

The profiles of DT Swiss tubeless-ready rims are specially designed for tubeless use. They guarantee a perfect fit and make tyre installation as easy as possible. Nevertheless, it is always possible to use a conventional combination of tyre and inner tube. DT Swiss tubeless-ready rims offer further advantages over conventional rims. Thanks to the design of their cross-section, the tyre simply pops into place when inflated, meaning that in most cases only a standard floor pump is required. The sophisticated profile of DT Swiss rims also ensures a precise and secure fit for the tyre, even under tough riding conditions.

DT Swiss R 500 DB Rim Technology:

• Application: Road, Cross, Gravel
• Suitable for use with disc brakes only
• 28 inches, 700 C
• ETRTO 622 x 22
• ERD 596 mm
• Material: Aluminium EN AW-6061 T6
• Width 26 mm, height 23 mm, rim width 22 mm
• Maximum tyre width 25–50 mm
• Valve hole 6.5 mm
• Weight 495 grams
• Max. system weight 130 kg
• ASTM classification 2

Your custom wheel with the DT Swiss R 500 DB rim.

Ask us for a bespoke quote. We will build your dream wheel, perfectly hand-laced. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.
