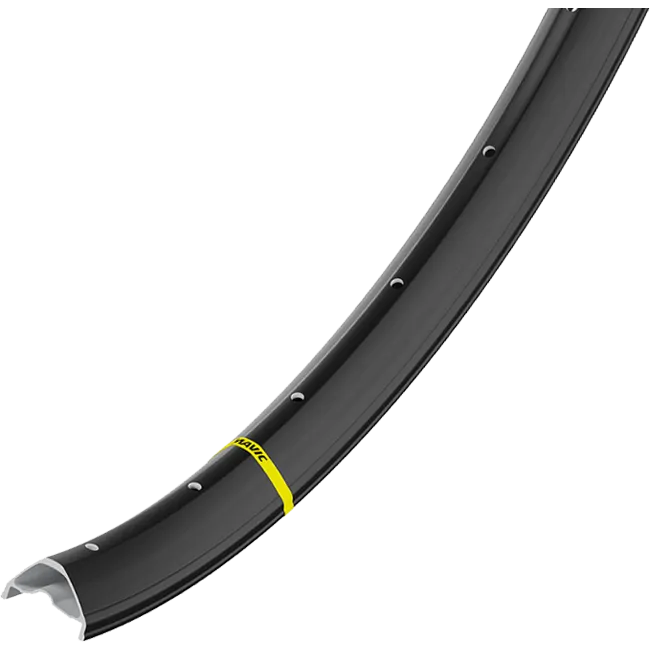

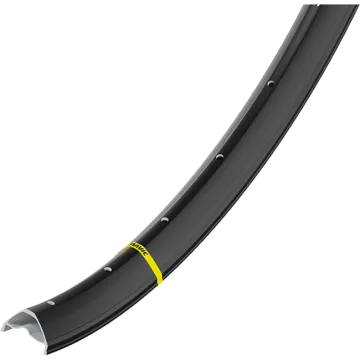

Mavic E-XM 430 Disc Rim

The e-bike rim, naturally also ideally suited for all-mountain trail and enduro use. Thanks to PFP puncture protection, 30 mm internal width, tubeless-optimised hookless rim flange, extra-reinforced rim bed and good weight-to-stability ratio, these rims are designed for particularly robust wheelsets.

Wide enough to accommodate tyres up to 3.0” in width, equipped with a reinforced rim bed for even greater durability, as well as a rim profile specifically designed to withstand the stresses of disc brakes – all of which makes the E-XM 430 the recommended choice for affordable and stable e-bike, trail, all-mountain and enduro wheelsets. Suitable for disc brakes only.

MAVIC E-XM 430 MTB rim dimensions:

• ETRTO 584 x 30c, 27.5 inches
• tubeless ready
• S6000 aluminium
• Suitable for disc brakes only
• black anodised
• Recommended tyre width: 2.1–3.0
• Offset 558 mm
• Rim dimensions: Inner: 30 mm, Outer: 32 mm, Height: 21.5 mm
• Required tubeless rim tape width: 35 mm
• Weight: 550 grams

Your custom wheel set with the Mavic E XM 430 rim.

Ask us for a bespoke quote. We will build your dream wheelset, perfectly hand-trued. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.
