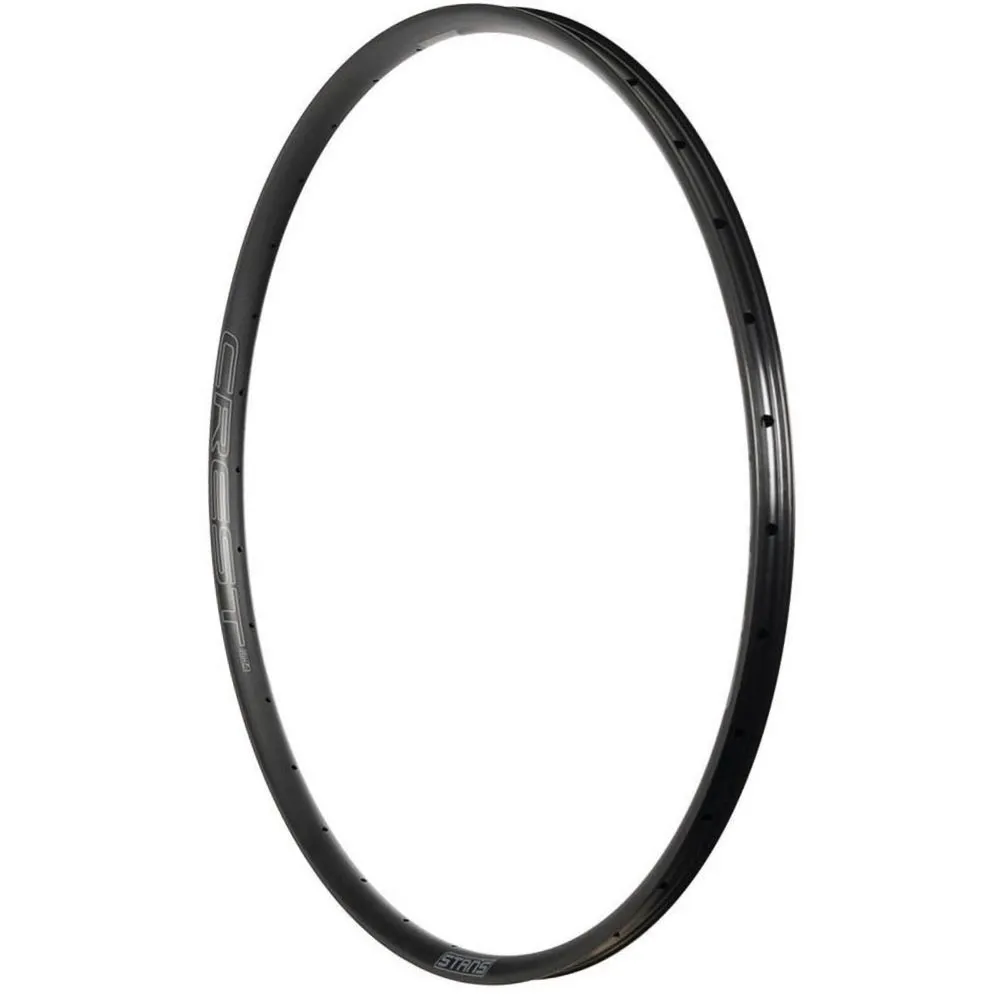

Stans NoTubes Crest MK4 rim

The Cross Country, Marathon and Gravel rims from Stans NoTubes: extremely lightweight at 357 grams, sturdy and with a 25 mm rim width, suitable for modern drivetrains with tyres up to 2.4.

The legendary Crest is now even better. With a wider rim width and the tried-and-tested low BST rim bed, the new Crest MK4 rim features a 25 mm rim width. Thanks to the WideRight System introduced by Stans NoTubes, the rim width increases to 25 millimetres, providing even better tyre support and full volume development. Inspired by Stans carbon rims, the new rim profile, combined with the new 6069 aluminium alloy, increases lateral stiffness and impact resistance whilst reducing the likelihood of snake bites.

Notubes BST

Notubes’ Bead Socket Technology. This special rim design features a wide rim bed with a low flange for high tyre stability and full tyre volume development. The BST technology helps retain air better in tubeless systems, resulting in less rotating mass and a virtually increased effective rim width compared to competitors. A wide rim also reduces tyre flex in corners and allows for lower tyre pressure. The ZTR rims are fully tubeless-compatible when used with rim tape and a valve.

Applications for the Stans NoTubes ZTR Crest rim:

The ZTR Crest rim forms the basis for a stable and very lightweight gravel, cross-country and marathon wheel

Stans NoTubes Crest MK4 rim specifications:

• 29 inches, ETRTO 622 x 25
• ERD: 601 mm
• Rim dimensions: External width 28.4 mm, internal width 25 mm, height 18 mm
• Black anodised
• Aluminium alloy
• Welded rim joint
• Weight: approx. 399 grams
• Suitable for rim brakes.
• Applications: Road, Cross Country, Gravel

Your custom wheel set with the Stans NoTubes ZTR Crest rim.

Ask us for a bespoke quote. We’ll build your dream wheelset, perfectly hand-laced. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.

Herstellerinformation: Stans NoTubes, 202 Daniel Zenker Dr., 14814 Big Flats, NY, United States, https://stans.com | EU contact: Hermann Hartje KG, Deichstr. 120-122, 27318 Hoya, Germany, https://hartje.de
