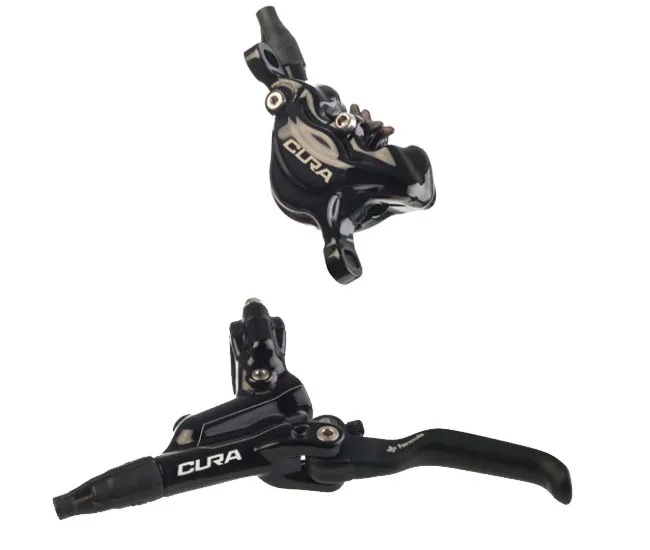

Formula Cura Disc Brake

The affordable Formula Cura disc brakes, designed for cross-country to enduro use, offering outstanding braking power and stability. Now available for front or rear wheel fitting with a 175 mm cable,

Formula Cura brake lever:

Newly designed brake lever with radial piston and large compensation reservoir for extremely high stability. The two-piece aluminium brake lever can be fitted in seconds and mounted on either the right or left side. The position of the bleed screws allows for filling and bleeding whilst the lever is fitted. The patented radial piston cylinder design in the brake lever enables a slim profile with a large oil reservoir. Handlebar clamps are available as an option in the Matchmaker version for direct mounting of SRAM Trigger shift levers.

Formula brake pads:

The extremely robust, semi-metallic brake pads guarantee maximum braking performance. The pads can be replaced without removing the disc.

Formula mineral oil brake fluid:

Formula uses mineral oil brake fluid for the Cura brakes.

Formula Cura applications:

Cross Country, All Mountain, Enduro to Downhill

Formula Cura disc brake technology:

• 24 mm round brake pistons
• Patented lever body with integrated high-capacity reservoir; bleeding possible without dismantling.
• Aluminium lever
• Brake caliper. Two-piston technology, oval piston made of aluminium.
• Post-mount caliper, adapters available for all disc sizes: 140, 160, 180 and 203 mm.
• Brake mounting: Postmount 6
• organic brake pads
• Brake hose: plastic reinforced with Kevlar
• Clamp: split
• Easy brake pad replacement without removing the disc.
• Brake line length 175 cm
• Weight 249 grams

Formula Cura brake package includes:

Formula Cura brake lever, Formula Curabrake caliper, 165 cm hoses. We supply the Formula Curabrakes fully pre-assembled, bled and, of course, with a full manufacturer’s warranty.

The Formula Cura disc brake is supplied with Post Mount 6 brake calipers.

The appropriate adapter for your frame and brake disc size is available separately. Currently, almost all frames use the IS 2000 standard.

IS 2000: Side mounting. An adapter is always required to fit the Formula CR3 brake; maximum 203 mm, minimum 160 mm on the fork and 140 mm disc size on the frame. Common on older suspension forks and almost all rear triangle frames

Post Mount, PM5: Direct mounting of the Formula CR3 brake with 140 mm brake discs without an adapter. Maximum 180 mm, minimum 140 mm disc size. Currently found only on rear triangle frames

Post Mount, PM6: Direct mounting of the Formula CR3 brake with 160 mm brake discs without an adapter. Maximum 203 mm, minimum 160 mm on the fork and 140 mm disc size on the frame. Currently the most common standard on forks, and on some rear triangle frames.

Post Mount, PM7: Direct mounting of the Formula CR3 brake with 180mm discs without an adapter. Maximum 203mm, minimum 180mm disc size. 140mm and 160mm disc sizes are not possible. Found on some enduro suspension forks such as the Magura Thor and on some rear triangle frames such as the Liteville 301.

Post Mount, PM8: Direct mounting without an adapter for the Formula CR3 brake with 203mm brake discs. Can only be used with 203mm brake discs. Found only on downhill suspension forks and frames

Herstellerinformation: Formula, Via Erbosa 63, 59100 Prato, Italy, https://www.rideformula.com
