Spare part for Deore XT and XTR

This spare part for the Deore XT BL M8000 brake lever corresponds to figure 9 in the exploded view.

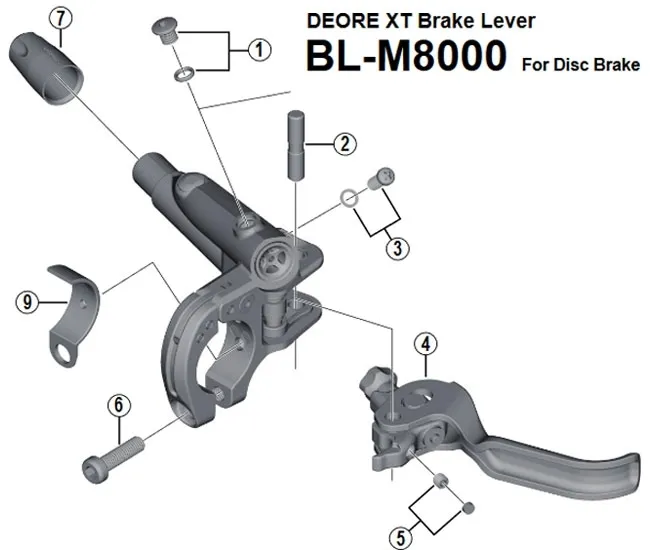

Shimano BL-M8000 brake lever spare parts

• No. 1: Y8V398010, Bleed Screw, M5 x 4.7, and O-ring
• No. 2: Y8VC05000, Lever Axle ø5
• No. 3: Y8VC98070, Stroke Adjust Screw and Shim, 0.3 mm
• No. 4: Y8MX98010, R.H. Lever Member Unit
• No. 4: Y8MX98020, L.H. Lever Member Unit
• No. 5: Y8V398040, Lever Axle Fixing Bolt and Cap
• No. 6: Y8VC10000, Clamp Bolt, M5 x 18
• No. 7: Y8WM14000, Cover
• No. 8: ESMDISCBP

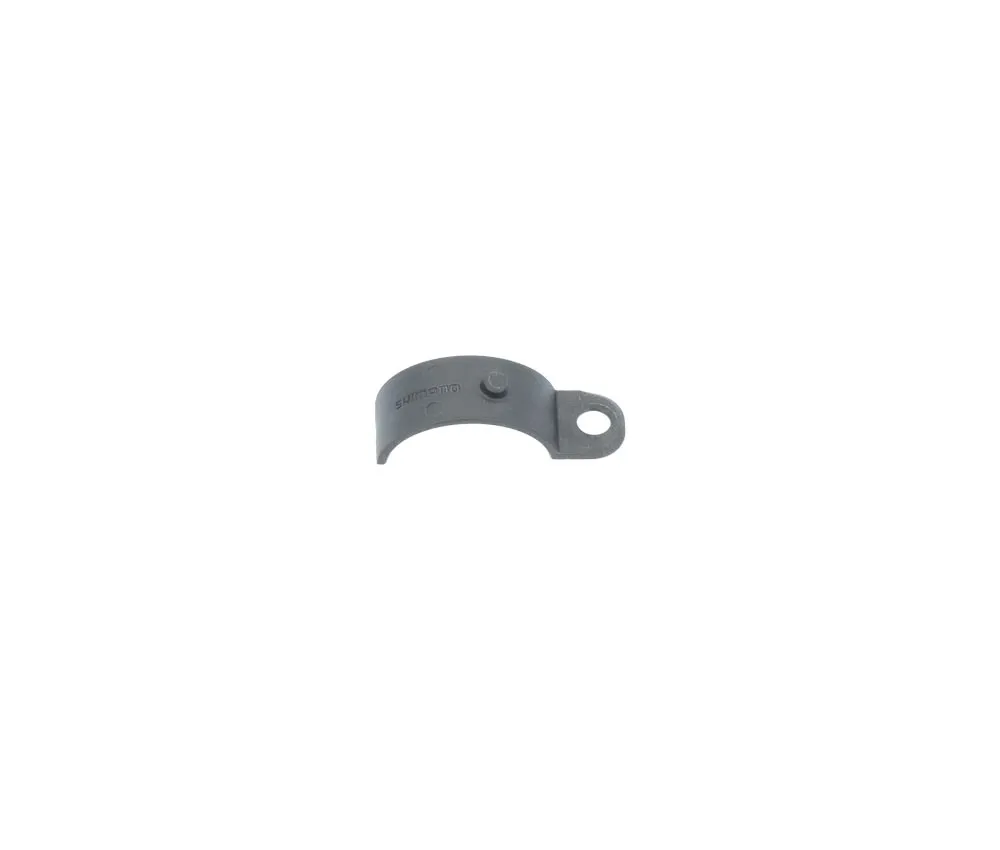

• No. 9: Y8WM05000, BL Cable Adapter

This spare part for the Deore XTR BL M8000 brake lever corresponds to figure No. 9 in the exploded view.

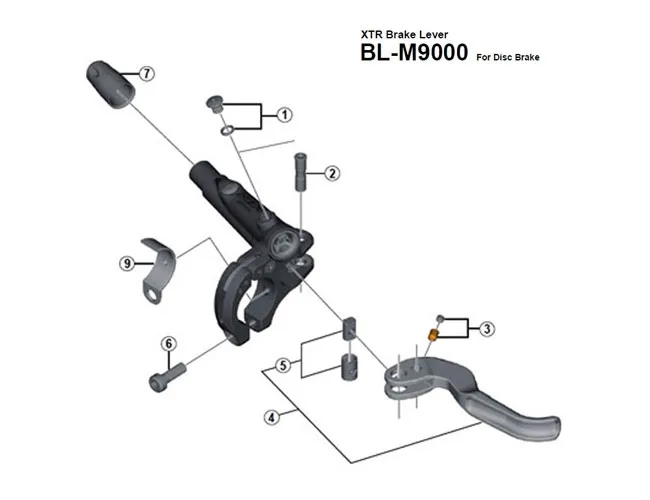

Shimano XTR BL M9000 brake lever spare parts:

• No. 1, Part No. Y8WC98010, Bleed Screw and O-ring
• No. 2, Part No. Y8WM17000, Lever Axle
• No. 3, Part No. Y8V298010, Lever Axle Fixing Bolt and Cap
• No. 4, Part No. Y8WM98010, Right Lever Member Unit
• No. 4, Part No. Y8WM98020 Left Lever Member Unit
• No. 5, Part No. Y8WC98030 Adjustment Boss and Boss Sleeve
• No. 6, Item No. Y8WC08000 Clamp Bolt
• No. 7, Item No. Y8WM14000 Hose Cover
• No. 8, Item No. ESMDISCBP Funnel and Oil Stopper
• No. 9, Item No. Y8WM05000 BL Band Adapter
