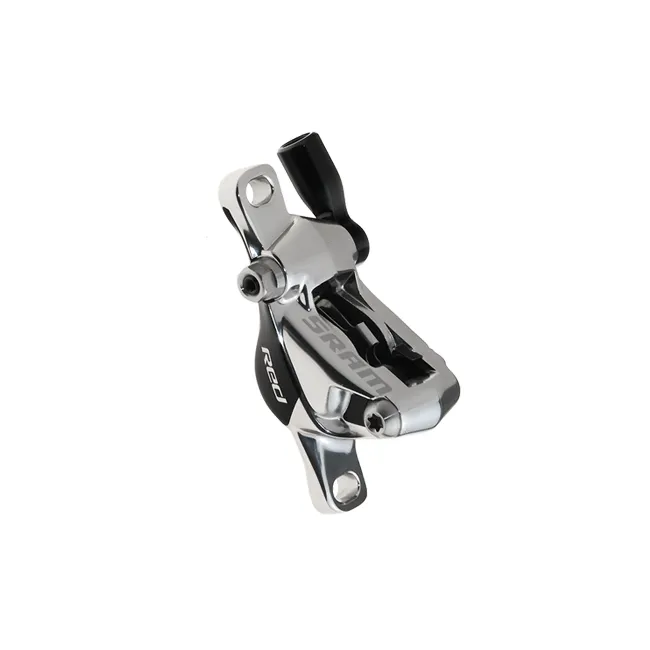

Sram Red 22 HRD Disc Brake Caliper

The fully hydraulic Sram Red 22 HRD Disc brake caliper is suitable for all road, cyclocross and gravel applications. The brake caliper can be fitted to the front or rear wheel.

Sram Red brake caliper technology:

• Post Mount installation
• 0-degree banjo hose connection
• Compatible brake hose Part No: 00.5318.011.001
• Compatible disc pads: Part No: 00.5318.010.002, 00.5318.010.003, 00.5318.010.004
• Compatible with all hydraulic Sram HRD disc brake levers and HRR rim brake levers
• Must only be used with DOT brake fluid.

Included in delivery:

• 1 x SRAM Red 22 HRD disc brake caliper (two-piece), without brake hose and adapter
• 2 x organic brake pads including spring

Post Mount caliper standard:

The standard Post Mount brake caliper was originally developed for MTB disc brakes, but is also found on older road and gravel bikes with disc brake mounts. The bolt spacing for mounting the calipers is 74 mm. These calipers can be mounted directly depending on the frame/fork mount. An adapter is required for larger discs and/or IS2000 mounts.

IS 2000:
Side-mounted. An adapter is always required to fit the brake caliper; 160 mm on the fork and 140–160 mm disc size on the frame. Found on older forks and rear triangle frames

Post Mount, PM5:
Direct mounting of the brake caliper without an adapter for 140 mm brake discs. Maximum 160 mm, minimum 140 mm disc size.

Post Mount, PM6:
Direct mounting of the brake caliper without an adapter for 160 mm brake discs. Maximum 160 mm, minimum 160 mm on the fork and frame.
