Spare part Ultegra BR 6800

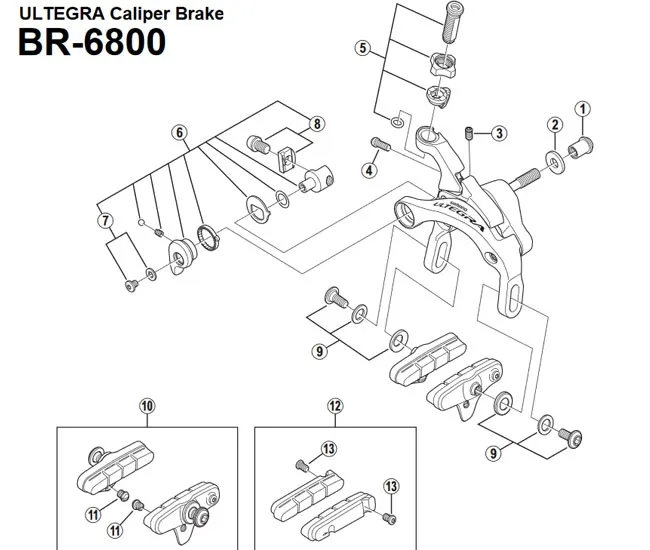

This spare part for the Ultegra BR 6800 road bike brake corresponds to figure 8 in the exploded view.

Shimano BR-6800 Brake Spare Parts

• No. 1: Y8G615000, Pivot Nut, 10.5 mm, for Front / Rear
• No. 1: Y8G615010, Pivot Nut, 12.5 mm, for Front
• No. 1: Y85574310, Pivot Nut, 18.0 mm, for Front
• No. 1: Y8A023200, Pivot Nut, 27.0 mm, for Front
• No. 1: Y8A023210, Pivot Nut, 32.0 mm, for Front
• No. 2: Y85850120, Washer, 2 mm
• No. 3: Y8BW11100, Spring Adjusting Bolt
• No. 4: Y8FA0900, EC bolt, M4 x 10.2
• No. 5: Y8L298010, Cable Adjusting Bolt Unit
• No. 6: Y8LA98010, Quick Release Assembly
• No. 7: Y8FA98110, Quick Release Fixing Bolt, M4 x 4.8, and Washer
• No. 8: Y8LA98020, Cable Fixing Bolt and Plate
• No. 9: Y8G698090, Shö Fixing Bolt Unit, M5 x 11.2
• No. 10: Y8LA98030, R55C4 Cartridge-Type Brake Shoe Set, Pair
• No. 11: Y8FA16000, Tyre Guide
• No. 12: Y8L298060, R55C4 Cartridge-Type Brake Pads and Fixing Bolts, Pair
• No. 12: Y8L298070, R55C4 Cartridge-Type Brake Pads and Fixing Bolts, Pair, for Carbon Rim
• No. 12: Y8L398030, R55C4-1 Cartridge-Type Brake Pads, -1 mm thinner pad, and Fixing Bolts, Pair, for Carbon Rim
• No. 13: Y8L227000, Fixing Bolt, M4 x 5.5
