Spare part Ultegra CS-6700

Compatible with the Ultegra CS 6700, CS 6600 and 105 CS 5600 10-speed cassettes.

Shimano manufactures its own sprockets with different shift patterns for almost every cassette configuration. Therefore, the replacement sprockets and sprocket blocks are only perfectly matched to one another in the specified configuration. If you mix sprockets from different configurations, shifting performance may deteriorate significantly.

You can order the replacement sprockets listed below using the respective item numbers in our webshop.

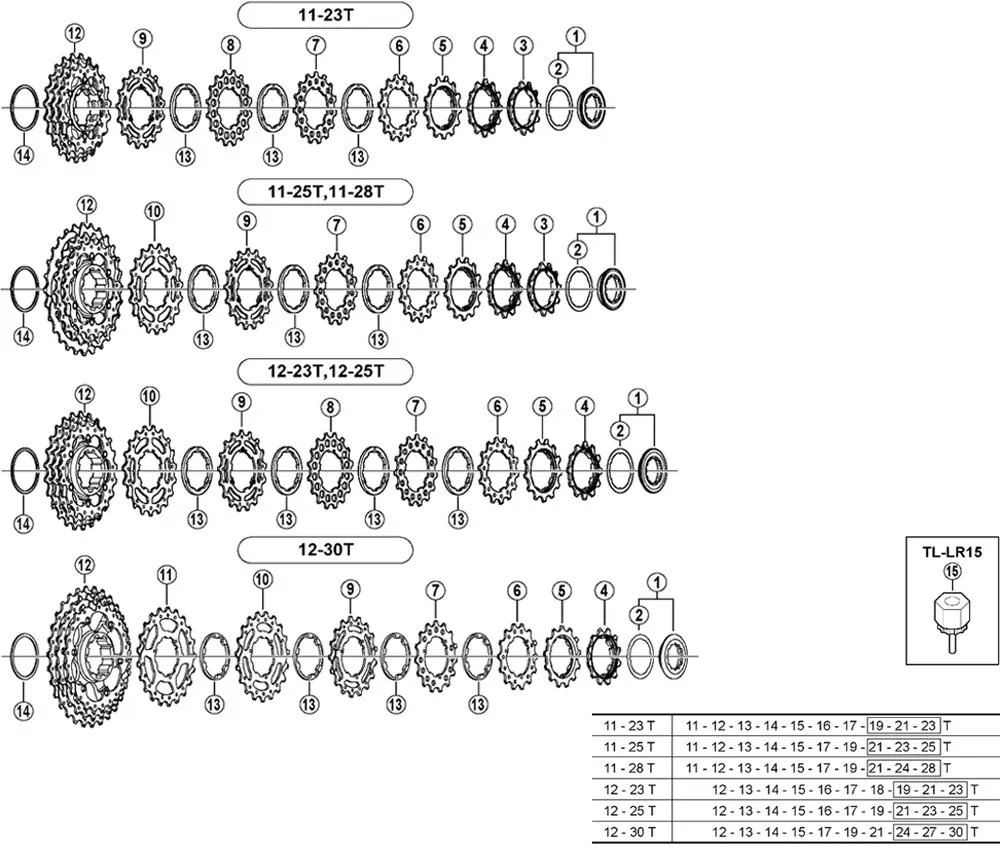

Shimano CS 6700 cassettes, sprockets, spacer rings, sprocket sets:

• No. 1, Item No.: Y1YX98010, Lockring with washer for 11-tooth end sprocket
• No. 1, Item No.: Y1YX98020, Lockring with spacer for 12-tooth end sprocket
• No. 2, Item No.: Y10Z04000, Washer for lockring
• No. 3, Item No.: Y1Z81100D, end pinion 11 teeth
• No. 4, Item No.: Y1Z81200D, 12-tooth end sprocket
• No. 5, Item No.: Y1Z81300D, 13-tooth sprocket with spacer ring for 11-23, 11-25, 11-28, 12-23, 12-25 cassettes
• No. 5, Item No.: Y1ZD1390D, 13-tooth sprocket with spacer ring for 12-30 cassette SOLD OUT
• No. 6, Item No.: Y1Z81400D, 14-tooth sprocket
• No. 7, Item No.: Y1Z81500D, 15-tooth sprocket
• No. 8, Item No.: Y1Z81600D, 16-tooth sprocket
• No. 9, Item No.: Y1ZD1700E, 17-tooth sprocket for 11-23, 12-23, 12-25 cassette
• No. 9, Item No.: Y1YX1700D, 17-tooth sprocket for 11-25, 11-28, 12-30 cassettes
• No. 10, Item No.: Y1ZD1800E, 18-tooth sprocket for 12-23 cassette
• No. 10, Item No.: Y1YX1900D, 19-tooth sprocket for 11-25, 11-28, 12-30 cassettes
• No. 10, Item No.: Y1ZD1900E, 19-tooth sprocket for 12-25 cassette
• No. 11, Item No.: Y1YF21100, 21-tooth sprocket
• No. 12, Item No.: Y1YX98030, sprocket unit 19-21-23 teeth for 11-23 cassette
• No. 12, Item No.: Y1YX98040, sprocket set 19-21-23 teeth for 12-23 cassette
• No. 12, Item No.: Y1YX98050, sprocket set 21-23-25 teeth for 11-25, 12-25 cassette
• No. 12, Item No.: Y1YX98060, sprocket set 21-24-28 teeth for 11-28 cassette
• No. 12, Item No.: Y1YX98070, sprocket set 24-27-30 teeth for 12-30 cassette
• No. 13, Item No.: Y1Z805000, Spacer ring 2.35 mm
• No. 14, Item No.: Y1Z807000, spacer ring 1.0 mm

Herstellerinformation: SHIMANO INC., 3-77 Oimatsu-cho, Sakai-ku, Sakai-shi, Osaka 590-8577, Japan, www.shimano.com | EU contact: Shimano Europe BV, High Tech Campus 92, 5656 AG Eindhoven, The Netherlands, www.shimano.com
