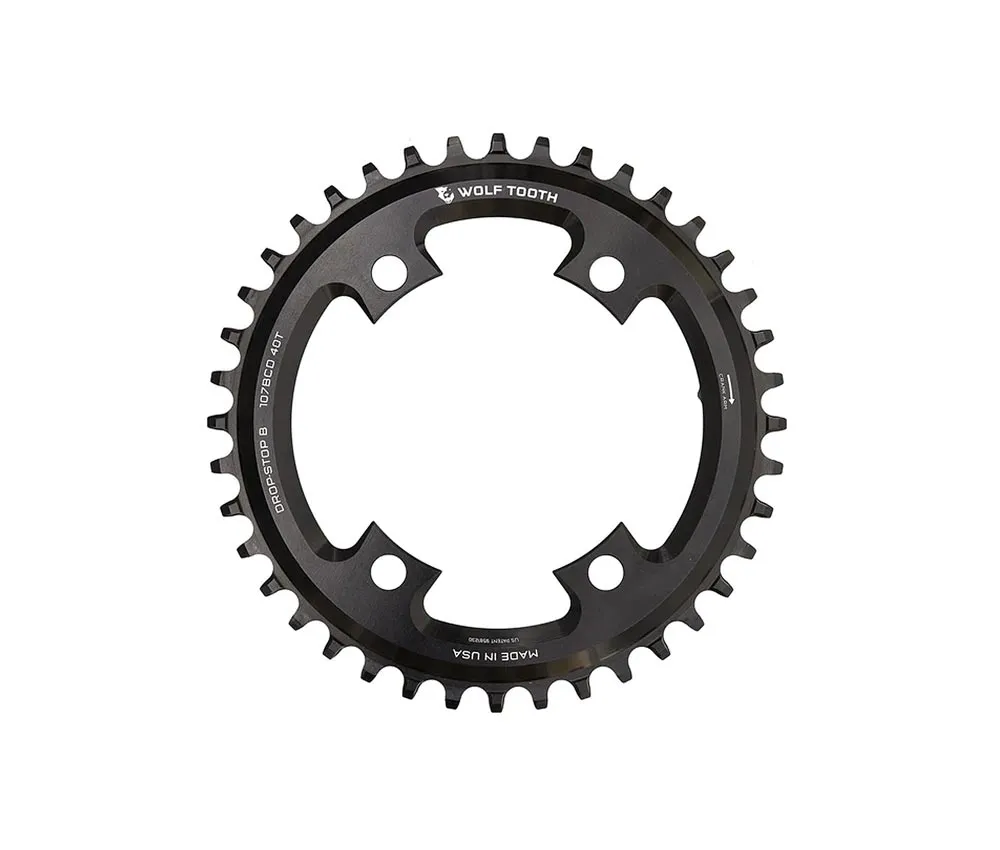

Wolf Tooth Drop Stop B Chainring

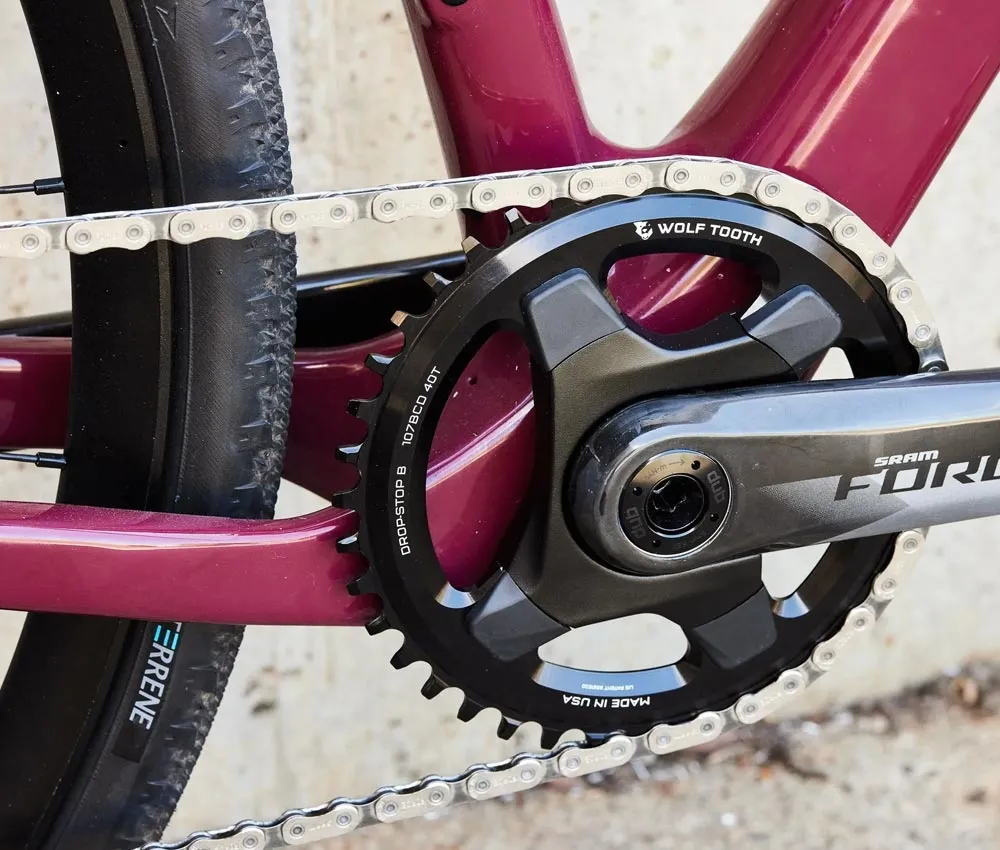

This single-chainring has been specially developed for Sram Red, Force, Force 1 cranksets and AXS power meters with an asymmetrical 107 mm bolt pattern. This allows existing chainring combinations to be converted to a single-chainring drivetrain, saving weight and creating a clean, uncluttered look. The chainring is made from high-strength 7075 T6 aluminium, making it particularly durable and lightweight. It is compatible with all 9-11-speed chains from all manufacturers and 12-speed chains from Sram, Campagnolo, KMC, Connex and Wipperman.

Wolf Tooth Drop Stop B technology:

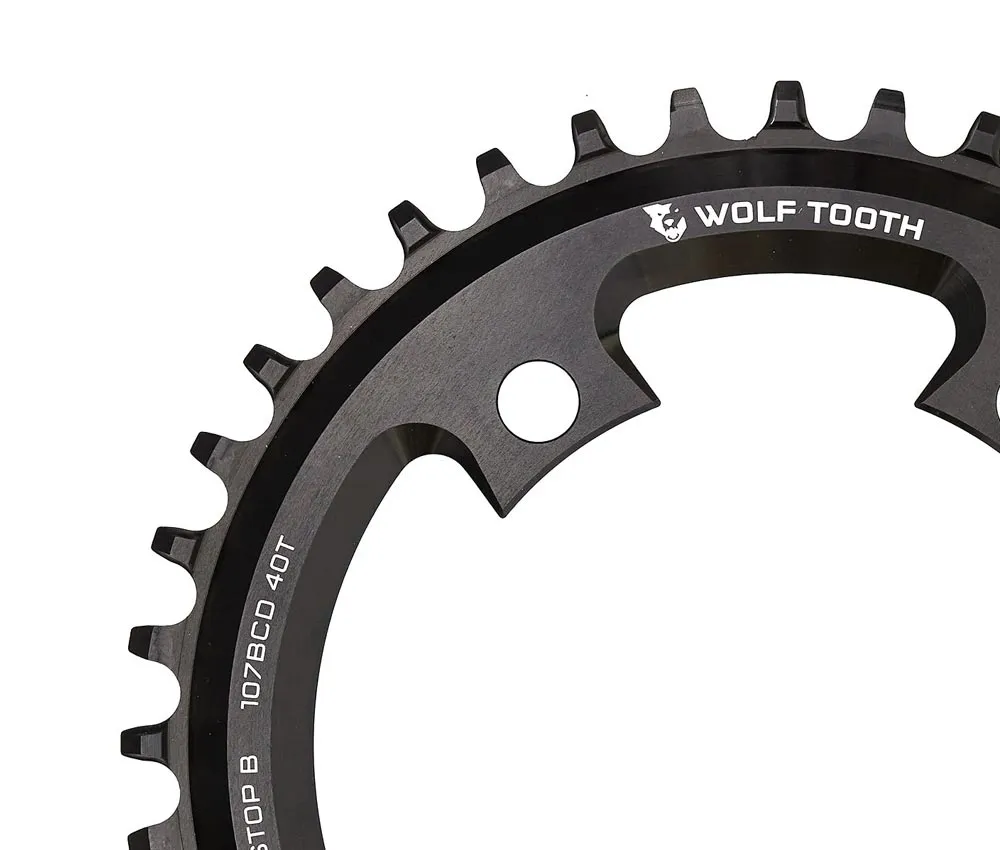

Wolf Tooth’s patented Drop Stop B narrow-wide tooth profile offers the ultimate in chain guidance and self-cleaning. The right-hand side of the tooth is as wide as possible to maximise the contact area with the chain. More contact surface means that the load is distributed over a larger area, which in turn reduces wear. The left side of the tooth is narrower than the chain’s roller pin, so Wolf Tooth has removed additional material to create a channel allowing dirt to drain away. More contact surface and space, in turn, means a lower likelihood of the chain falling off whilst riding through dirt.

Wolf Tooth Drop Stop B Chainring Technology:

• Applications: Road, Gravel, Cyclo-cross, Cross-country
• Material: 7075 T6 aluminium
• Bore diameter: 107 mm asymmetrical
• Mounting: 4-hole / 4-arm
• Chainline: Depends on crankset / power meter
• Weight: 79 grams (manufacturer’s specification)
• Compatibility: Sram Red FC-RED-1-D1, Force FC-FRC-D1 / AXS power metres PM-FRC-D1, Force 1 FC-FRC-1-D1 / AXS power metres PM-FRC-1-D1
• Compatibility: all 9-11-speed chains from all manufacturers
• Compatibility: all 12-speed chains: Sram Flattop, Sram Eagle, Campagnolo, KMC, Connex, Wippermann
• Not compatible: 12-speed Shimano HG+ chains

Contents:

• 1x Wolf Tooth chainring without chainring bolts
