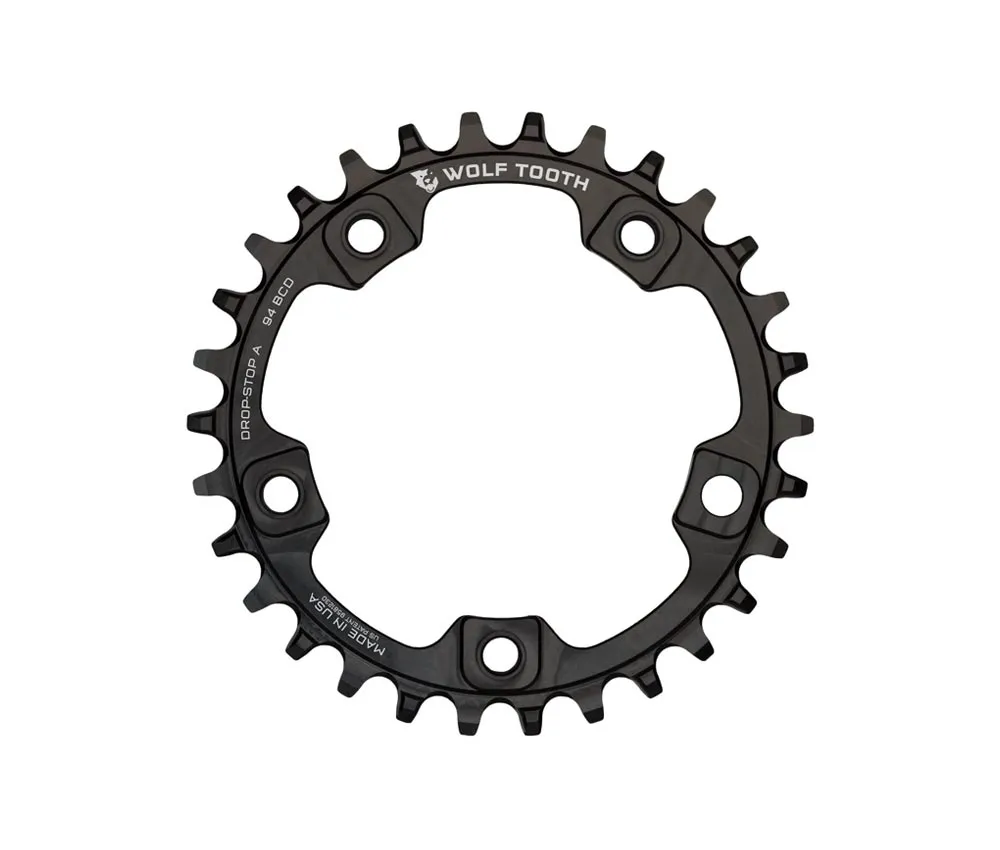

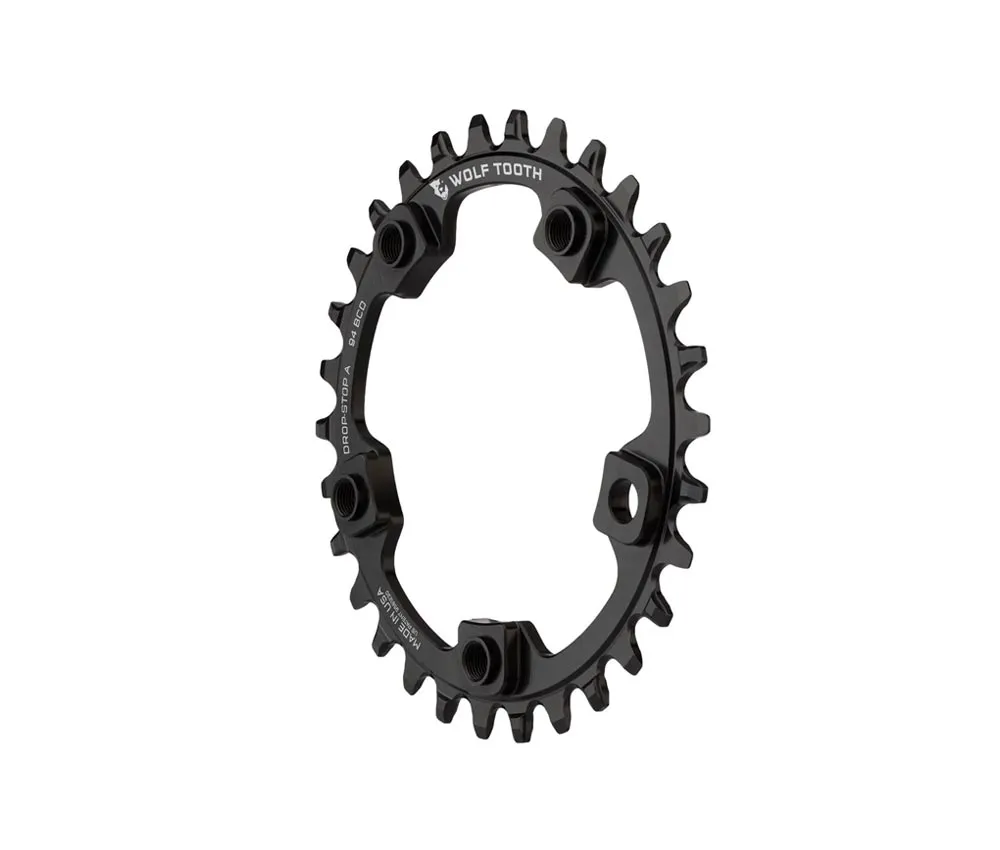

Wolf Tooth Drop Stop A Chainring

This single-chainring has been specially developed for converting vintage and Surley OD cranksets with a symmetrical 94 mm bolt circle. This allows existing chainring combinations to be converted to a single-chainring drivetrain, saving weight and creating a clean, uncluttered look. The chainring is made from high-strength 7075 T6 aluminium, making it particularly durable and lightweight. It is compatible with all 9-11-speed chains from all manufacturers and 12-speed chains from SRAM Eagle, KMC, Connex and Wipperman. For non-Hidden Bolt mounting, the chainring hole must be enlarged using a 10 mm drill bit

Wolf Tooth Drop Stop A technology:

Wolf Tooth’s patented Drop Stop A narrow-wide tooth profile offers the ultimate in chain guidance and self-cleaning. The right-hand side of the tooth is as wide as possible to maximise the contact area with the chain. More contact area means that the load is distributed over a larger surface, which in turn reduces wear. The left side of the tooth is narrower than the chain’s roller pin, so Wolf Tooth has removed excess material to create a channel allowing dirt to drain away. More contact area and space, in turn, means a lower likelihood of the chain dropping off due to dirt whilst riding.

Wolf Tooth Drop Stop A Chainring Technology:

• Applications: Road, Gravel, Cyclo-Cross, Cross Country, All Mountain
• Material: 7075 T6 hardened aluminium
• Bore: 94 mm symmetrical
• Mounting: 5-bolt / 5-arm
• Chainline: depends on crank
• Weight: 37 grams (manufacturer’s specification)
• Compatibility: all Vintage / Surley OD cranks
• For non-Hidden Bolt mountings, the chainring hole must be enlarged using a 10 mm drill bit
• Compatibility: all 9-11-speed chains from all manufacturers
• Compatibility: all 12-speed chains (Sram Eagle, KMC, Connex, Wipperman)
• Not compatible: 12-speed chains (SRAM Flattop, Shimano HG+, Campagnolo)

Included:

• 1x Wolf Tooth chainring without chainring bolts

Herstellerinformation: Wolftooth, 3100 West Park Drive, 55306 Burnsville, Minnesota, United States, https://wolftoothcomponents.com | Contact EU Cosmic Sports GmbH Leyher Strasse 47, 90763 Fürth, Germany, https://cosmicsports.de
