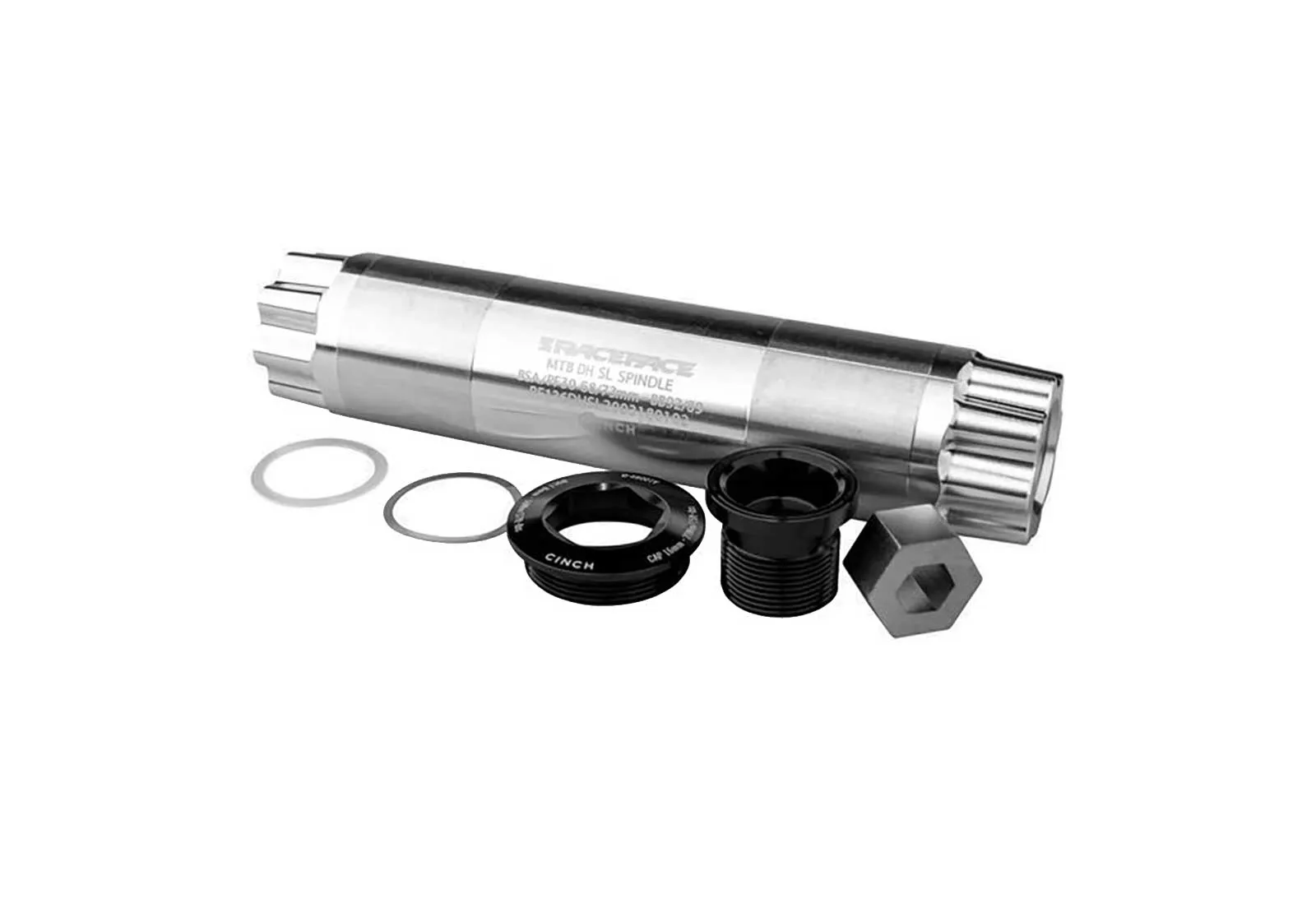

Race Face Cinch DH Crank Axle Spare Part RF151DH

This axle kit allows the Face Cinch 30 DH cranks to be swapped or converted to a different axle length. Available for bottom bracket shell widths of 68/73 mm, 83 mm and 100 mm

Compatible with Sicx and Atlas cranks

Compatible with BSA bottom bracket shells – 68/73 mm, BB30 – 73 mm, Pressfit 92 – 86.5–92 mm and Pressfit 30 – 73 mm.

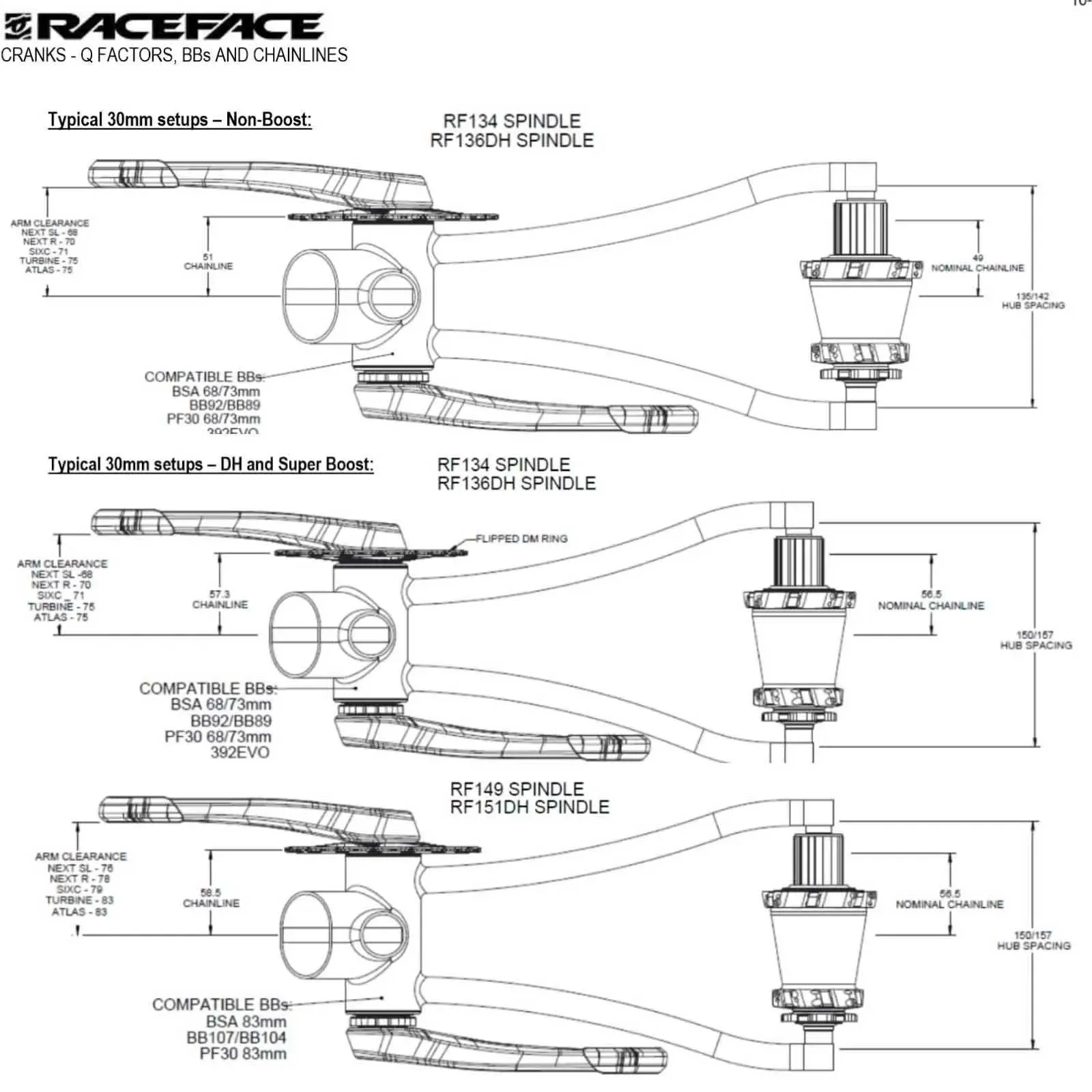

• 136 mm spindle / crank axle, 178 mm Q-factor, 52/57.5 mm chainline for standard bottom bracket shells, item no. F30047 / RF136DH
• 151mm spindle / crank axle, 193mm Q-factor, 58.5mm chainline for 83mm DH bottom bracket shells, Item No. F30048 / RF151DH

Race Face fits the XC axles on the Era, Next, Turbine, Affect and Ride models. These are not compatible with the DH axles

Herstellerinformation: Race Face, 6634 Highway 53, 30517 Braselton, Georgia, United States, https://raceface.com | EU contact: FOX Factory GmbH, Gewerbepark 6, 66989 Höhfröschen, Germany, https://www.foxracingshox.de/
