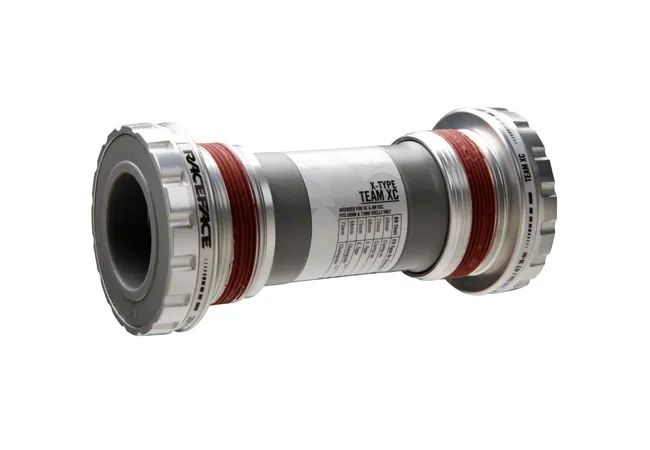

Race Face Team Bottom Bracket
The Race Face Team X-Type bottom bracket, the bottom bracket for cross-country and all-mountain riding. High-strength forged and CNC-machined bearing cups house the double-sealed deep-groove ball bearings in a full-ball configuration. Thanks to the external cups, the balls used can be 35 per cent larger and are 100 per cent more durable than conventional bearings.
Race Face X-Type 24 mm crankset axle:
The Race Face X-Type crankset features a through-axle of 24 mm, just like the Shimano Hollowtech II cranks. The X-Type MTB cranks for 73 mm and 68 mm bottom bracket shells have an axle length of 120 mm. The cranks for 83 mm bottom bracket shells have an axle length of 136 mm. This axle system is also used on FSA MegaExo cranks. The respective bottom brackets are compatible with one another.
BSA threaded bottom bracket shells
BSA bottom bracket shells have a width of 68–73 mm and a thread of 1.370 inches × 24, with an outer diameter of 34.8 mm, into which the bearing cups are screwed. Both bearing cups are screwed in the direction of travel.
Race Face Team bottom bracket technology
- Application: Cross Country to Enduro
- 7075 aluminium bearing cups
- Full-contact deep-groove ball bearings
- Suitable for 68 and 73 BSA bottom bracket shells, also for E-type derailleurs
- Weight 95 grams
- Also compatible with Shimano Hollotech II cranks
