Shimano Deore XT FC Crankset - M8120 - 1

The new Shimano XT 12-speed components, designed for use ranging from cross-country to enduro. The XT components designated 8100 are designed for 1x12 and 1x12-speed drivetrains. The legendary durability and performance of XT MTB parts is now also available in 12-speed. The new Deore XT M8100 series boasts a host of technical highlights, including Shimano’s groundbreaking 12-speed Micro Spline cassettes, available with a range of 10-45T or 10-51T, 1x12- or 2x12-speed Hollowtech II cranksets, powerful two- and four-piston brakes, I-Spec EV shifters, high-precision 12-speed rear derailleurs and front derailleurs, Ice Tech Frezza brake discs with their outstanding heat dissipation, as well as the WH-M8100 and WH-M8120 wheelsets for XC and enduro use.

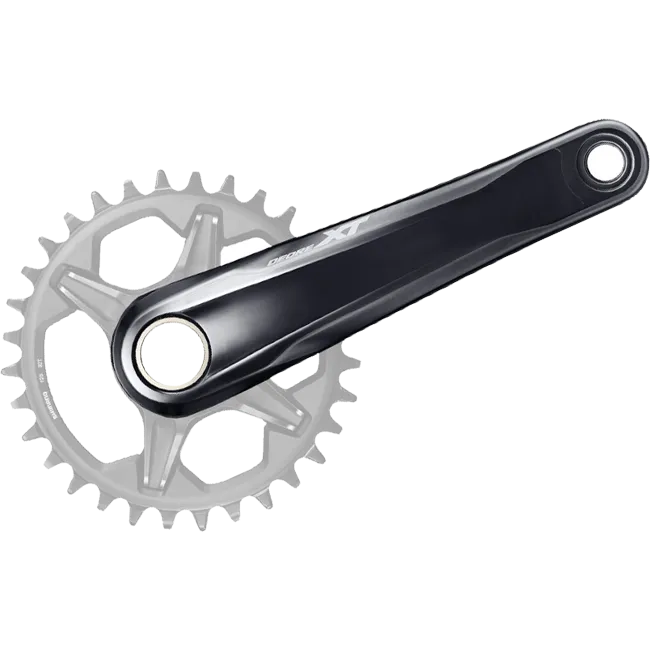

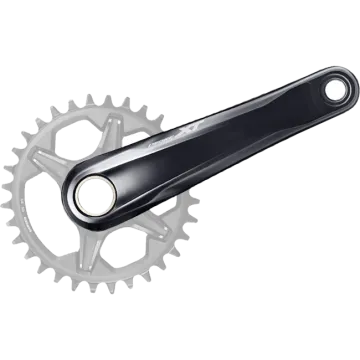

Shimano XT crankset FC-M8120

The new Deore XT 1x12-speed crankset features – naturally – Shimano’s world-renowned Holowtech II technology, amongst other things. For the chainrings, DYNAMIC CHAIN ENGAGEMENT+ technology, with its alternating wider and narrower teeth and specially precision-machined tooth profile, ensures that the chain is held securely on the chainring at the top, but is released just as easily, smoothly and quietly at the bottom as it runs down, guaranteeing both safety and efficiency. Thanks to the Direct-Mount attachment, the chainrings can also be fitted quickly and easily, allowing them to be swapped out rapidly for different riding scenarios. With 28, 30, 32, 34 and 36 teeth, there are five chainring options available for every terrain and every fitness level. The crankset is available in lengths of 165 mm, 170 mm, 175 mm and 180 mm, as well as in three versions: FC-M8100-1 for a 52 mm chainline; 172 mm Q-factor and mounting widths of 142 and 148 mm, FC-M8120-1 for a 55 mm chainline, 178 mm Q-factor and 148 mm O.L.D., and the Super Boost variant FC-M8130-1 for a 56.5 mm chainline, 181 mm Q-factor and 157 mm O.L.D.

Shimano Direct Mount chainring mount:

The new XT 1x12-speed cranksets now also feature the Shimano Direct Mount chainring mount. This allows the chainrings to be easily changed. The TL-FC41 tool is required for removing and fitting the chainring. The XT SMCRM85 and XTR SMCR95 chainrings can be used

Shimano XT FCM 8120 crankset with Boost technology:

• Hollow-forged aluminium crank arms
• 24 mm Hollowtech II steel axle
• Chainring / spider mount: Shimano Direct Mount
• Boost chainline 55 mm
• Q-factor 178 mm
• Weight approx.: 620 grams with 32-tooth chainring, manufacturer’s specification

Contents: XT Boost crankset arms FCM8120:

Shimano XT FC M8120 Boost crank arms, right and left, crank bolt

Compatible bottom bracket shell / bottom bracket:

• BSA thread: BC - 1.37 x 24T, bottom bracket width 68–73 mm, Shimano BBMT800B bottom bracket
• Pressfit 92: Press-fit diameter 41 mm, bottom bracket width 89.5–92 mm, Shimano BBMT800PA bottom bracket
• BB30 OS: Press-fit diameter 42 mm, bottom bracket width 84.5 mm, Shimano SMBB9142A bottom bracket
• BB30: Press-fit depth 42 mm, bottom bracket width 68–73 mm, compatible bottom bracket cups
  Wheels Outboard Item No.: BB30-OUT
• BB30A: Press-fit depth 42 mm, bottom bracket width 73 mm asymmetrical, compatible bottom brackets:
  Wheels Outboard Item No.: BB30A-OUT-SHIM
• Pressfit 30: Press-fit diameter 46 mm, bottom bracket width 68–73 mm, compatible bottom brackets:
  Wheels Outboard Item No.: PF30-OUT
• Pressfit 30A: Press fit 46 mm, bottom bracket width 73 mm asymmetrical, compatible bottom brackets:
  Wheels Outboard Item No.: PF30A-OUT-SHIM
• BBright: Press fit 46 mm, bottom bracket width 79 mm, compatible bottom brackets:
  Wheels Outboard Item No.: BBRIGHT-OUT-1
• 386EVO: Press fit 46 mm, bottom bracket width 86.5 mm, compatible bottom brackets:
  Wheels Outboard Item No.: 386EVOBB-SHIMAC
• Trek BB90/95 press-fit 37 mm, bottom bracket width 90/95 mm, compatible bottom brackets:
  Wheels replacement bearings Part No: SB-24X37 plus seals and spacers Part No: SHIM-SPACER-PK
• T47 thread: M47x1, bottom bracket width 68–132 mm, compatible bottom brackets:
  Wheels Outboard Part No: T47-BB-SHIM-AC
