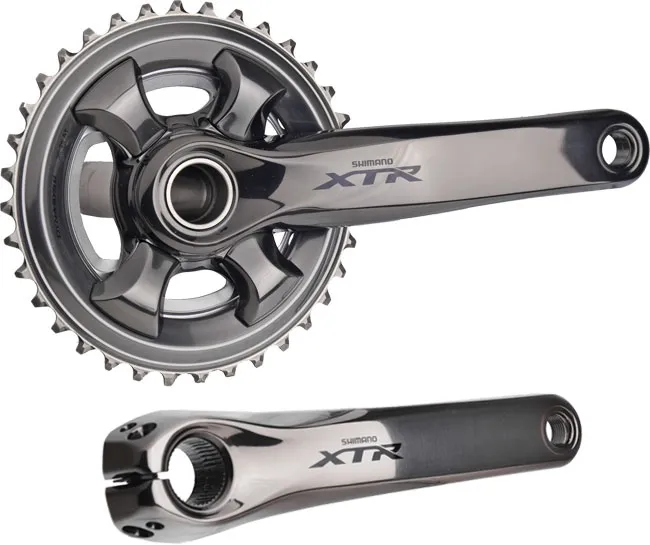

Shimano XTR FC Crankset - M9020

The high-end trail and enduro crankset with a large titanium and carbon chainring and, of course, hollow-forged cranks, the crankset of choice for MTB pros. The Shimano XTR crankset FCM 9020 in the double version for 11-speed drivetrains.

Thanks to the modular chainring mount, the XTR cranksets can be easily converted into a single, double or triple crankset. All that is required are the necessary chainrings and chainring bolts.

The chainring spacing, with a 10-tooth difference, is perfectly matched to the 11-speed XTR CSM9000 and XT CSM8000 cassettes and offers optimal gear ratios.

Shimano XTR FCM 9000/9020 chainrings

Shimano manufactures its own chainrings for the XTR cranksets. These are not compatible with the XT cranksets, which have the same asymmetrical bolt pattern, as the chainring mount is positioned further out.The SMCRM90/SMCRM91 single chainrings and the heavy-duty middle and large chainrings sit on a carbon carrier, whilst the teeth themselves are made of titanium. This ensures a significantly longer service life for the chainrings. The small chainring is made of 7075 aluminium.

Shimano XTR crankset FC - M9020 Technology:

• Hollow-forged aluminium crank arms
• Aluminium/carbon/titanium chainrings
• 24 mm Hollowtech II steel axle
• 96/64 asymmetric bolt pattern
• Chainline 48 mm
• Q-factor 168 mm
• Weight with bottom bracket: 651 grams

Contents of delivery XTR crankset FCM9020:

Shimano XTR FC - M9020 crank arms, right and left, chainrings, chainring bolts

Compatible bottom bracket shells / bottom brackets:

• BSA thread: BC - 1.37 x 24T, bottom bracket width 68 - 73 mm, Shimano SMBB94 bottom bracket
• Pressfit 92: Press-fit diameter 41 mm, bottom bracket width 89.5–92 mm, Shimano SMBB9441A bottom bracket
• BB30 OS: Press-fit diameter 42 mm, bottom bracket width 84.5 mm, Shimano SMBB9142A bottom bracket
• BB30: Press-fit depth 42 mm, bottom bracket width 68–73 mm, compatible bottom brackets:
  Wheels BB30 Outboard Part No: BB30 - OUT or Race Face BB30 X Type Adapter Part No 2020030620
• Pressfit 30: Press-fit diameter 46 mm, bottom bracket width 68–73 mm, compatible bottom brackets:
  Wheels Pressfit30 Outboard Part No: PF30 - OUT or Race Face Pressfit 30 X Type Adapter Part No 2020030630
