Shimano XTR FC Crankset - M9220

Designed for enduro and all-mountain use, the new XTR crankset features a reinforced Hollowtech II axle.

Included

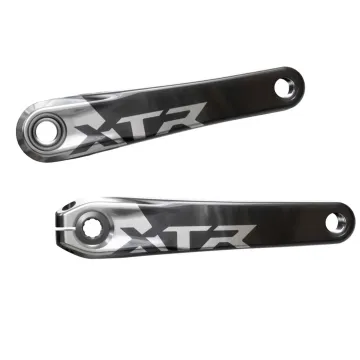

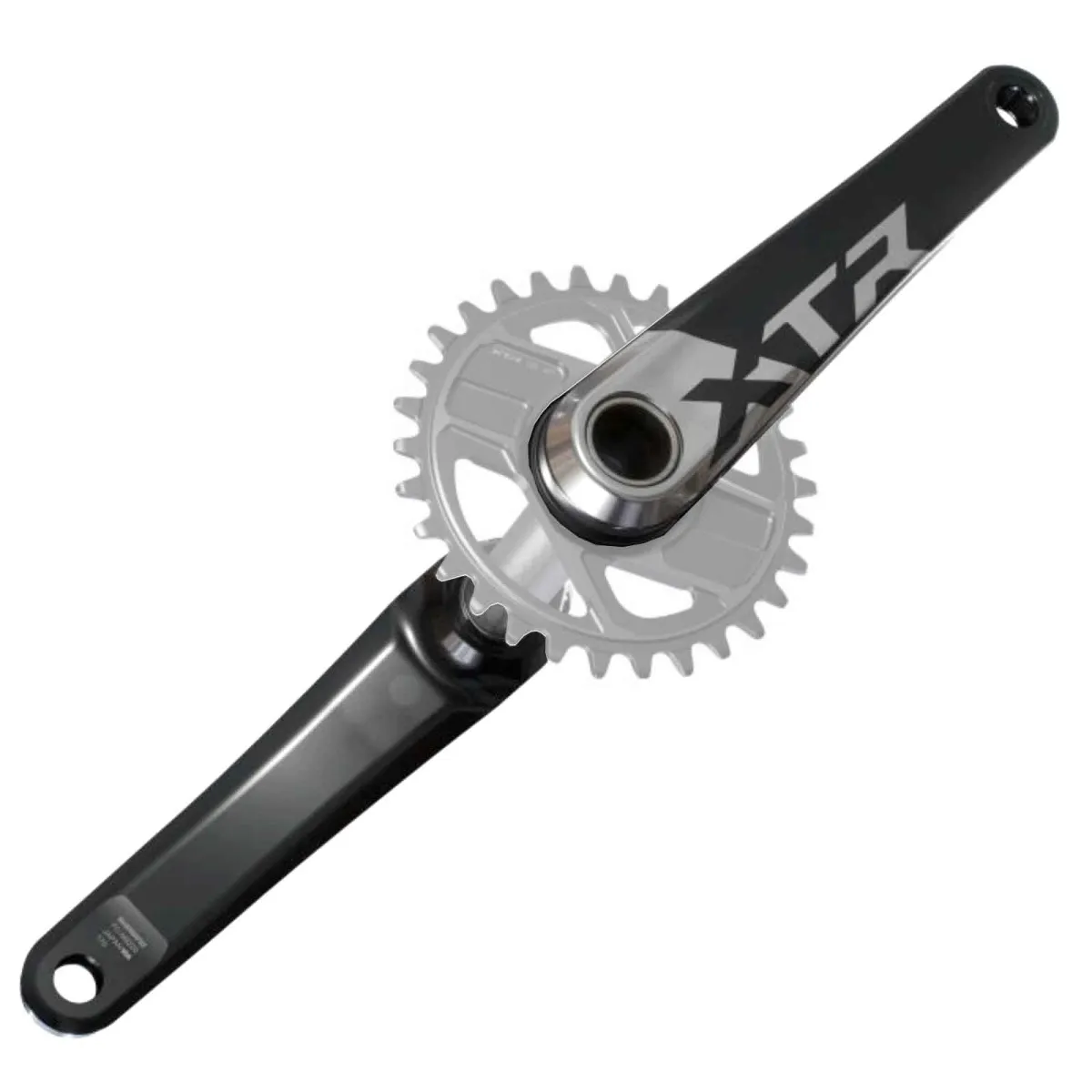

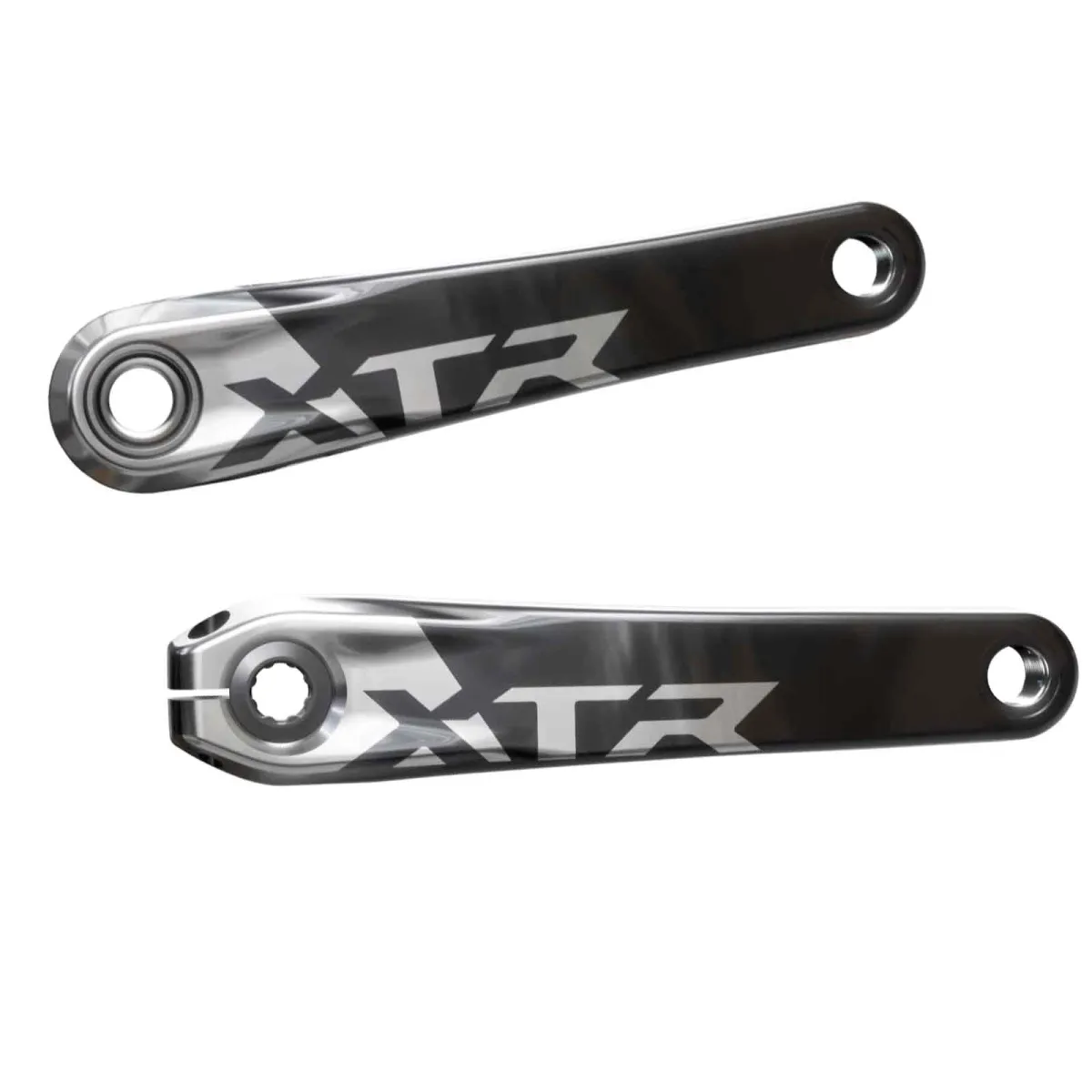

• XTR FC - M9220 crank arms, right and left, crank bolt, Directmount lockring

Shimano XTR FC M9220 crankset technology:

• Hollow-forged aluminium cranks
• 24 mm Hollowtech II steel axle
• Chainring / spider mount: Shimano Direct Mount
• Chainline 55 mm for Boost frames
• Q-factor 176 mm
• Weight approx. 530 grams, manufacturer’s specification

Shimano XTR Crankset FC-M9220

The FC-M9220 is the most robust XTR crankset ever produced. It was developed for the tough conditions of the Enduro World Series. The HOLLOWTECH II forging process and a thicker steel axle ensure that this crankset can withstand even the hardest impacts whilst offering optimised stiffness and weight. With crank arm lengths of 160–175 mm and all sizes of the reinforced SM-CR96 Direct Mount chainring, the FC-M9220 offers a suitable specification for all enduro riders.

Shimano Direct Mount chainring mount:

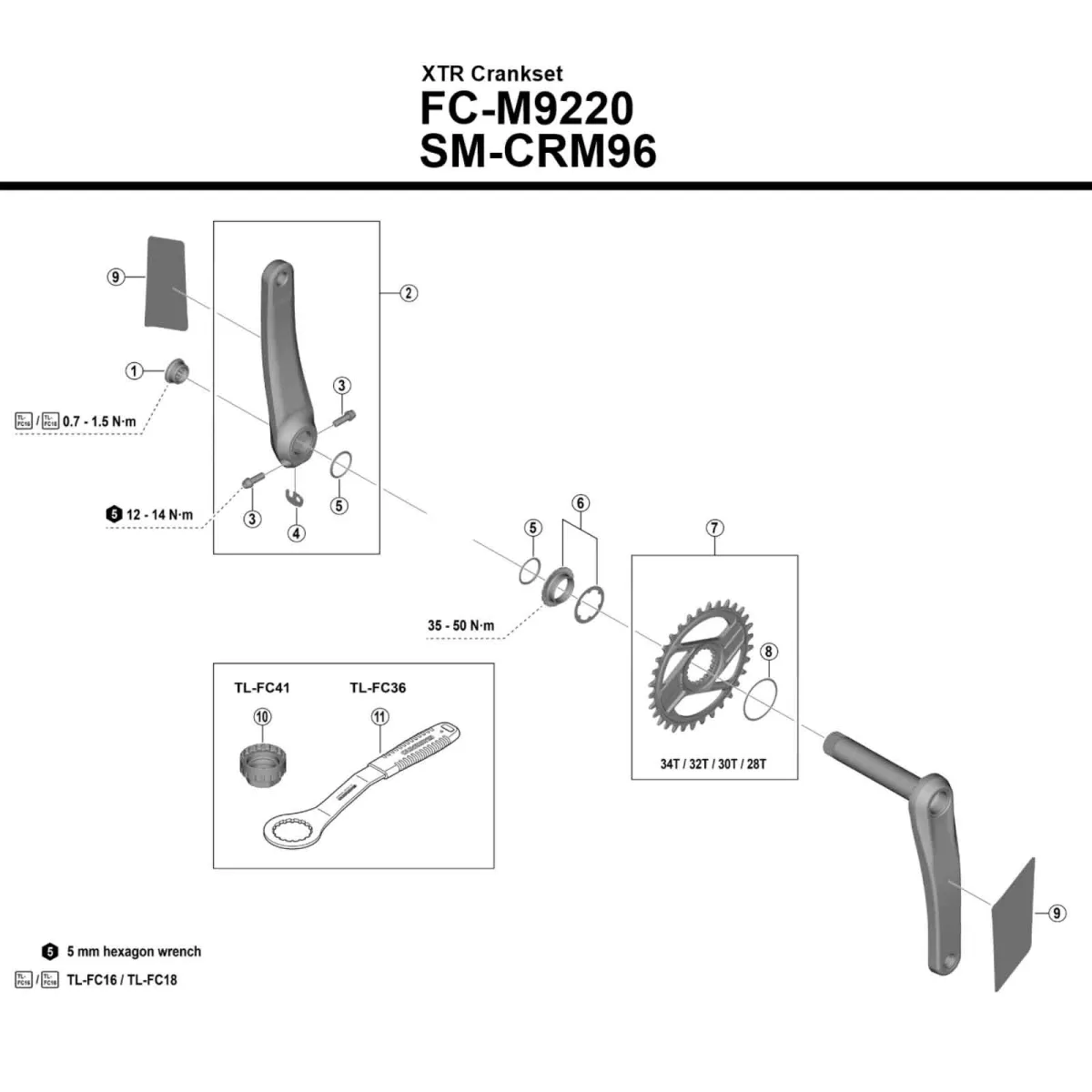

The XTR cranksets feature the Shimano Direct Mount chainring mount. This allows the chainrings to be easily changed. The TL-FC41 tool is required for removing and fitting the chainring. All single-chainring setups with the Shimano Direct Mount mount can be fitted, e.g. the XT SMCRM85 and the XTR SMCRM96

Compatible bottom bracket shells / bottom brackets:

• BSA thread: BC - 1.37 x 24T, bottom bracket width 68–73 mm, Shimano SMBB94 bottom bracket
• Pressfit 92:Press-fit diameter 41 mm, bottom bracket width 89.5–92 mm, Shimano SMBB9441A bottom bracket
• BB30 OS: Press-fit diameter 42 mm, bottom bracket width 84.5 mm, Shimano SMBB9142A bottom bracket
• BB30: Press-fit depth 42 mm, bottom bracket width 68–73 mm, compatible bottom bracket
  Wheels Outboard Item No.: BB30-OUT
• BB30A: Press-fit depth 42 mm, bottom bracket width 73 mm asymmetrical, compatible bottom brackets:
  Wheels Outboard Item No.: BB30A-OUT-SHIM
• Pressfit 30: Press-fit diameter 46 mm, bottom bracket width 68–73 mm, compatible bottom brackets:
  Wheels Outboard Item No.: PF30-OUT
• Pressfit 30A: Press fit 46 mm, bottom bracket width 73 mm asymmetrical, compatible bottom brackets:
  Wheels Outboard Item No.: PF30A-OUT-SHIM
• BBright: Press fit 46 mm, bottom bracket width 79 mm, compatible bottom brackets:
  Wheels Outboard Item No.: BBRIGHT-OUT-1
• 386EVO: Press fit 46 mm, bottom bracket width 86.5 mm, compatible bottom brackets:
  Wheels Outboard Item No.: 386EVOBB-SHIMAC
• Trek BB90/95 press-fit 37 mm, bottom bracket width 90/95 mm, compatible bottom brackets:
  Wheels replacement bearings Part No: SB-24X37 plus seals and spacers Part No: SHIM-SPACER-PK
• T47 thread: M47x1, bottom bracket width 68–132 mm, compatible bottom brackets:
  Wheels Outboard Part No: T47-BB-SHIM-AC
