Spare part: Shimano Dura-Ace FC-R9100-P

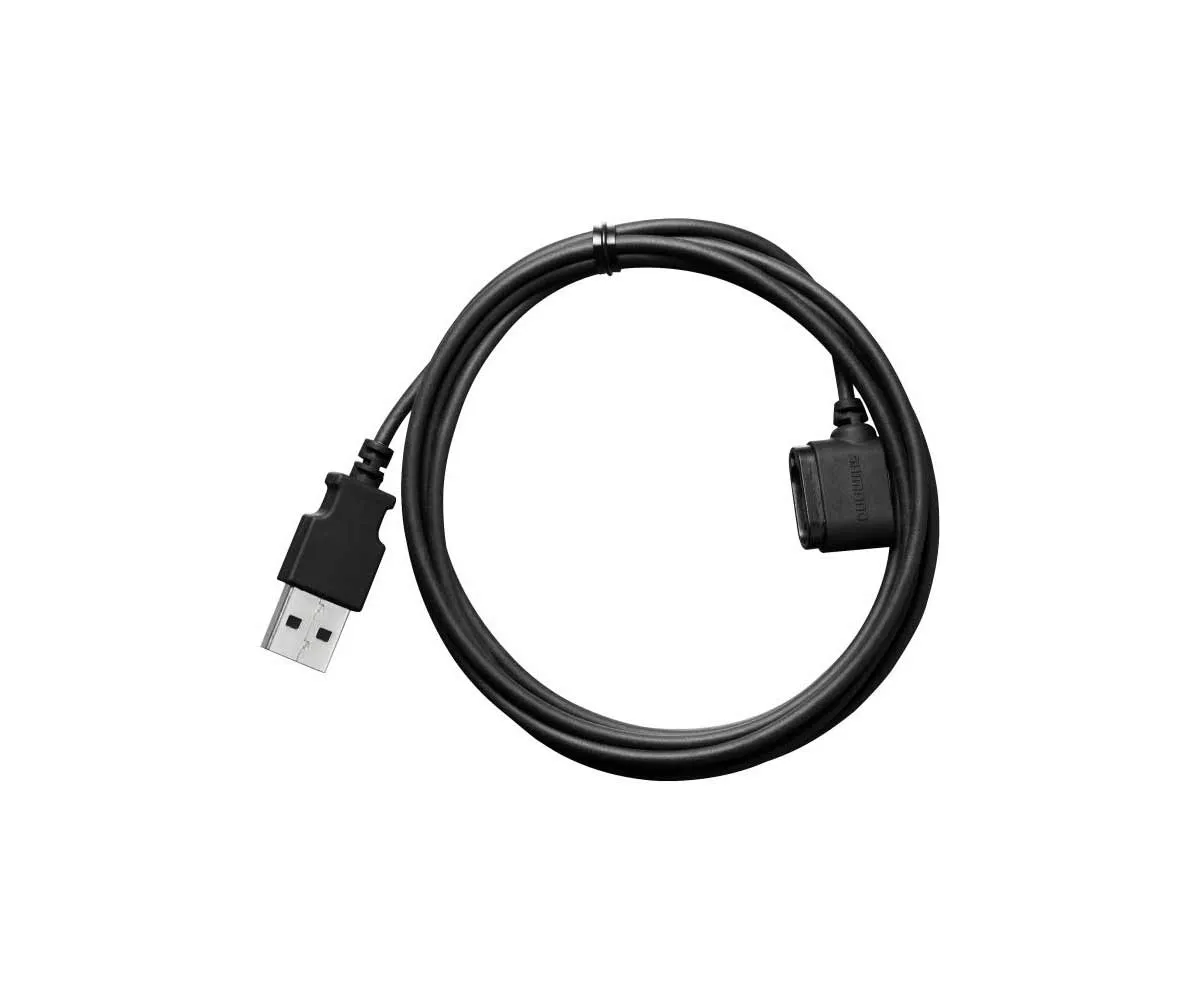

Shimano USB charging cable for charging the battery built into the crankset. Manufacturer’s note: the charging cable must not be disconnected whilst the firmware is being updated.

Included in delivery:

• No. 19: Y1VU00043 – 1x charging cable

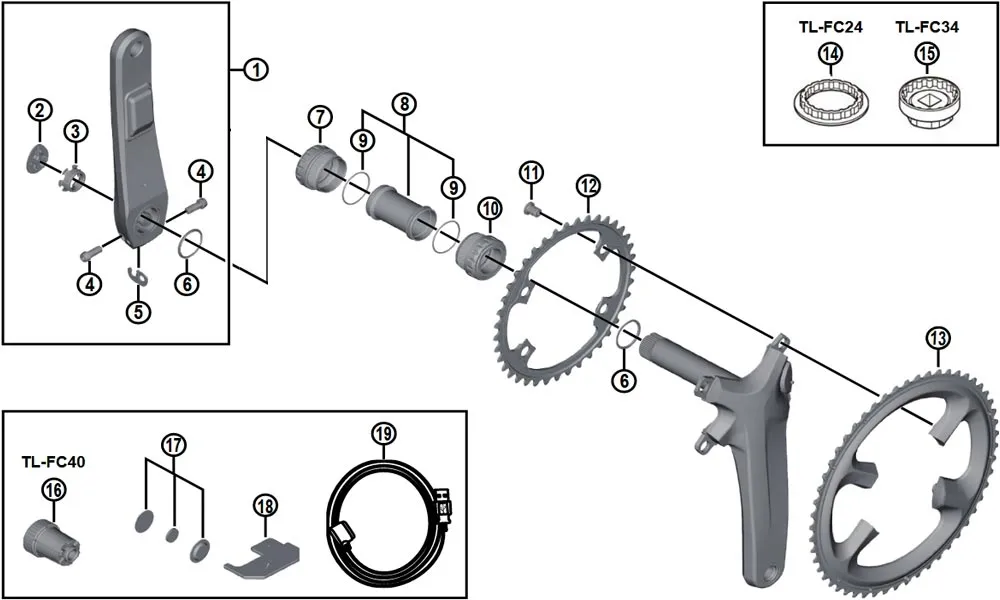

All Shimano Dura-Ace FC-R9100-P 2x11-speed crankset spare parts:

• No. 1: Y1VU98010 – Left crank arm 165 mm
• No. 1: Y1VU98020 – Left crank arm 167.5 mm
• No. 1: Y1VU98030 - Left crank arm 170 mm
• No. 1: Y1VU98040 – Left crank arm 172.5 mm
• No. 1: Y1VU98050 - Left crank arm 175 mm
• No. 1: Y1VU98060 - Left crank arm 177.5 mm
• No. 1: Y1VU98070 – Left crank arm 180 mm
• No. 2: Y1E512000 - Cover cap
• No. 3: Y1VU00024 - Crank arm fixing ring
• No. 4: Y1E512000 - Clamping screw
• No. 5: Y1GE98050 – Retaining plate
• No. 6: Y1F316000 – Crank O-ring
• No. 7: Y1VR98010 – BB-R9100 BSA left cup
• No. 7: Y1VR98020 – BB-R9100 ITA left cup
• No. 8: Y1KY98130 - Bottom bracket shell
• No. 9: Y1TF21000 - O-ring for bottom bracket shell
• No. 10: Y1VR98030 - BB-R9100 BSA right cup
• No. 10: Y1VR98040 - BB-R9100 ITA right cup
• No. 11: Y1H598160 - Chainring bolts
• No. 12: Y1VP34000 - 34-tooth chainring, MS type
• No. 12: Y1VP36000 – 36-tooth chainring, MT type
• No. 12: Y1VP39000 - Chainring 39 teeth MW-type
• No. 13: Y1VP98010 - 50-tooth chainring, MS type
• No. 13: Y1VP98020 – 52-tooth chainring, MT type
• No. 13: Y1VP98030 - 53-tooth chainring, MW type
• No. 14: Y13009240 - Adapter TL-FC24
• No. 15: Y13009250 - Bottom bracket tool TL-FC34
• No. 16: YEZY00017 - Crank arm tool TL-FC40
• No. 17: Y1VU98080 - Magnet set
• No. 18: Y1VU00030 - Magnet tool
• No. 19: Y1VU00043 - Charging cable
