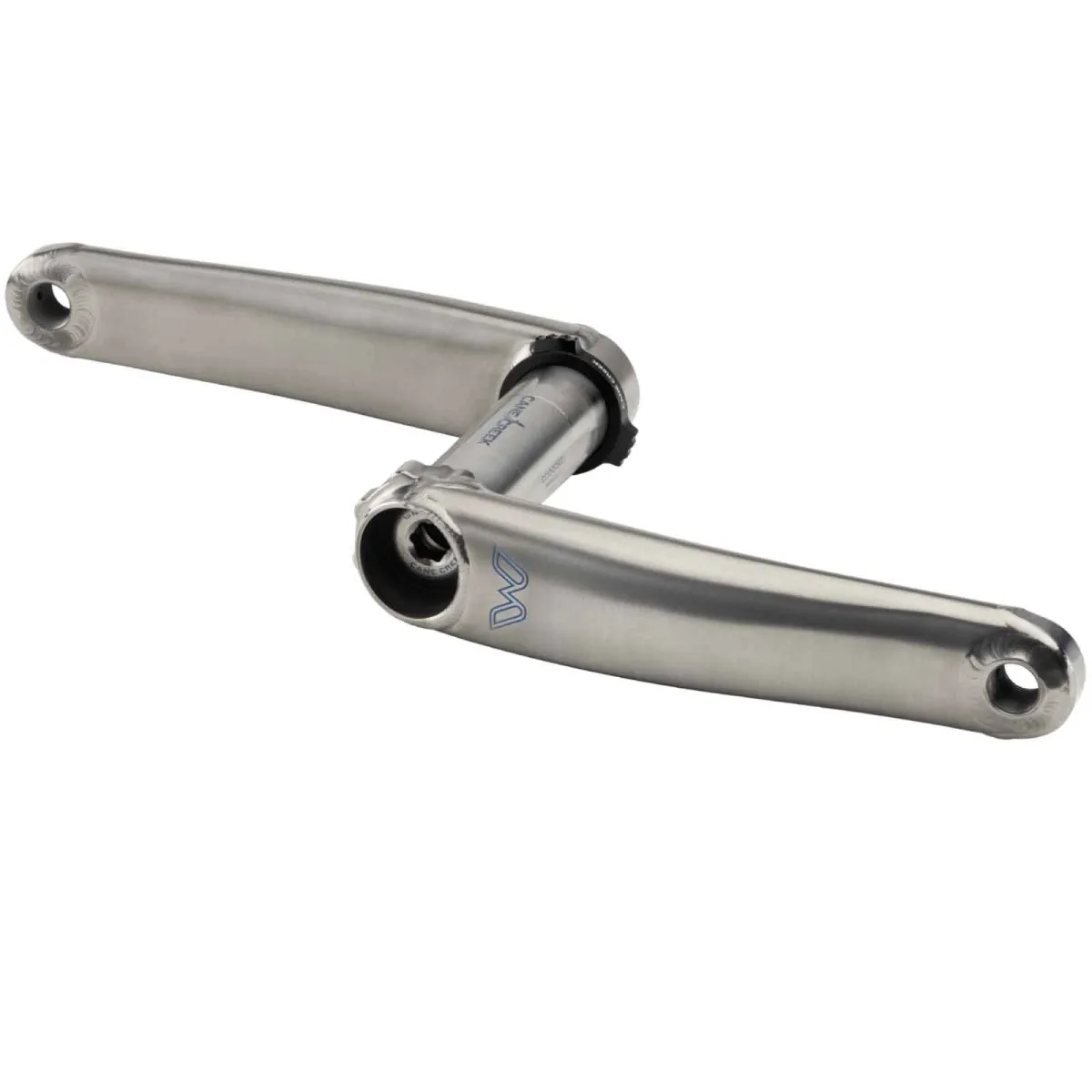

Cane Creek eeWings II All Road Crankset

Made entirely from titanium, super-lightweight and designed for road and gravel use, the eeWings II crank arms now feature the SRAM 8-bolt spider mount and are therefore also compatible with Quarq power meters.

Cane Creek eeWing II crank arm specifications and dimensions:

• Made from titanium, welded
• Titanium bottom bracket axle with extremely stable Hirt spline
• Q-factor 160 mm
• Chainline 46 mm
• Distance between crank arm and inner bearing 62 mm

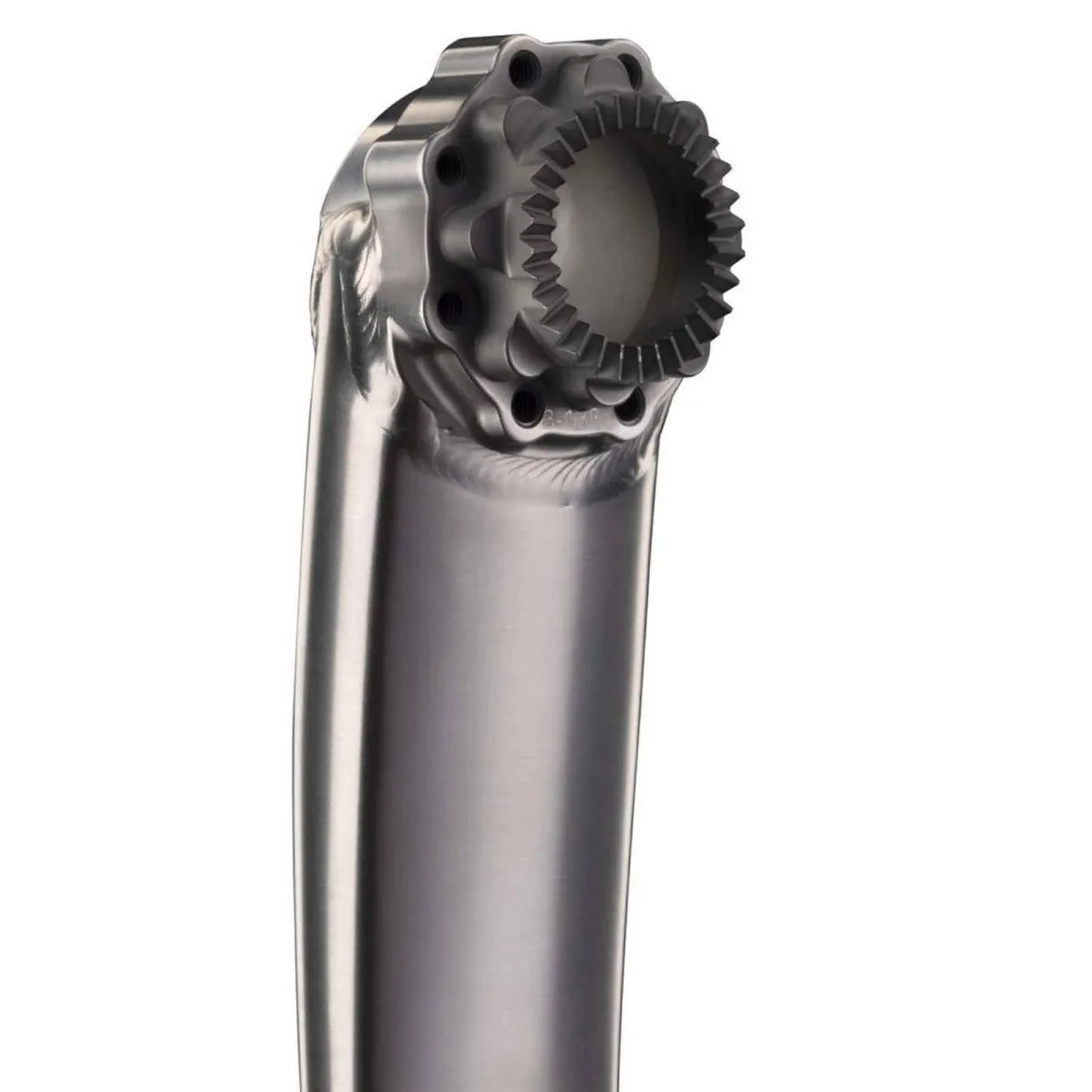

• SRAM Direct Mount chainring spider mount, 8-bolt fastening, Quarq compatible
• 30 mm titanium axle, 94 mm length
• Crank arm weight: 395 grams (manufacturer’s specification)

Compatible Race Face Cinch bottom bracket

• BSA bottom bracket shell, 68/73 mm thread:
• Race Face Cinch BB 30 mm BSA, item no. 2020030652
• BB92 bottom bracket shell press-fit diameter 41 mm:
• Race Face Cinch BB 30mm BB92, Part No. 2020030650
• Pressfit 30 bottom bracket shell, press-fit diameter 46 mm:
• Race Face Cinch BB 30mm Pressfit 30, Item No. 2020030651
• BB30 bottom bracket shell 73 mm press-fit diameter 42 mm :
• Race Face Spacer Kit F10010, 14 mm plus BB30 bottom bracket

Cane Creek offers a 10-year warranty on the eeWings crankset arms. The eeWings All-Road crankset can be used with 1 or 2 chainrings and can therefore be used as a gravel or road bike crankset. A chainring spider for mounting 2 chainrings is available separately. However, a SRAM spider with the 3-bolt mounting can also be used.

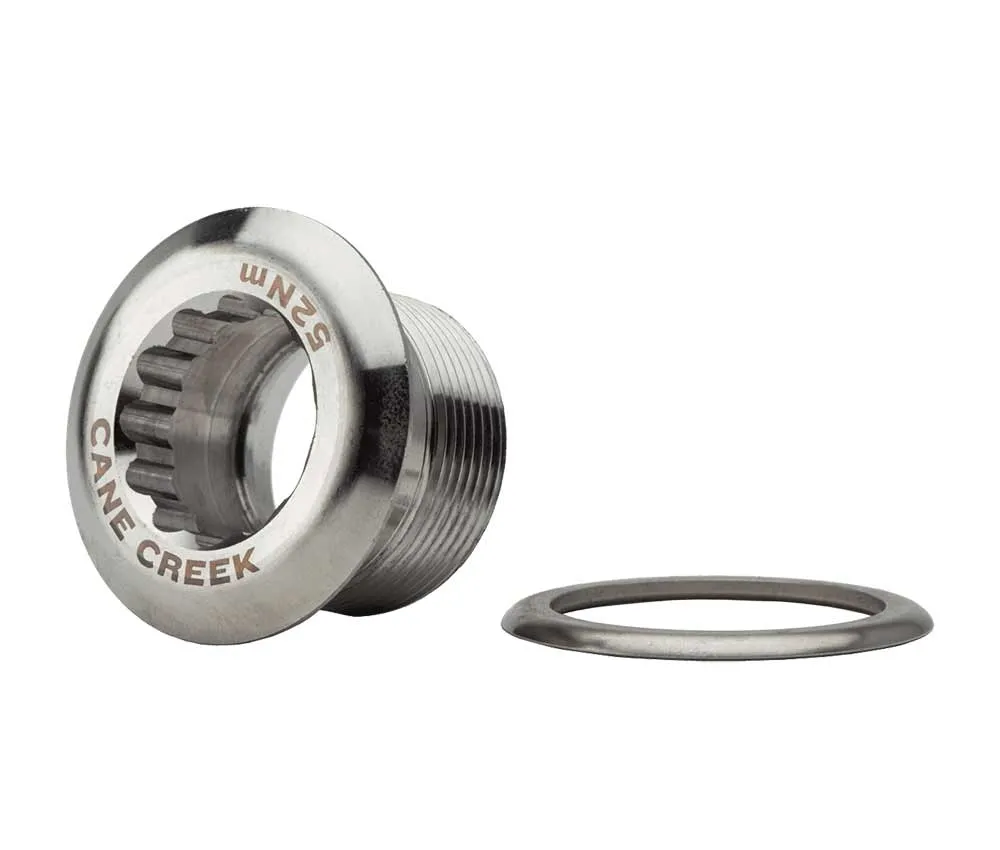

Equipped with a 30 mm titanium axle, Hirt threading and an aluminium preloader, the Cane Creek eeWing cranks are compatible with all standard bottom bracket shells. E.g.: FSA BB386, Wheels bottom brackets for 30 mm axles, etc. The chainring mount corresponds to the SRAM Direct Mount with a 3-point bolt pattern, meaning all SRAM Direct Mount chainrings and spiders can be fitted using this mount. Not compatible with Quarq power meters, which require an 8-bolt pattern.

Cane Creek 30 mm bottom bracket system:

The integrated 30 mm titanium bottom bracket axle is particularly lightweight and allows the crankset to be fitted to frames with BSA threaded, BB89, 5 Pressfit, BB92 Pressfit, PF30 Pressfit T47 BSA and 392Evo Pressfit BBright bottom bracket shells. Bottom brackets from Cane Creek, Chris King, Wheels and Race Face can be used.

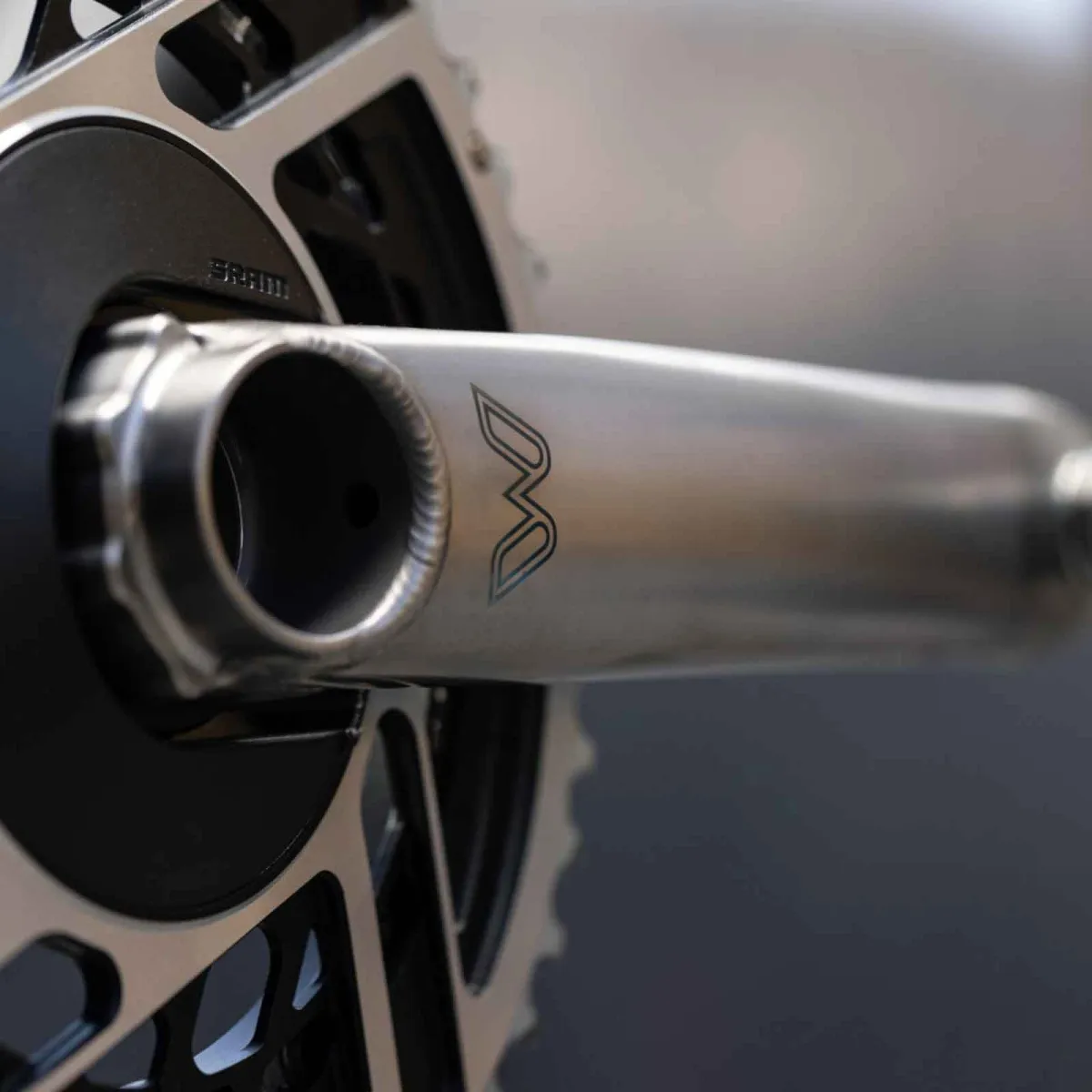

SRAM 8-bolt direct mount system:

The Direct Mount chainrings and spider can be changed quickly and easily using 8 bolts. A wide selection of chainrings is available, including those from other manufacturers offering SRAM-compatible chainrings, such as Race Face and Wolf Tooth. Also compatible with Quarq power meters.
