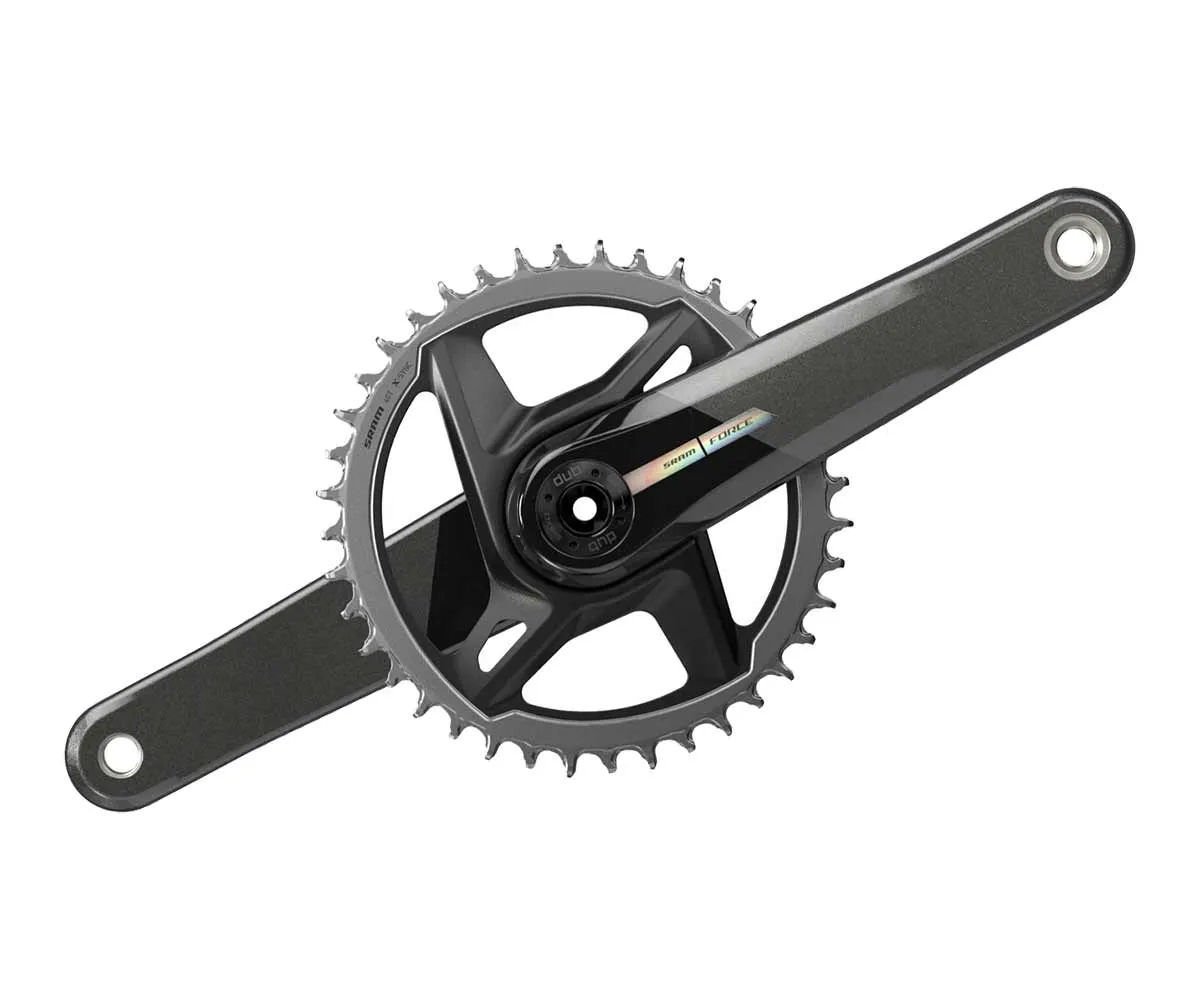

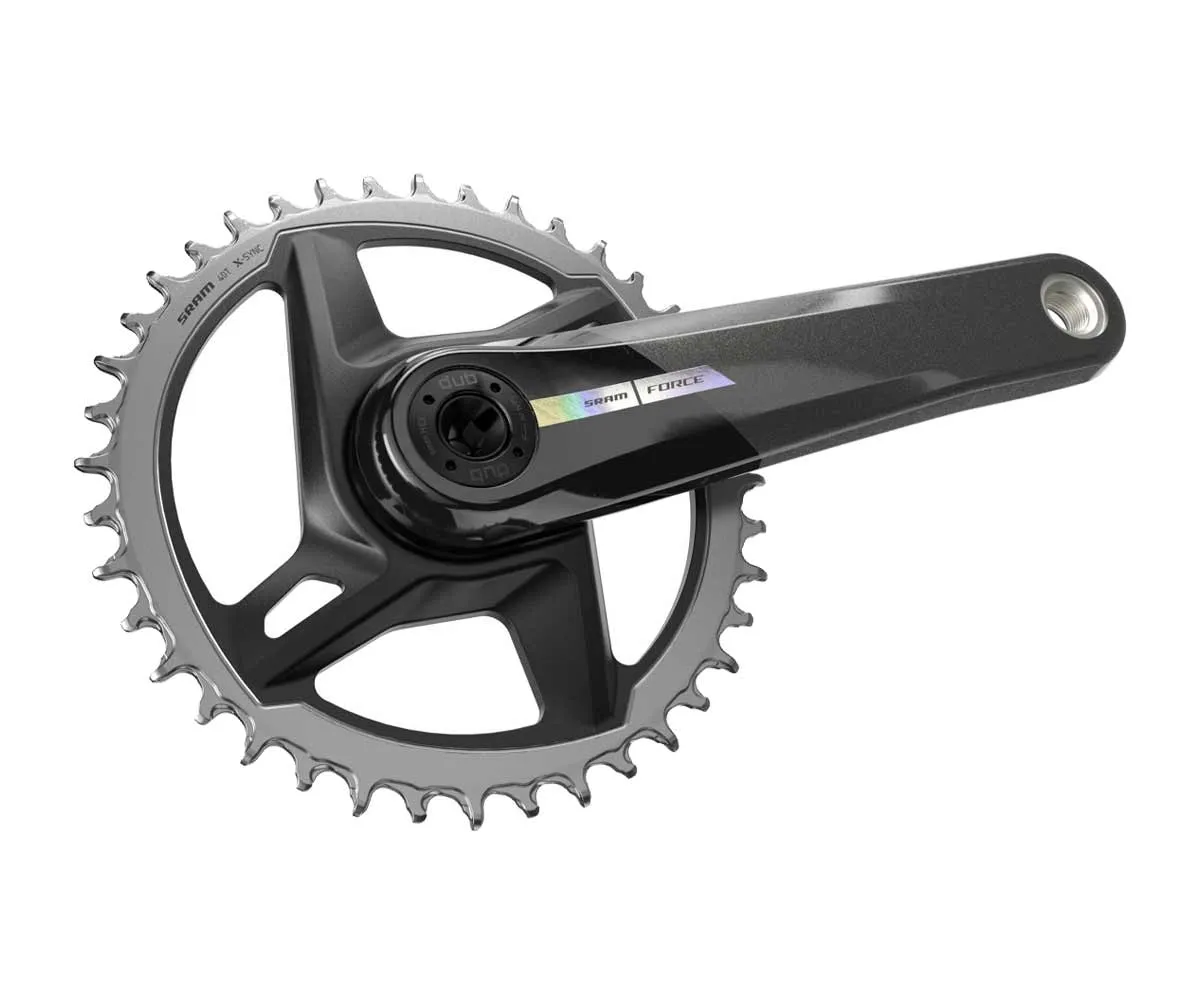

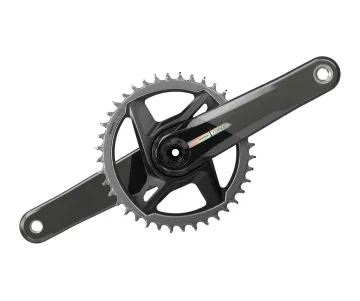

Sram Force AXS crankset

Featuring a new design and new chainrings, the Sram Force AXS single-chainring crankset is designed for use on gravel, cyclocross and road bikes.

Sram Force AXS crankset technology:

• Application: Road, gravel, cyclocross
• Crank arm material: Hollow-construction carbon
• Direct mount chainring mount, 8-point bolt-on
• Quarq power meter compatible
• X Sync 2 chainring, compatible with 10 + 11 + 12-speed systems
• Chainring material: 7075-T6 aluminium
• Chainline: 45 mm
• Aluminium 29 mm crankset spindle
• Colour: glossy black iridescent
• Supplied without DUB bottom bracket
• Required bottom bracket: Sram DUB
• Weight: approx. 600 grams (manufacturer’s specification)

Included in delivery:

SRAM Force AXS crank arms, right and left, direct-mount chainring, crank bolt. The bottom bracket is sold separately.

SRAM Force AXS crankset:

The new version of the Force AXS crankset with the Direct Mount chainring is compatible with Quarq power meters. The Sram Force AXS carbon crankset for the new D2 AXS groupset, in combination with the new 12-speed cassettes, offers a completely new gear ratio range. The smaller chainrings and the cassette with a wider range offer a greater gear range than previous systems. The result is smoother and faster front shifting and more usable gears. Weighing just around 600 grams, the cranks are also significantly lighter. The new configurations this enables improve cadence and efficiency and ensure crisp, clean and fast gear changes.

SRAM X-Sync 2 chainring technology:

The X-Sync 2 chainring technology is radically new. SRAM’s engineers analysed the performance and wear of thousands of previous X-Sync chainrings. The aim was to create a chainring that enhances the performance of the Eagle groupset under all riding conditions. The result: the chainring teeth are longer and shaped like a saw blade to grip the 12-speed chain perfectly. The new chainring thus increases chain tension and pedalling efficiency. At the same time, friction, chain noise and wear are reduced. The Direct Mount mount with 8 bolts makes changing the gear ratio a breeze. In addition, the SRAM Force AXS cranksets offer the option of retrofitting the Quarq Powermeter power measurement crankset.

SRAM DUB Axle Bottom Bracket System:

The DUB version of the SRAM cranks is suitable for BSA threaded, PressFit BB92, PressFit 30, BB30, BB386 Evo BB Right and T47 bottom bracket shells. You can find the compatible bottom brackets below, along with the installation dimensions. The axles have a diameter of 29 mm. Axle play is adjustable via a preloader. The SRAM DUB road bike cranksets have their own proprietary standard and are only compatible with DUB road bike bottom brackets, not with other bottom brackets. SRAM and Wheels Manufacturing offer compatible bottom brackets for almost every bottom bracket standard; only bottom brackets for Italian thread and Trek BB90 are not available. In those cases, GXP crank arms are required.

Compatible bottom bracket shells – Sram DUB road bike crankset

• Thread: BSA 1.37x24 TPI, shell width 68 mm,
  Sram DUB bottom bracket, part no. 00.6418.015.000
• Thread ITA 1.37x24 TPI Shell width 70 mm
  SRAM DUB bottom bracket Part No. 00.6418.038.000
• Pressfit BB86 Press-fit diameter 41 mm, shell width 86.5 mm
  Sram DUB Pressfit BB86.5 bottom bracket, part no. 00.6418.025.000
• BB30, press-fit dimension 42 mm, shell width 68 mm,
  SRAM DUB Pressfit BB30 bottom bracket, part no. 00.6418.017.000
• BB30A, press-fit diameter 42 mm, shell width 73 mm, asymmetrical
  Sram DUB Pressfit BB30 bottom bracket, item no. 00.6418.027.000
• Pressfit 30, press fit diameter 46 mm, shell width 68–73 mm
  , SRAM DUB Pressfit bottom bracket, item no. 00.6418.028.001
• Pressfit 30A, press-fit diameter 46 mm, shell width 73 mm, asymmetrical,
  SRAM DUB Pressfit bottom bracket, item no. 00.6418.028.001
• BB-Right, press-fit diameter 46 mm, shell width 79 mm
  , SRAM DUB PressFit BB-Right bottom bracket, item no. 00.6418.028.000
• BB386 Evo, press fit diameter 46 mm, shell width 86.5 mm,
  SRAM DUB PressFit BB386 bottom bracket, part no. 00.6418.026.000
• T47, thread diameter 47 mm, shell width 68 mm
  , SRAM DUB PressFit threaded bottom bracket, Part No. 00.6418.033.002
• T47, thread diameter 47 mm, shell width 77 mm
  , SRAM DUB PressFit threaded bottom bracket, item no. 00.6418.033.003
• T47, thread diameter 47 mm, shell width 86.5 mm,
  SRAM DUB PressFit threaded bottom bracket, part no. 00.6418.033.000
