Spare part Shimano Dura Ace FC-R9200

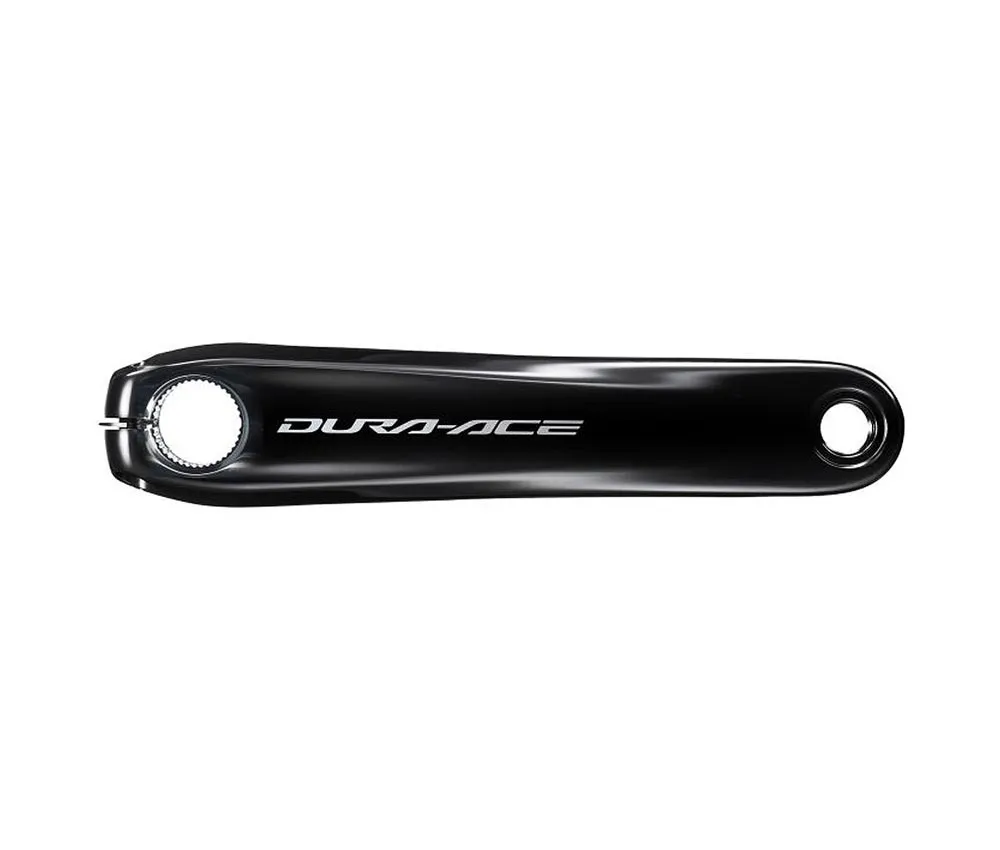

Shimano crank arm, 170 mm in length, for the left side of the crank. The right-hand crank arm is not available as a spare part.

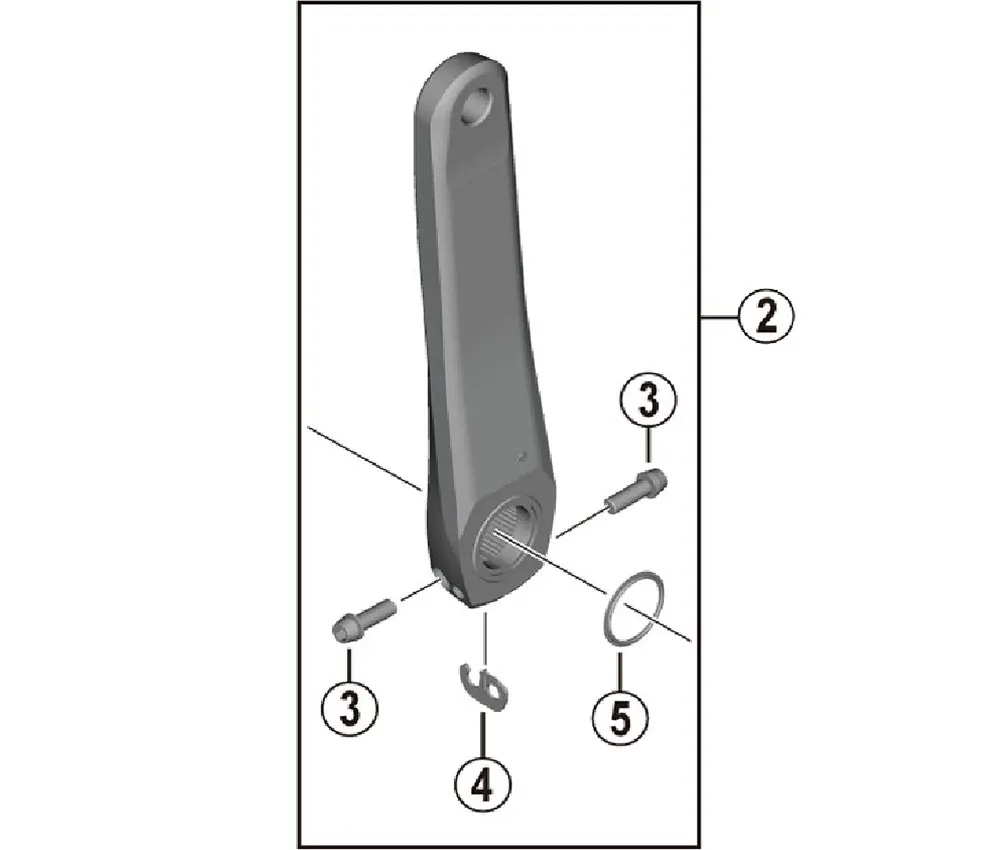

Included in delivery:

• No. 2: Y0MZ98070 – 1x left crank arm 170 mm
• No. 3: Y1GS22100 – 2x clamping screws
• No. 4: Y1GE98050 - 1x retaining plate
• No. 5: Y0MZ14000 - 1x O-ring for crank

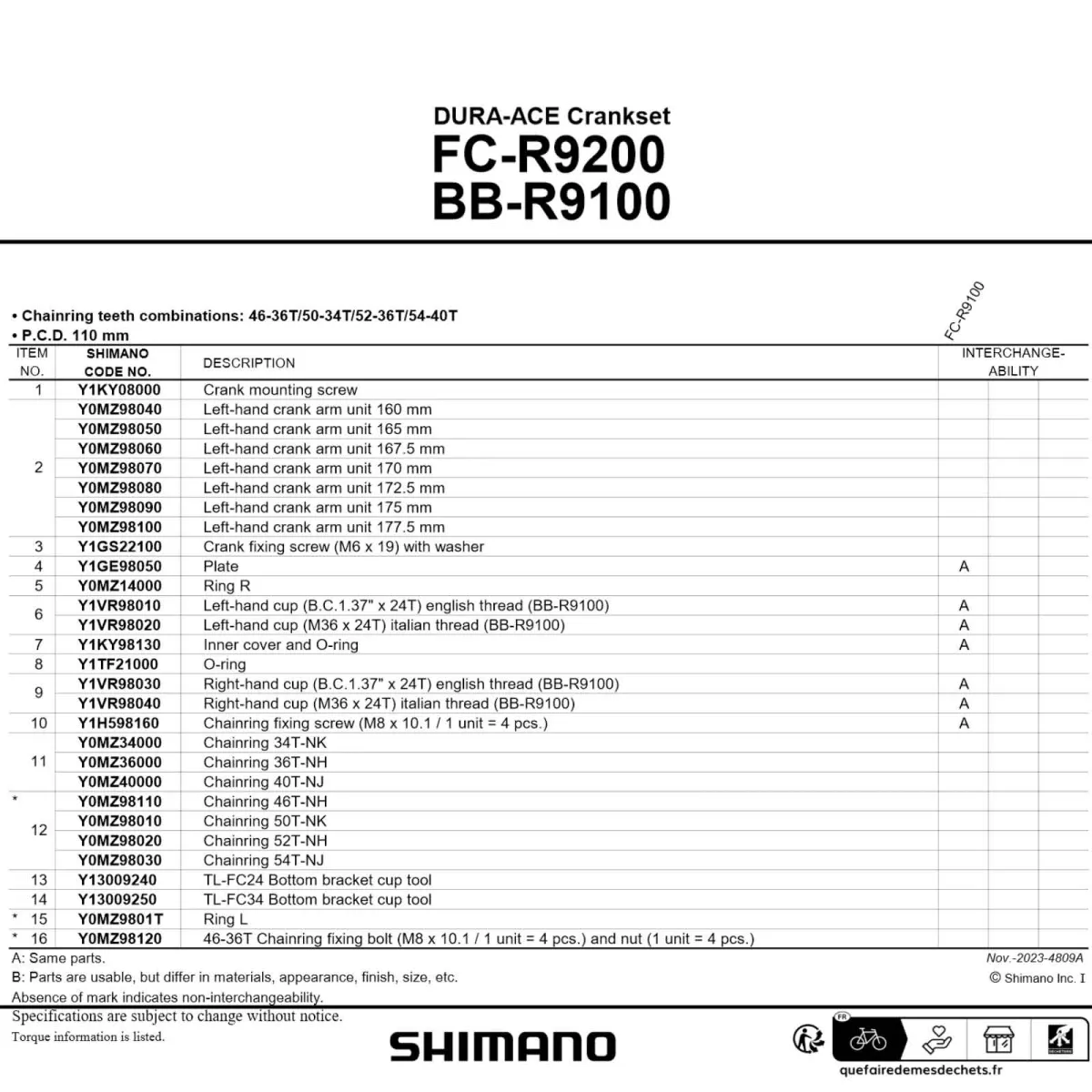

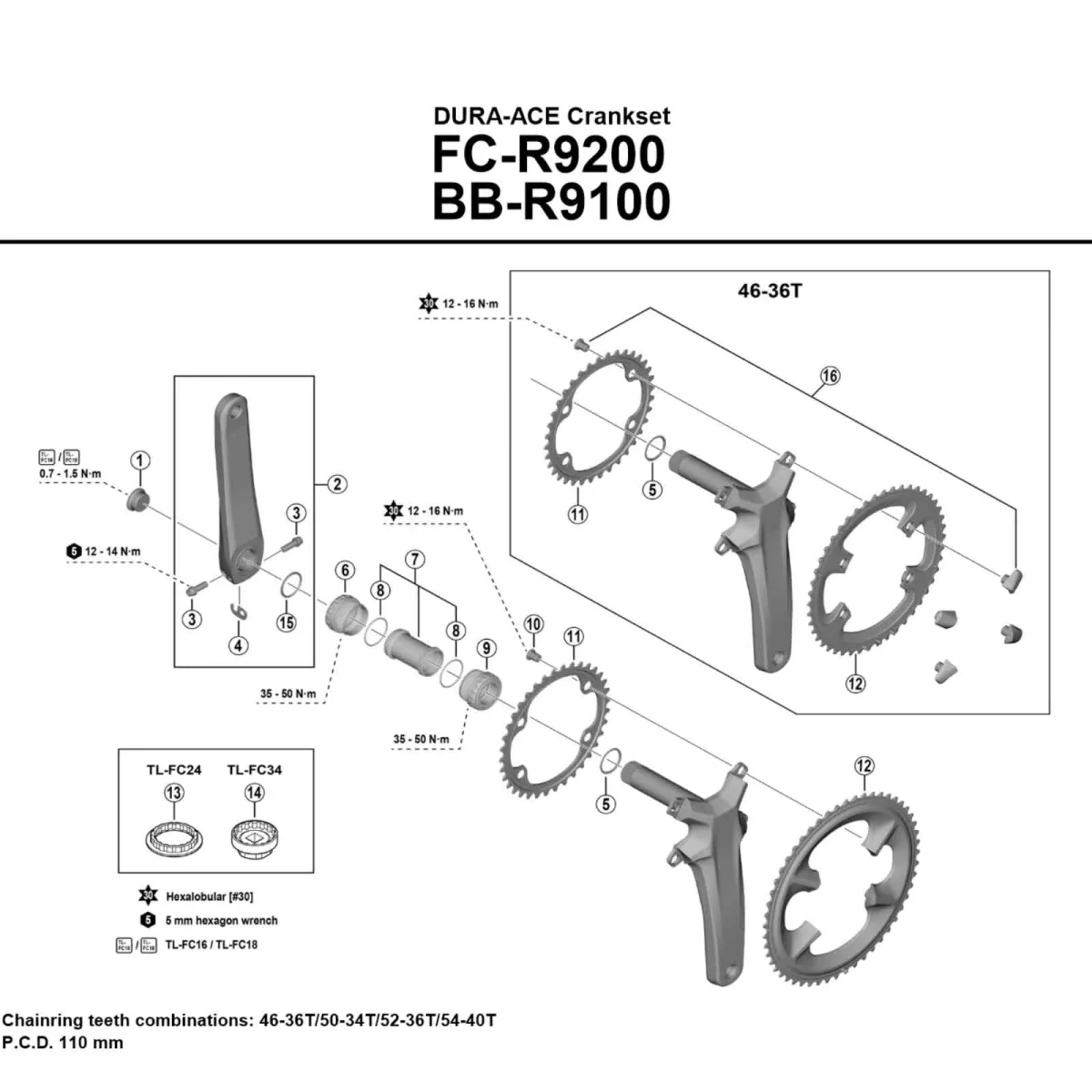

All Shimano Dura Ace FC-R9200 2x12-speed crankset spare parts:

• No. 1: Y1KY08000 - Crank mounting bolt
• No. 2: Y0MZ98040 - Left crank arm 160 mm
• No. 2: Y0MZ98050 - Left crank arm 165 mm
• No. 2: Y0MZ98060 - Left crank arm 167.5 mm
• No. 2: Y0MZ98070 - Left crank arm 170 mm
• No. 2: Y0MZ98080 - Left crank arm 172.5 mm
• No. 2: Y0MZ98090 - Left crank arm 175 mm
• No. 2: Y0MZ98100 - Left crank arm 177.5 mm
• No. 3: Y1GS22100 - Clamping screw
• No. 4: Y1GE98050 - Locking plate
• No. 5: Y0MZ14000 - Crank O-ring
• No. 6: Y1VR98010 - BB-R9100 BSA left cup
• No. 6: Y1VR98020 - BB-R9100 ITA left cup
• No. 7: Y1KY98130 - Bottom bracket shell
• No. 8: Y1TF21000 - O-ring for bottom bracket sleeve
• No. 9: Y1VR98030 - BB-R9100 BSA right cup
• No. 9: Y1VR98040 - BB-R9100 ITA right cup
• No. 10: Y1H598160 - Chainring bolts
• No. 11: Y0MZ34000 - 34-tooth chainring, NK type
• No. 11: Y0MZ36000 - Chainring 36 teeth NH type
• No. 11: Y0MZ40000 - Chainring 40 teeth NJ type
• No. 12: Y0MZ98010 – 50-tooth chainring, NK type
• No. 12: Y0MZ98020 – 52-tooth chainring, NH type
• No. 12: Y0MZ98030 - 54-tooth chainring, NJ type
• No. 13: Y13009240 - Adapter TL-FC24
• No. 14: Y13009250 - Bottom bracket tool TL-FC34
