Spare part: Shimano Ultegra FC-R8100

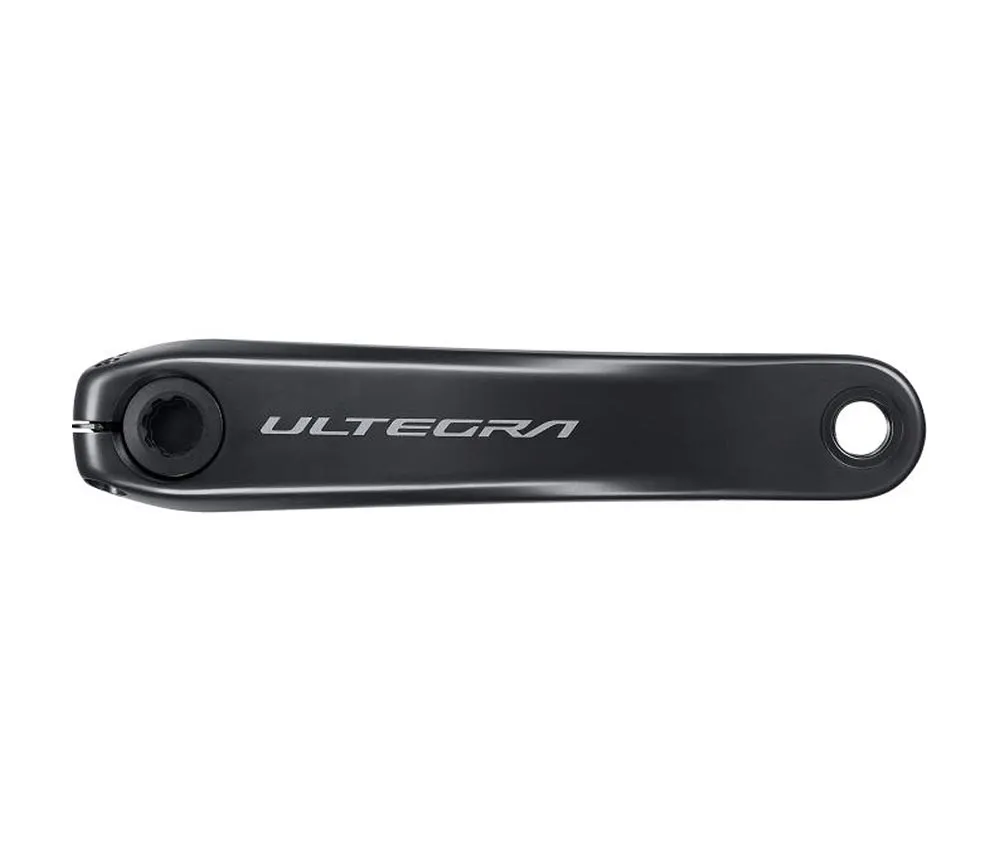

Shimano Ultegra crank arm, 175 mm in length, for the left side of the crankset. The right-hand crank arm is not available as a spare part.

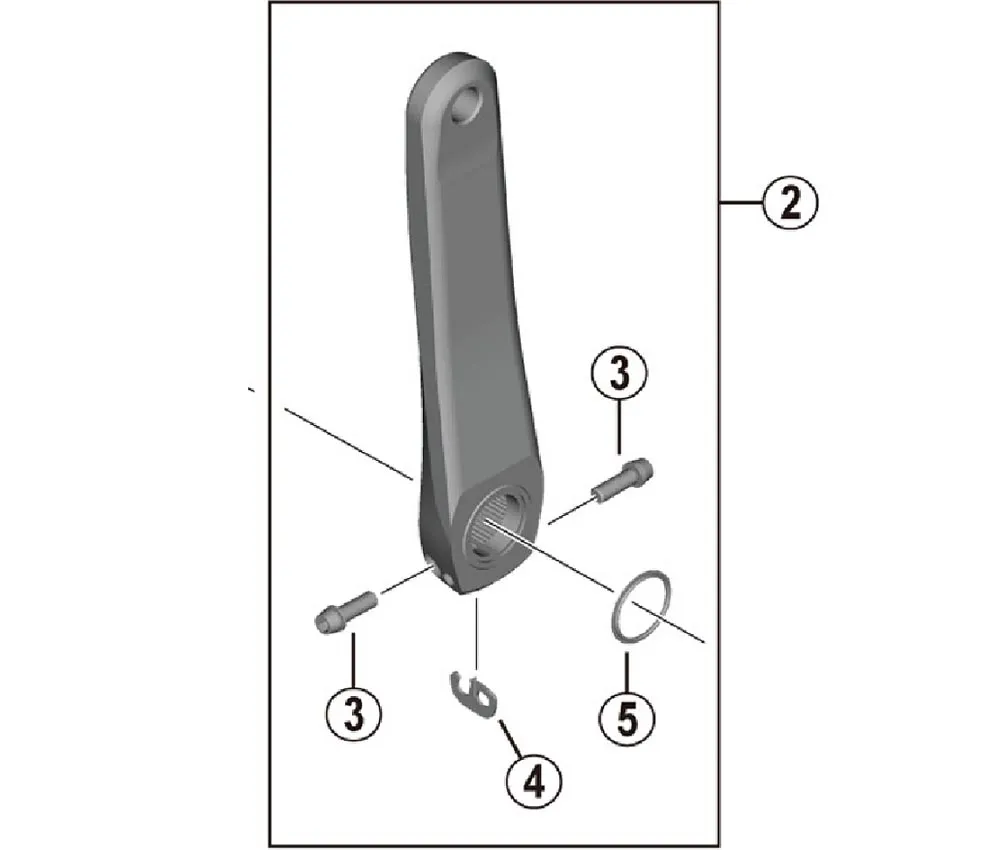

Included in delivery:

• No. 2: Y0NG98070 – 1x left crank arm 175 mm
• No. 3: Y1GS22100 – 2x clamping screws
• No. 4: Y1GE98050 - 1x retaining plate
• No. 5: Y0MZ14000 – 1x O-ring for crank

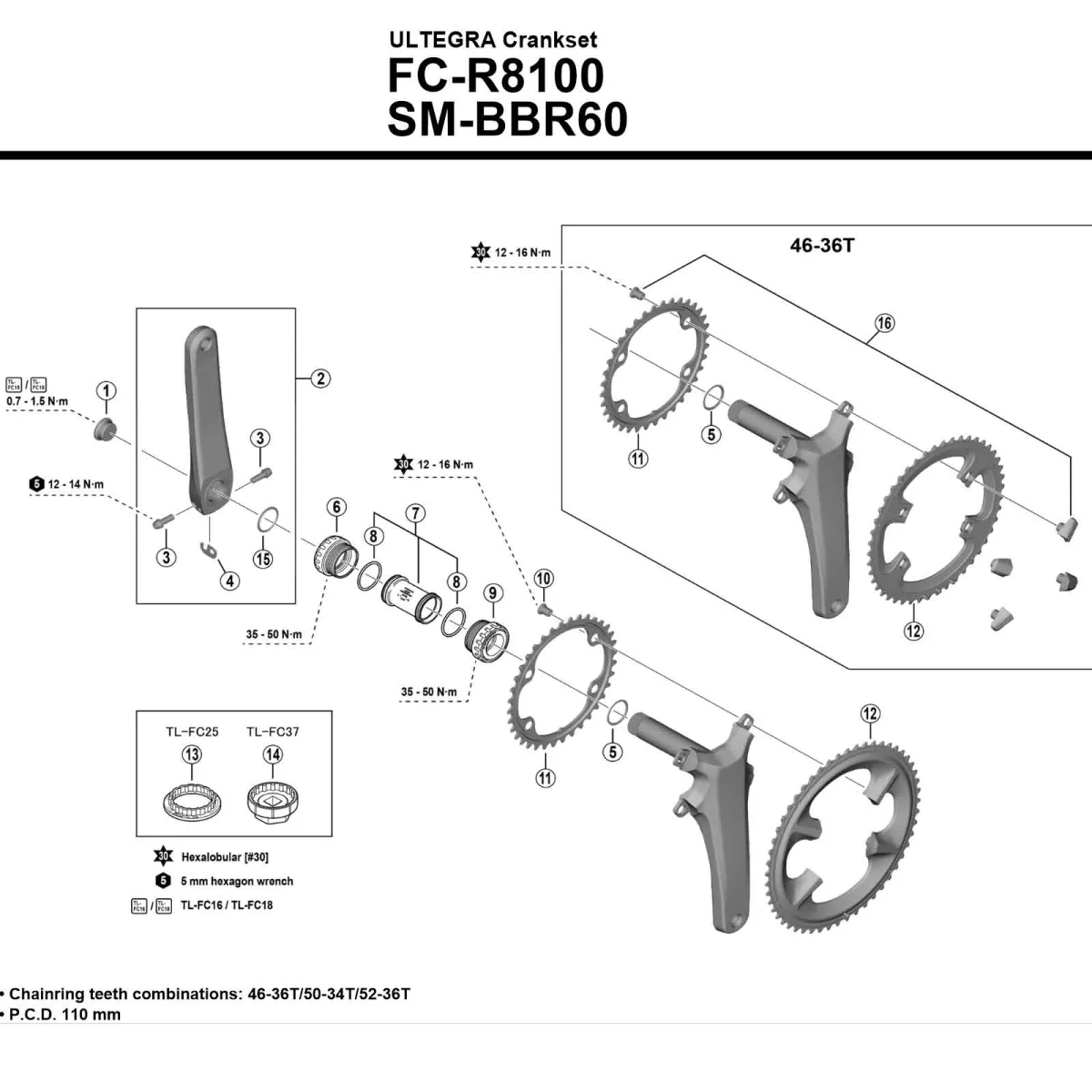

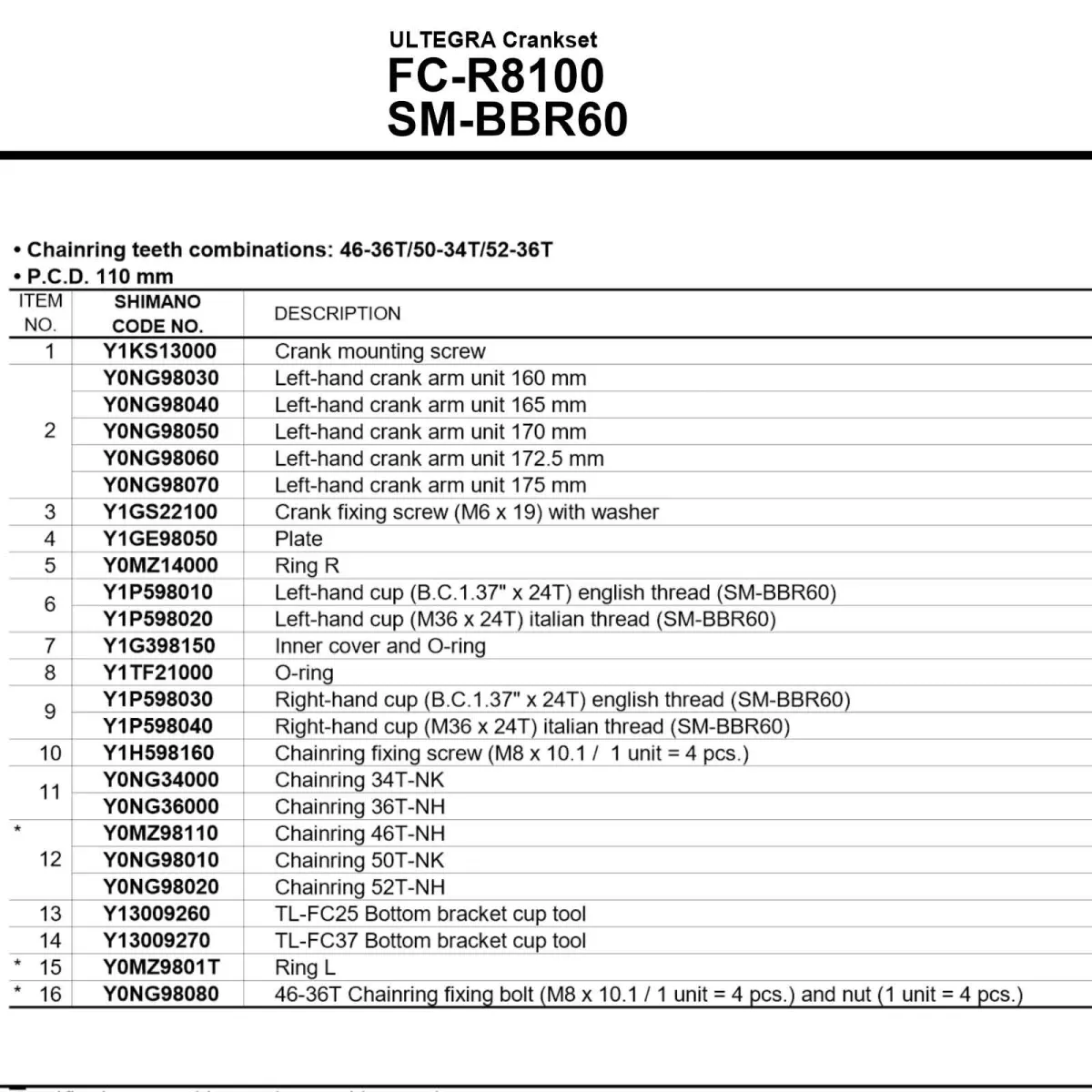

All Shimano Ultegra FC-R8100 2x12-speed crankset spare parts:

• No. 1: Y1KS13000 - Crank mounting bolt
• No. 2: Y0NG98030 - Left crank arm 160 mm
• No. 2: Y0NG98040 - Left crank arm 165 mm
• No. 2: Y0NG98050 - Left crank arm 170 mm
• No. 2: Y0NG98060 - Left crank arm 172.5 mm
• No. 2: Y0NG98070 - Left crank arm 175 mm
• No. 3: Y1GS22100 - Clamping screw
• No. 4: Y1GE98050 - Locking plate
• No. 5: Y0MZ14000 - Crank O-ring
• No. 6: Y1P598010 - SM-BBR60 BSA left cup
• No. 6: Y1P598020 – SM-BBR60 ITA left bearing cup
• No. 7: Y1G398150 - Bottom bracket shell
• No. 8: Y1TF21000 - O-ring bottom bracket sleeve
• No. 9: Y1P598030 - SM-BBR60 BSA right cup
• No. 9: Y1P598040 - SM-BBR60 ITA right-hand bearing cup
• No. 10: Y1H598160 - Chainring bolts
• No. 11: Y0NG34000 - 34-tooth chainring, NK type
• No. 11: Y0NG36000 – 36-tooth chainring, NH type
• No. 11: Y0NG98010 - 50-tooth chainring, NK type
• No. 11: Y0NG98020 - Chainring 52 teeth NH-type
• No. 13: Y13009260 - Adapter TL-FC25
• No. 14: Y13009270 - Bottom bracket tool TL-FC37
