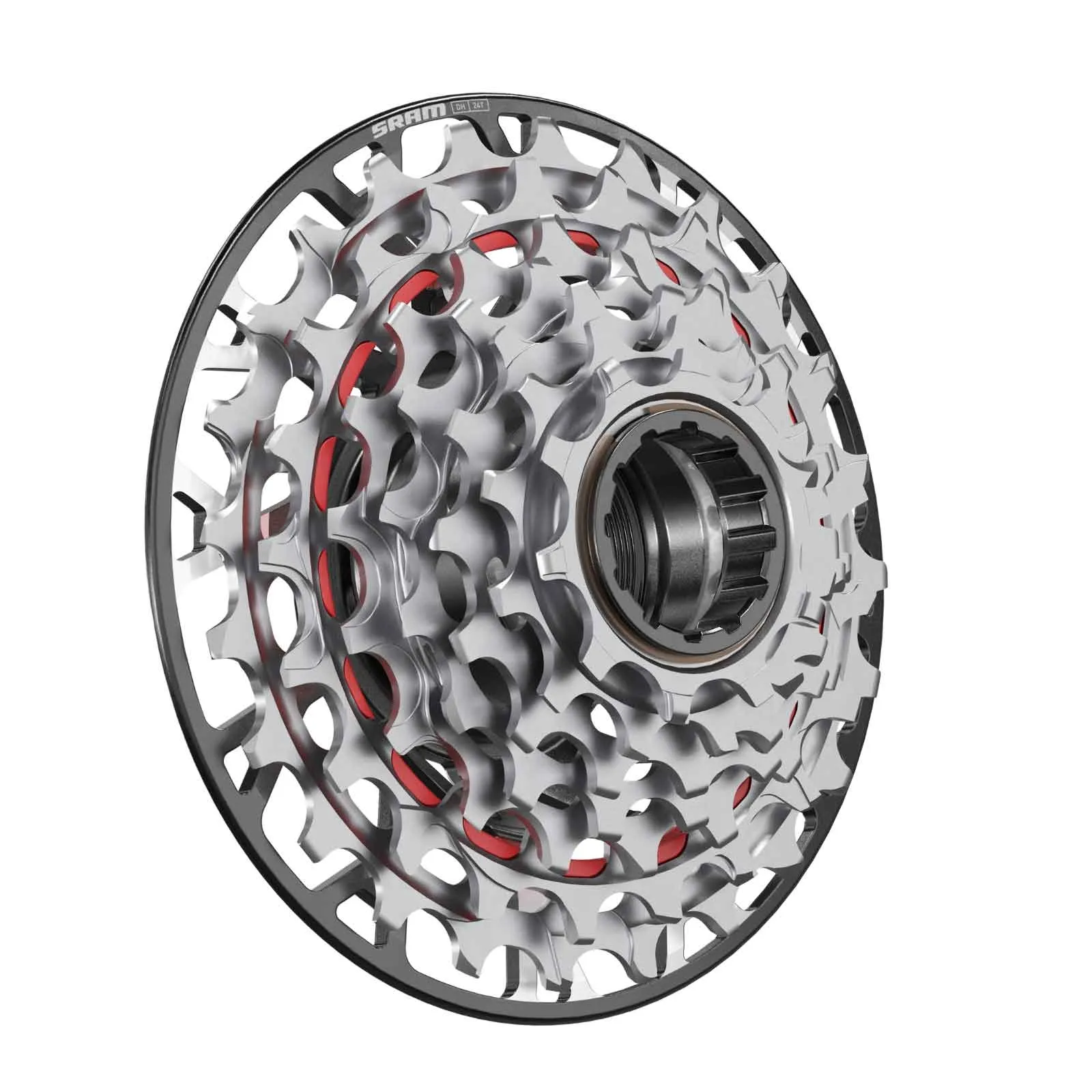

Sram XX DH 7-speed downhill cassette | CS-XS-797-A1

The slimmer version of the XX DH cassette for the new XD Slim freehub bodies.

The 7-speed XX DH Transmission cassette has the right gear ratios to transfer all your power to the wheels. The X-SYNC tooth profile design forms the basis of our most reliable and fastest shifting system to date for DH racing. Coupled with an AXS firmware-controlled shifting sequence, the sophisticated cassette mapping design enables uninterrupted and direct power transfer, as the chain always remains securely and positively engaged.

SRAM XS 797 Cassette Technical Specifications:

• 7-speed, compatible with 12-speed chains and derailleurs
• Optimised for downhill
• Fully compatible with SRAM XX Downhill drivetrain
• Gear ratios: 10-12-14-16-18-21-24 teeth
• SRAM T-Type system
• Material: 4130 chromoly steel
• Compatible only with SRAM XD freehub bodies
• Weight: 145 grams (manufacturer’s specification)

Sram XX DH XS-797 cassette:

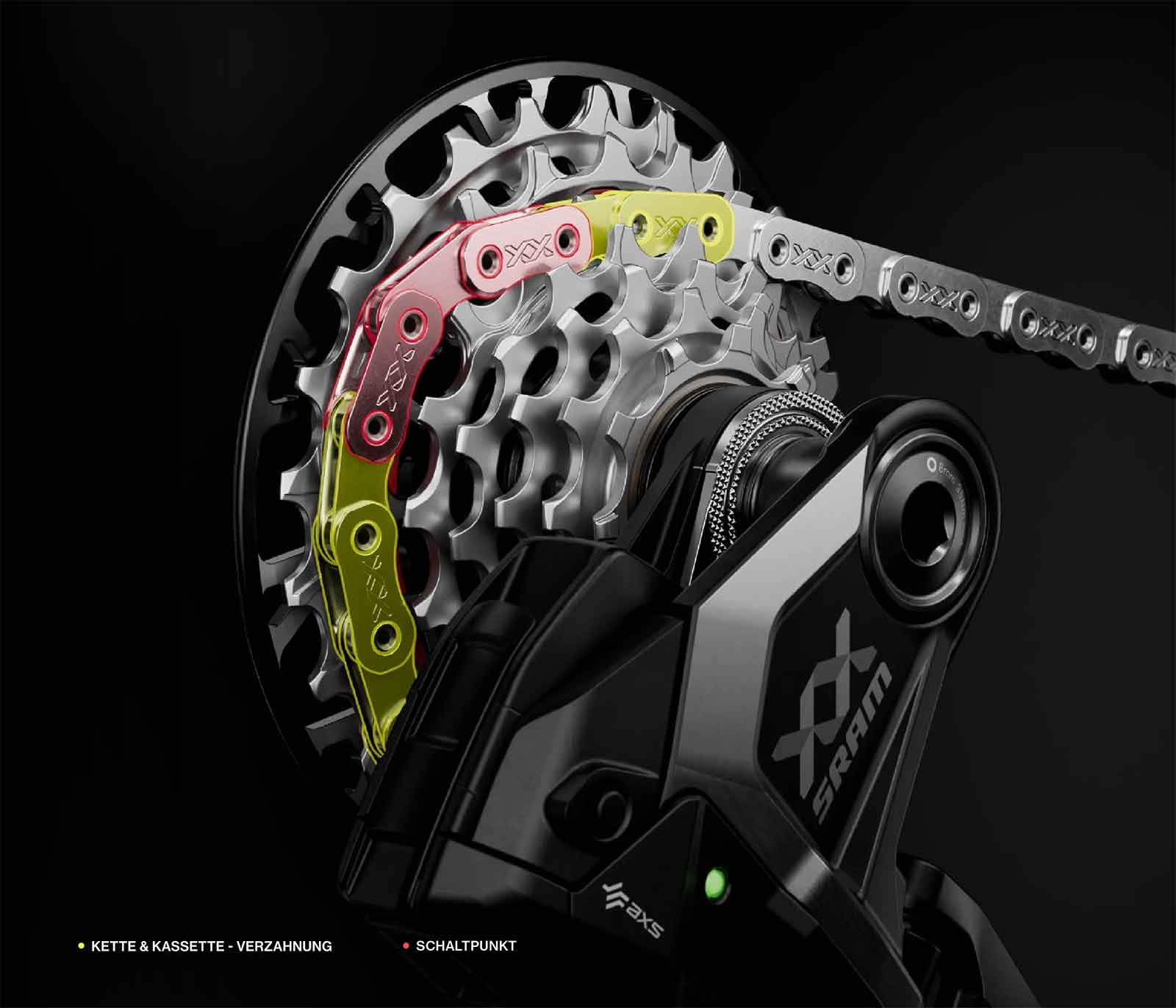

The XX DH Transmission cassette has been developed to ensure small gear steps with maximum power transfer reliability. With its X-Sync tooth profile and specific 7-speed cassette, this is not only the most robust DH cassette we have ever built, but also the one with the best shifting performance. And just like with the Eagle Transmission, shifting under full load is not only possible, but actually better. This means you can always apply maximum pressure to the pedals and ride that section of the course even faster than the competition. Because when it really comes down to milliseconds, the XX DH Transmission could make the decisive difference between qualifying and being eliminated. Available in two versions, with XD or XD SLIM, depending on your rear hub width.

SRAM XG 795 Cassette Compatibility

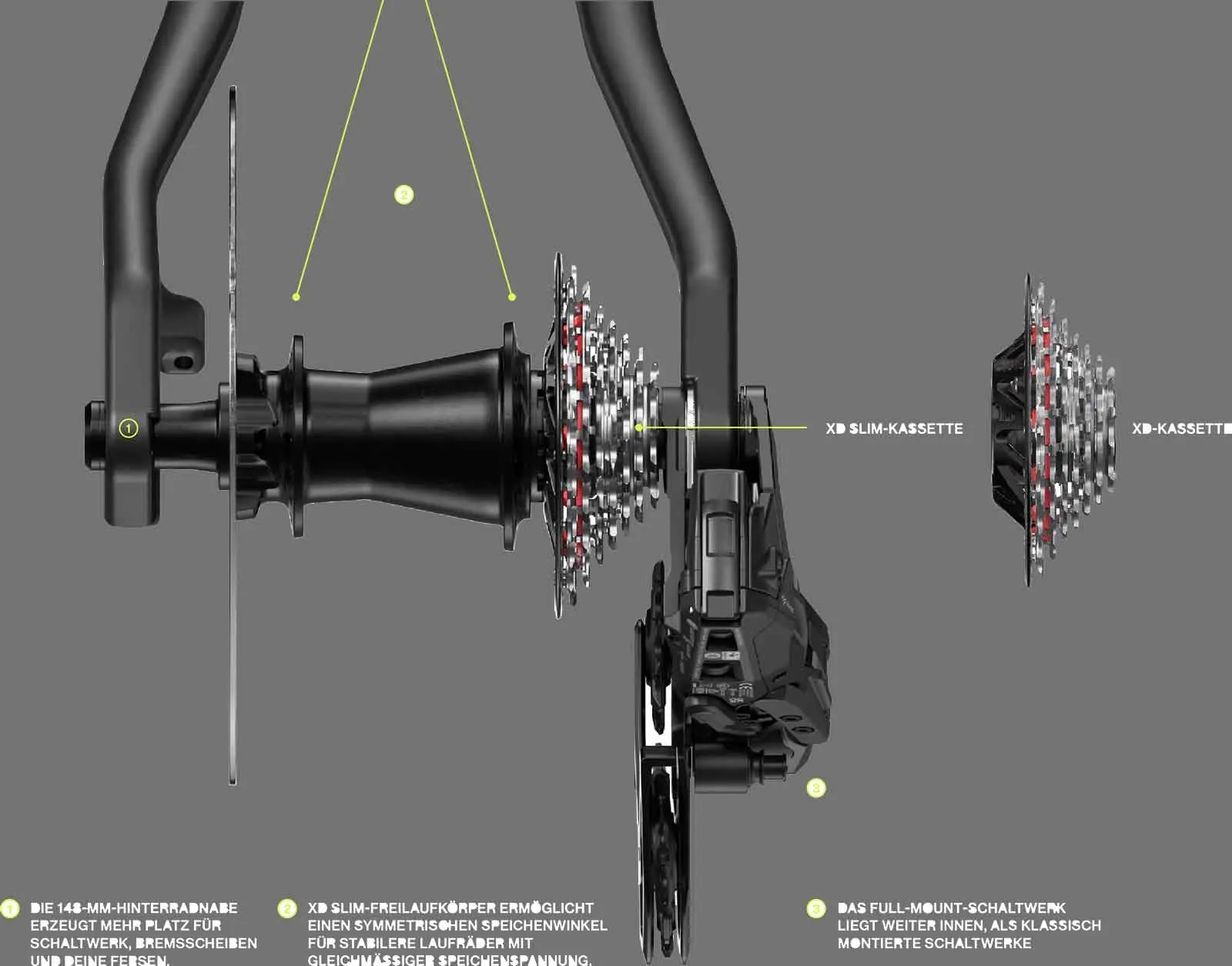

This 7-speed MTB cassette from Sram is compatible with classic freehub bodies and the XD freehub body system. The insertion depth on the XD freehub is 37 mm. The Slim version is also suitable for the new XD Slim freehub bodies.
