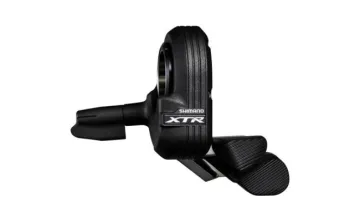

Shimano XTR Di2 SL-W9050 shift lever

The new Shimano XTR 11-speed Di2 electronic components, designed for use ranging from cross-country to enduro. Available with a crankset featuring 1–3 chainrings and an 11-speed cassette with an 11–40 tooth range.

Shimano XTR Di2:

Shimano’s XTR M9050 Di2 shifting system enables the seamless control and immediate response that only digital shifting with the M9000 Rhythm Step drivetrain can offer. This heralds the digital age for mountain bikers, bringing with it a previously unknown level of control whilst riding, regardless of the discipline. The combination of Di2 with close gear ratios means that shifting becomes second nature. Less effort is required when shifting, and superb ergonomics ensure effortless gear changes, allowing your hand to remain firmly on the handlebars, so you always have perfect control over riding manoeuvres and gear changes. With the XTR Di2 system, gear changes are virtually effortless, even on the MTB groupset, achieved by briefly or firmly pressing the Firebolt shift levers.

Shimano XTR Di2 programming:

Individual assignment of shifting functions and shift levers is possible. Control of the front derailleur can be assigned from the left to the right shift lever, and that of the rear derailleur from the right to the left. The programmable Multi-Shift function allows a maximum of eleven gears to be shifted at once whilst the shift lever is held down. Furthermore, the entire drivetrain, including the front derailleur and rear derailleur, can be operated using a single Firebolt shifter. Shimano calls this feature Synchro Shift. Depending on the position of the rear derailleur, the front derailleur knows when to shift and carries out the corresponding gear changes at the crankset. The shifting speed is also programmable.

Shimano XTR Di2 SL-W9050 Firebolt shift lever:

The programmable XTR Di2 shift levers offer a level of shifting comfort never seen before. Extremely short shift travel, virtually instantaneous shifting and the programmable Synchro Shift function are the hallmarks of the XTR Di2 system. Together with the SC-M9050 display, three shifting modes can be set and all relevant information displayed.

Shimano XTR SM W9050 Shift Lever Compatibility:

The Shimano 11-speed XTR Di2 shifter series is only compatible with the XTR 11-speed RDM9050 rear derailleurs and FCM9050 and FDM9050 front derailleurs. The HG-900 chain is recommended. The 11-speed XTR cassettes are also compatible with 9-10-speed Shimano-compatible freehub bodies.

The new Shimano XTR 11-speed Di2 electronic components, designed for use ranging from cross-country to enduro. Available with a crankset featuring 1–3 chainrings and an 11-speed cassette with an 11–40 tooth range.

Shimano Di2 installation:

Installing Shimano Di2 components is almost easier than fitting traditional gear systems. The standardised E-Tube cable connectors and the Junction B distribution box ensure straightforward and quick installation. The shift lever(s) are connected to the display; a cable runs from the display to the Junction B hub, and from there the cables run to the rear derailleur, front derailleur and battery. The battery can be mounted externally on the bottle cage, or internally in the seat tube, down tube or steerer tube. Frames specifically designed for this purpose are required for internal cable routing.

Shimano Di2 Junction B Port:

The Junction B junction box is responsible for connecting the rear derailleur, front derailleur, battery and shift levers. The Junction B port is available in two versions: the internal SMJC41, for fully internal routing, and the SMJC40 for mounting beneath the bottom bracket, should fully internal routing not be possible.

The SMBTC1 battery holder is available as an option. This allows for external mounting of the SMBTR2 round battery. At the same time, the SMBTC1 battery holder provides the Junction B connections – a total of 6 ports – meaning the additional Junction B port is not required. The additional 2 ports not used by the drivetrain can be utilised to power electric suspension components.

Shimano XTR SLW9050 Firebolt Di2 shift lever technology:

• 11-speed
• Handlebar mount clamp
• Syncro Shift programmable
• Weight: 64 grams

Included Shimano XTR SL W 9050 Firebolt shift lever, 11-speed, right-hand

Herstellerinformation: SHIMANO INC., 3-77 Oimatsu-cho, Sakai-ku, Sakai-shi, Osaka 590-8577, Japan, www.shimano.com | EU contact: Shimano Europe BV, High Tech Campus 92, 5656 AG Eindhoven, The Netherlands, www.shimano.com
