Remaining stock

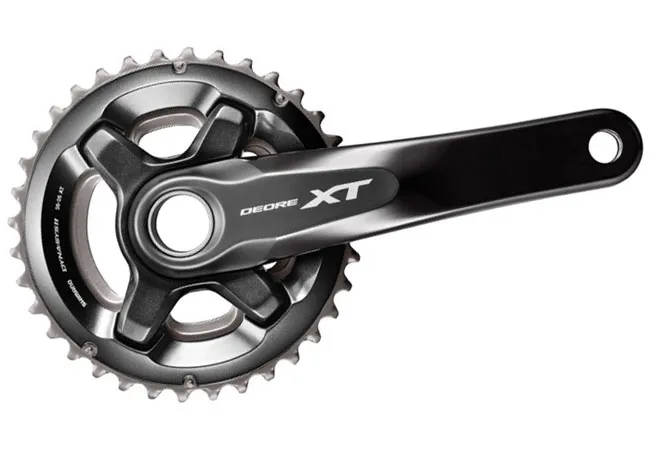

Shimano XT FC-M8000 crankset, 36-26 tooth ratio, 175 mm length, without bottom bracket
Shimano XT FC Crankset - M8000
The new Shimano XT 11-speed components, designed for use ranging from cross-country to enduro. Available with a crankset featuring 1–3 chainrings and an 11-speed cassette with a 11–40 or 11–42 tooth range. One of the major advantages of the XT 8000 series is the compatibility of the cassettes with conventional rear wheels. The XT 11-speed cassettes can be fitted to all freehubs designed for 9- and 10-speed Shimano MTB cassettes.
Shimano XT FC-M8000 Crankset:
The 11-speed Shimano XT crankset with 2 chainrings and, of course, hollow-forged cranks. The XT FC-M8000 for 11-speed drivetrains. The XT cranksets can be easily converted to a 1x or 2x setup. All that is required are the necessary chainrings and chainring bolts. The crank arms of the 11x1 and 11x2 cranksets are identical and feature a mount for the small chainring. In the DynaSys11 system, the derailleurs are designed for chainring spacing with a 10-tooth difference and are perfectly matched to the 11-speed Shimano MTB CSM8000 and CSM9000 cassettes, offering optimal gear ratios
Shimano XT crankset FC - M8000 technology:
- Hollow-forged aluminium crank arms
- Pre-fitted with 2 chainrings
- 24 mm Hollowtech II steel axle
- Bolt pattern 96/64
- Chainline 48.8 mm
- Q-factor 168 mm
- Weight: approx. 718 grams
Compatible chainrings:
- Shimano XT SMCRM80 chainrings 11x1 speed
- Shimano XTR SMCRM90 chainrings 11x1-speed
- Shimano XT FC-M8000 chainrings 11x2-speed
- Shimano XTR FC-M9000/9020 chainrings 11x2-speed
Compatible bottom bracket shells / bottom brackets:
- BSA threaded cups: BC - 1.37 x 24T, installation width 68 - 73 mm Shimano
BBMT800 bottom bracket - Pressfit BB86-92 shell, installation width 86.5–92 mm, press-fit depth 41 mm Shimano
BBMT800PA bottom bracket or Wheels MFG Outboard
BB86-OUT-BB bottom bracket - BB30 shell, installation width 68/73 mm, press-fit depth 42 mm, Wheels MFG
Outboard BB30-OUT bottom bracket - BB30A shell, installation width 68 mm, press-fit depth 42 mm
- Wheels MFG Outboard BB30-OUT bottom bracket
- Pressfit 30 shell, installation width 68/73 mm, press-fit dimension 46 mm, asymmetrical Wheels MFG Outboard
PF30A-OUT bottom bracket - Pressfit 30A housing, installation width 73 mm, press-fit dimension 46 mm, asymmetrical
- Wheels MFG Outboard PF30A-OUT bottom bracket
- BBRight shell, installation width 79 mm, press-fit depth 46 mm Wheels MFG Outboard
BBRIGHT-OUT bottom bracket - BB386 shell, installation width 86.5 mm, press-fit dimension 46 mm, Wheels MFG Outboard
386EVO + 386EVO-SHI bottom bracket - Cage T47 threaded, installation width 68 mm, thread 47 mm Wheels MFG
T47-OUT-SHIM-AC bottom bracket
Scope of delivery Shimano XT FC M8000 crankset:
Shimano XT crank arms FC-M8000, right and left, small and medium chainrings, crank bolt, chainring bolts
