Campa Record Ergopower 12-speed shift and brake levers

The professional Record Ergopower Disc shift and brake levers made of carbon for 12-speed Campagnolo rear derailleurs with Record disc brakes. The 12-speed Record Hydro Disc shifter allows for quick shifting across multiple gears. Compatible with all Campagnolo 12-speed drivetrains. With the ability to adjust both the lever reach and the response, Campagnolo puts a smile on every racer’s face after the first test.

The new mechanical Record Disc groupset with 12x2 gears. The victories this road bike groupset has racked up over the years demonstrate the exceptional quality of the workmanship, the technologies and the high-quality materials that have always distinguished the groupset and made it a unique, outstanding product. Campagnolo offers two sprocket sets for the 12-speed components, covering all riding scenarios. With 11-29 and 11-32 tooth configurations, you get closely spaced cassettes that are also suitable for extreme mountain climbs.

Campa Disc HO Record Ergopower 12s

The tried-and-tested Ultra-Shift Ergopower shifting mechanism with a hydraulic disc brake system. The lever reach and the brake lever’s response can be adjusted, and non-toxic mineral oil is used as the brake fluid. Thanks to the adjustable pressure point, the response can be tailored entirely to personal preference and habits. The shifting mechanism features a variable maximum number of steps when shifting up, depending on the sprocket selected. The Ergopower allows for multiple shifts up or down across up to 5 sprockets. Quick positioning on the desired gear ratio during a strong acceleration on an incline or when approaching a bend: up to 4 gear ratios with the chain on the first 4 sprockets, up to 3 gear ratios with the chain positioned over the 4th sprocket. The carbon fibre brake lever guarantees superior braking performance from any grip position. The pivot point has been repositioned to a new, more effective location. Targeted improvements have been made to achieve higher performance.

Campa Disc Record Flat Mount brake calipers:

The flat-mount calipers of the Campagnolo Record disc brakes offer excellent stability with their 22 mm Penolharz pistons and magnetic pad retention for simple and straightforward replacement. In addition to Campagnolo’s typically perfect workmanship, the brakes feature a wear indicator and smooth, friction-free operation. Campagnolo offers two different brake calipers for the Flat Mount brakes, with a separate model for 140 mm and 160 mm brake discs respectively. The 160 mm version is supplied with mounting bolts. The 160 mm variant cannot be converted to 140 mm. The mounting bolts for the rear brake calipers are not included and are available separately in different lengths to suit different rear triangle thicknesses

We always recommend the Flat Mount brake calipers for 140 mm for both front and rear wheels. These can be easily retrofitted to 160 mm using adapters. The Flat Mount 160 mm brake calipers from Campagnolo can only be used with 160 mm discs.

Campagnolo Record HO Ergopower disc brakes technology:

• Carbon lever housing
• Ball-bearing shift mechanism
• Vari-Cushion hand protection
• No-Bulge cable routing
• Shifting across multiple gears possible
• Adjustable grip width
• Adjustable response
• Flat mount caliper for 140 mm discs
• Organic brake pads
• Hose length 160 mm
• Weight approx. 463 / 115 grams per Ergopower / brake caliper (manufacturer’s specification)

Contents of Campagnolo Record disc brake package:

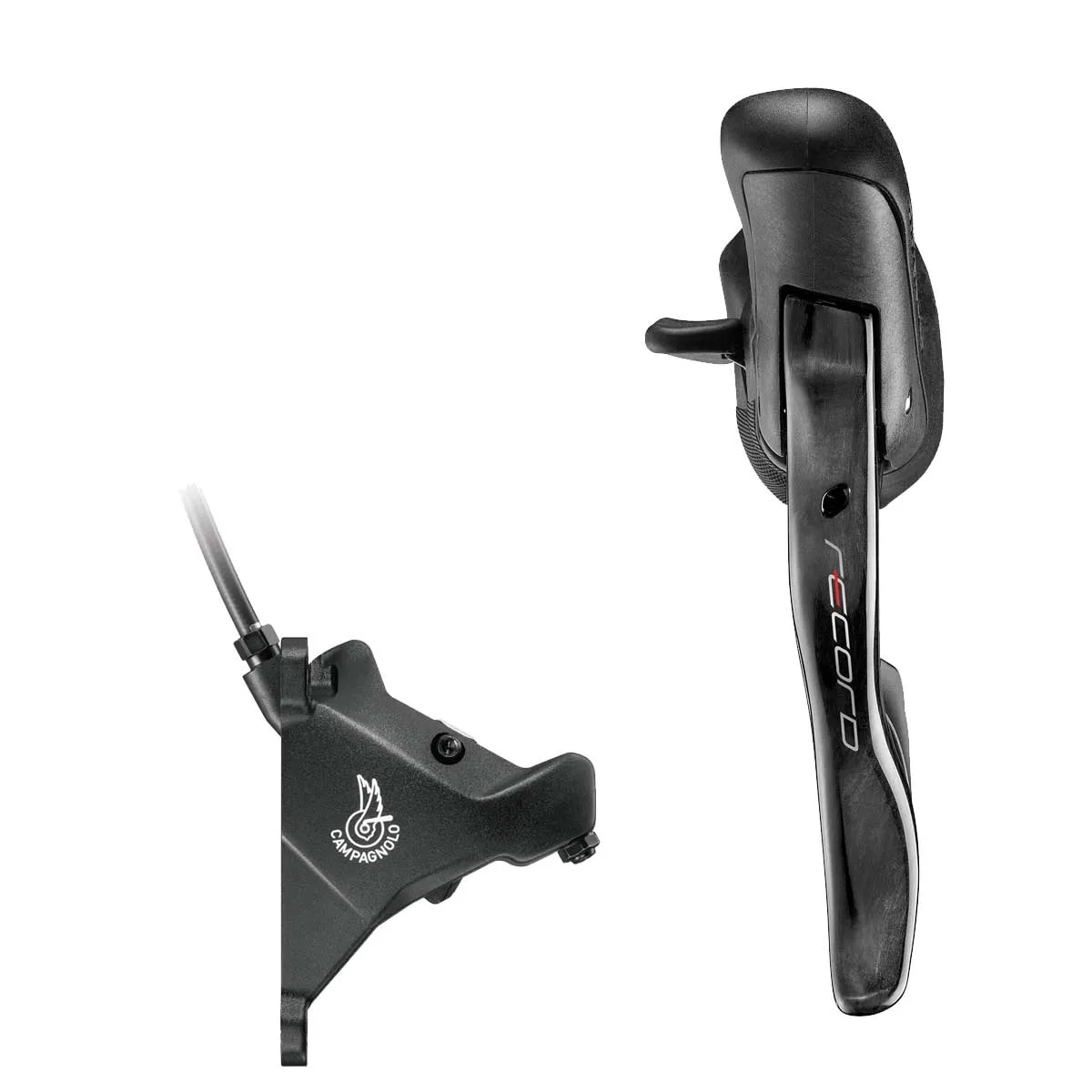

Campa Record Hydro Ultrashift Ergopower shift/brake lever (left), 160 mm disc hoses with hose connectors, flat mount brake caliper for 160 mm discs

Additional bolts are required for the Flat Mount brake caliper. These are available in various lengths and are not included in the scope of delivery.

Available Flat Mount brake caliper bolts:

• Item No. AC18-DBSC19, length 19 mm for rear stays 10–14 mm thick
• Item No. AC18-DBSC24, length 24 mm for rear stays 15–19 mm thick
• Item No. AC18-DBSC29, length 29 mm for rear stays 20–24 mm thick
• Item No. AC18-DBSC34, length 34 mm for rear stays 25–29 mm thick
• Item No. AC18-DBSC39, length 39 mm for rear stays 30–34 mm thick
• Item No. AC18-DBSC44, length 44 mm for rear stays 34–39 mm thick

Available Falt Mount brake caliper adaptors:

• Item No. AC18-DBADR6, rear wheel adapter from 140 to 160 mm disc size

Available Campagnolo brake discs:

• Item No. DB140C3, 140 mm disc size, Centerlock without lockring
• Item No. DB160C3, 160 mm disc size, Centerlock without lockring
