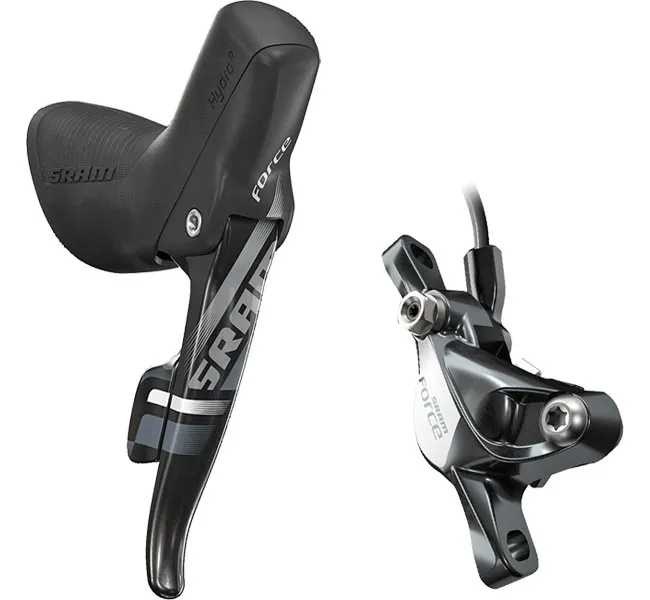

Sram Force 22 hydraulic disc brake lever, right-hand grip, 11-speed, plus Sram Force 22 front disc brake, 950 mm hose, fully pre-assembled
Sram Force 22 Hydraulic Brake and Gear System
The hydraulic shift-brake system from the Sram Force 22 series offers loss-free braking power transmission in combination with the ergonomic Sram Doubletap shift levers. Thanks to simpler material selection, it is significantly cheaper than the Red 22 components but offers the same range of functions.
Sram Force 22 Hydraulic Ergodynamic Shift Levers
The SRAM Force 22 ErgoDynamic shift-brake levers feature a redesigned hydraulic master cylinder with a smaller, more ergonomic housing. The ErgoDynamic design: first-class control and comfort, new reach adjustment adaptable to all hand sizes, DoubleTap and ZeroLos for smooth and precise shifting.The individual Reach Adjus grip width adjustment for brake and shift levers is now even easier to access using a standard Allen key. The new clamp allows for a better fit and adjustment for modern carbon and ergonomic handlebars.
Sram Zero Loss:
The shift travel makes all the difference: conventional shifters require a specific shift travel angle to trigger the shift pawl – a crucial loss of time in a race, even before the actual shifting process begins. The Sram Force road bike lever with zero degrees of lost shift travel means the shift cables move without the slightest delay as soon as the lever is pressed!
Sram Force 22 Hydraulic disc brake
The disc brakes from the Force 22 series are designed for brake rotors up to 160 mm in size. The hydraulic SRAM Force 22 disc brake offers superior braking performance with minimal operating forces and precise modulation. The loss of power and friction caused by cable transmission in classic cable-operated brakes is eliminated with this system. Braking performance remains consistent in all weather conditions. Thanks to the separation of the rim/tyre and the braking surface, issues with heat build-up are elegantly resolved.
Sram Connectamajig
The Connectamajig is a hose connector that ensures simple, quick and convenient installation of the SRAM Force 22 hydraulic braking system. The brake lines can be routed both externally and internally and are compatible with SRAM 22 and SRAM S-700 hydraulic braking systems.
SRAM Force 22 hydraulic shift-brake technology:
- Double Tap with Zero Loss, resulting in 0 degrees of lost shift travel; shift cables move without delay
- Gears: 11/2-speed
- Right-hand shifter mounting
- Material: Carbon brake and shift levers
- Compatibility: SRAM Red 22, Force 22, Rival 22 rear derailleurs
- Other: Ergonomic design and improved comfort with reach adjustment at minimal weight, internally and externally routed shift cables and longer, optimised levers
- Hydraulic brake cylinder
- Easy bleeding
- Required oil: Dot 5.1
- Hose length 950 mm
- Compatible brakes: Sram Red 22, Force 22, Rival 22 hydraulic rim and disc brakes
Sram Force 22 hydraulic disc brake:
- Optimised power and modulation for road and cyclocross
- 18 mm brake caliper piston
- Fully sealed system protects against contamination
- Tool-free reach adjustment
- Recommended brake discs: Sram Centerline
- Recommended brake disc sizes: 160 mm for road, 140 mm for cyclocross
Total weight, shifter and brake: 471 grams including hose
Included in delivery: Sram Force 22 11-speed right-hand shift/brake lever plus hydraulic Force 22 front disc brake including brake pads, shift cables, 950 mm brake hose, fully pre-assembled and bled
Herstellerinformation: SRAM, 1000 W Fulton Market #4, 60607 Chicago, Illinois, United States, http://www.sram.com | Contact EU: SRAM Europe Sales and Services B.V., Paasbosweg 16, 3862 ZS Nijkerk, Netherlands, https://www.sram.com
