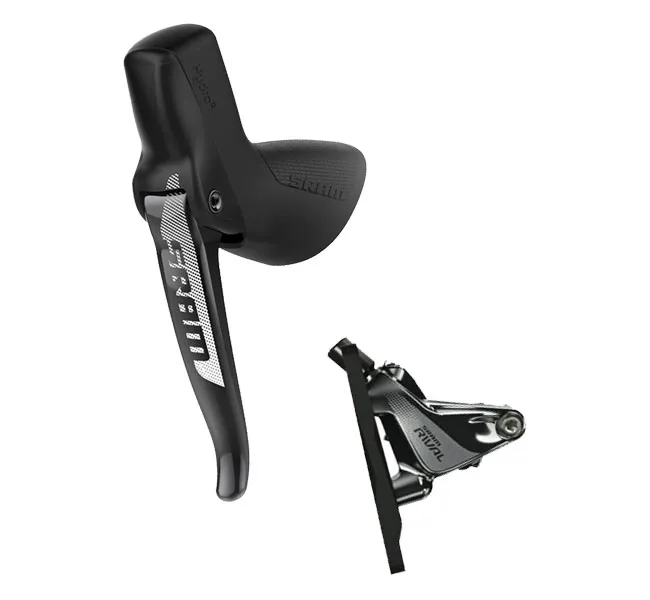

Sram Rival 1 brake lever and disc brake

The Rival 1 hydraulic disc brake offers optimised braking power and modulation for road and cyclocross bikes. The brake lever utilises the HydroR brake platform, with revised ergonomics for an even better grip. This means braking requires even less effort – regardless of the terrain and conditions.

Sram Rival 1 brake lever technology:

• Left-hand hydraulic brake lever
• Material: Aluminium brake and shift levers
• Other: Ergonomic design and improved comfort with reach adjustment and minimal weight, internally and externally routed shift cables, and longer, optimised levers
• Hydraulic brake cylinder
• Easy bleeding
• Compatible brakes: SRAM Red, Force, Rival hydraulic rim and disc brakes
• Compatible rear derailleurs: SRAM Red 22, Force 22, Rival 22
• Must only be used with DOT brake fluid

SRAM Rival disc brake technology:

• Fold Mount
• Optimised power and modulation for road and cyclocross
• 18 mm caliper piston
• Fully sealed system protects against contamination
• Tool-free reach adjustment
• Recommended brake discs: Sram Centerline
• Recommended brake disc sizes: 140 mm, 160 mm

ErgoDynamics

Thanks to longer brake levers, independent reach adjustment for brake and shift levers, and an optimised lever shape, the levers are comfortable and easy to reach for riders of all sizes.

EXACT ACTUATION™

When first introducing our road bike technologies, we once again drew on our proven SRAM MTB 1:1 gear ratio: travel to cable pull to derailleur movement. EXACT ACTUATION™ helps to create a simpler and more stable balance between the design of the derailleur hanger, tight sprocket spacing and precise cable tension. The result: a shifting system that’s a breeze to use – set it once and forget it.

Reach Adjust

The fit and ergonomics of the brake lever are a very personal matter. Riders have individual positioning preferences as well as unique hand sizes and finger lengths. With the reach adjustment, the lever can be adjusted with ease – for maximum control with just one finger.

Flat Mount Caliper Standard:

The Flat Mount Brake Caliper Standard was developed for road bike use, reduces weight and offers a significantly sleeker look. The Flat Mount brake calipers are only compatible with 140 and 160 mm brake disc diameters. The brake calipers are the same for the front and rear wheels.

An adapter is always required for front wheel installation, item no.: 00.5318.018.000. By turning the adapter, the available brake disc size can be changed between 140 and 160 mm.

For rear wheel installation, with a 140 mm disc size, the brake caliper is bolted directly onto the chainstay. An adapter is required for installation with 160 mm brake discs, item no.: 00.5318.018.001. Additionally, bolts are required to mount the brake caliper to the frame. The bolts pass through the chainstay from below directly into the brake caliper or into the adapter. These are also available in different lengths to suit the varying thicknesses of the frame’s rear stays.

Flat mount adapters from other manufacturers can also be used. However, the bolts vary depending on the manufacturer; please use only the original SRAM mounting bolts

Included in delivery:

• 1 x Sram Rival 1 left-hand brake lever
• 1 x SRAM Rival 1 two-piece flat-mount brake caliper with organic brake pads, including rear springs
• Brake hose and adapter are included
