Sram Rival 22 Disc Brake and Gear System

The hydraulic brake-shift system from the Sram Rival 22 series offers loss-free braking power transmission in combination with the ergonomic Sram Doubletap shift levers. Affordable thanks to simpler material selection, yet still delivering the same braking power.

Flat Mount Standard:

The new Flat Mount caliper standard for road bike brakes reduces weight and offers a significantly sleeker look. With the Flat Mount standard, the rear caliper sits directly on the chainstay; no adapter is required for caliper mounting. The bolts pass through the chainstay from below directly into the brake caliper. A flat adapter is still required on the fork. The adapter is screwed onto the rear of the fork leg, with the brake sitting directly on the adapter. By flipping the adapter, the available brake disc sizes of 140 and 160 mm can be changed.

Sram Rival 22 hydraulic Ergodynamic shift lever

The Sram Rival 22 ErgoDynamic brake and shift levers feature a redesigned hydraulic cylinder with a smaller, more ergonomic housing. The ErgoDynamic design: first-class control and comfort, new reach adjustment adaptable to all hand sizes. The individual reach adjustment (Reach Adjus) for brake and shift levers – now even easier to access with a standard Allen key. The new clamp allows for a better fit and adjustment for modern carbon and ergonomic handlebars.

Sram Rival 22 Hydraulic Disc Brake

The disc brakes from the Rival 22 series, designed for brake disc sizes up to 160 mm. The hydraulic Sram Rival 22 disc brake offers optimum braking performance with minimal operating forces and precise modulation. The loss of force and friction caused by cable transmission in classic cable-actuated brakes is eliminated with this system. Braking performance remains consistent in all weather conditions. Thanks to the separation of the rim/tyre and the braking surface, issues with heat build-up are elegantly resolved.

Sram Connectamajig

The Connectamajig is a hose connector that ensures simple, quick and convenient installation of the Sram Force 22 hydraulic braking system. The brake lines can be routed both externally and internally and are compatible with Sram 22 and Sram S-700 hydraulic braking systems.

SRAM Rival 22 hydraulic shift-and-brake technology:

• DoubleTap shifting system
• Gears: 11-speed
• Right-hand shifter mounting
• Material: Aluminium brake and shift levers
• Compatibility: Sram Red 22, Force 22, Rival 22 rear derailleurs, Sram Red 22, Force 22, Rival 22 Yaw front derailleurs (2-speed)
• Other: Ergonomic design and improved comfort with grip width adjustment and minimal weight, internally and externally routed shift cables and longer, optimised levers
• Hydraulic brake cylinder
• Easy bleeding
• Required oil: DOT 5.1
• Hose length 950–1800 mm
• Compatible brakes: Sram Red 22, Force 22, Rival 22 hydraulic rim and disc brakes

SRAM Rival 22 hydraulic flat-mount disc brake:

• Flat Mount standard
• Optimised power and modulation for road bikes and cyclocross
• 18 mm brake caliper piston
• Fully sealed system protects against contamination
• Tool-free reach adjustment
• Recommended brake discs: Sram Centerline
• Recommended brake disc sizes: 160 mm for road, 140 mm for cyclocross

Total weight per brake, shifter and brake: 493 grams including hose

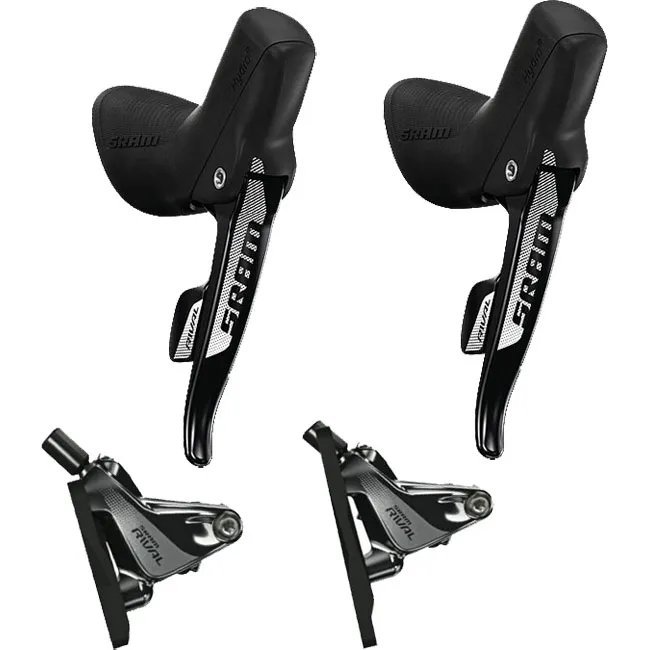

Included in delivery: Sram Rival 22 shift-brake lever (11-speed right, 2-speed left) plus hydraulic Rival 22 front and rear flat-mount disc brakes including brake pads, shift cables, 950 and 1800 mm brake hoses, fully pre-assembled and bled
