Spare parts Shimano ST-R785 Hydraulic Di2 Dual Control

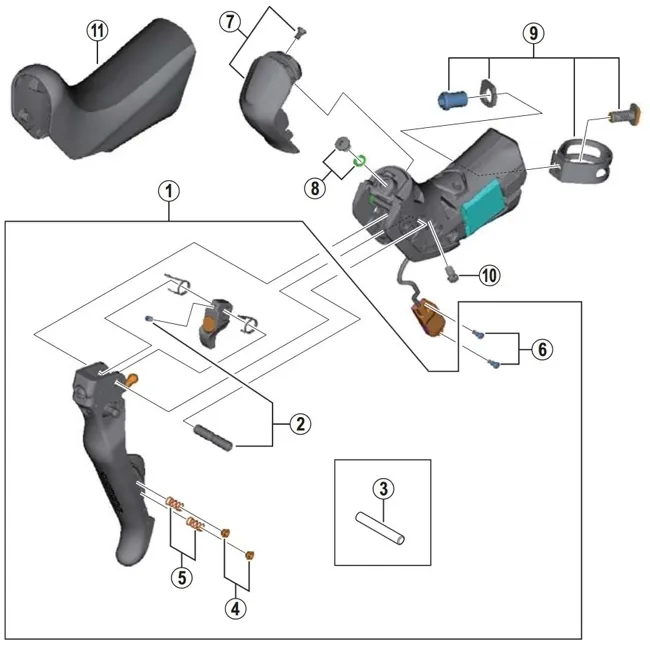

Included in the scope of delivery: item number 4 from the exploded view.

Spare parts for the Di2 ST R785 shift-brake levers. The lever body itself is not available as a spare part.

The Shimano Di2 STR785 electronic shift-brake levers for BRRS785 hydraulic disc brakes. Shifting and braking taken to a whole new level. Extremely fast and precise. Thanks to electronic transmission of the shifting commands, these are executed without delay. Operation is similar to that of the mechanical STI levers; shifting is done at the touch of a button. The new 11x2 shift levers are also equipped with the programmable Multishift function

Shimano Di2 ST R785 Hydraulic Dual Control spare parts:

• No. 1: Y07T98010, shift lever without grip housing, right side
• No. 1: Y07R98010, shift lever without grip housing, left side
• No. 2: Y07T98050, lever axle with screw
• No. 3: Y07T27000, mounting tool for lever axle
• No. 4: Y6X098020, Shift spring cap (2 pcs)
• No. 5: Y6RX98080, shift springs (2 pcs)
• No. 6: Y6RX98060, fixing screws for gearshift unit
• No. 7: Y07T98060, nameplate with screws, right-hand side
• No. 7: Y07R98020, Nameplate with screws, left side
• No. 8: Y8V398010, Bleed screw
• No. 9: Y07T98070, clamp for gear lever
• No. 10: Y07T10000, Stop adjustment screw
• No. 11: Y07T98080, Pair of rubber grips
