Shimano Ultegra ST 6700 spare part

This spare part for the Ultegra ST-6700 brake/shift lever corresponds to figure 15 in the exploded view.

Shimano Ultegra ST-6700 brake/shift lever spare parts

• No. 1: Y6SC98010, R.H. Main Lever Assembly
• No. 1: Y6SC98020, L.H. Main Lever Assembly
• No. 2: Y6SC98030, R.H. Name Plate A and Fixing Screw
• No. 2: Y6SC98040, L.H. Name Plate A and Fixing Screw
• No. 3: Y6SC98050, R.H. Name Plate B and Fixing Screws
• No. 3: Y6SC98060, L.H. Name Plate B and Fixing Screws
• No. 4: Y6SC20000, R.H. Main Lever Support
• No. 4: Y6SD70000, L.H. Main Lever Support
• No. 5: Y6RU87010, L.H. Release Lever Support
• No. 5: Y6RU87010, R.H. Release Lever Support
• No. 6: Y6SC98070, Lever Axle and E-ring
• No. 7: Y6SC98190, R.H. Shifting Lever Unit, Bracket Cover: Black
• No. 7: Y6SC98200, L.H. Shifting Lever Unit, Bracket Cover: Black
• No. 8: Y6SC98100, R.H. Top Cover (Unitless) and Fixing Screws
• No. 8: Y6SC98110, L.H. Top Cover (unitless) and fixing screws
• No. 9: Y6SC98210, Unit Cover and Fixing Screw
• No. 10: Y6RU54000, SL Cable Cover
• No. 11: Y6RT46000, R.H. SL Cable Guide
• No. 11: Y6SD66000, L.H. SL Cable Guide
• No. 12: Y6SC98150, Clamp Band Unit, ø23.8 mm – ø24.2 mm
• No. 13: Y6SC98220, R.H. Bracket
• No. 13: Y6SC98230, L.H. Bracket
• No. 14: Y6SC76000, R.H. Adjustment Block, 5 mm
• No. 14: Y6SC76010, L.H. Adjustment Block, 5 mm
• No. 14: Y6SC75000, R.H. Adjustment Block, 10 mm
• No. 14: Y6SC75010, Left-hand adjustment block, 10 mm

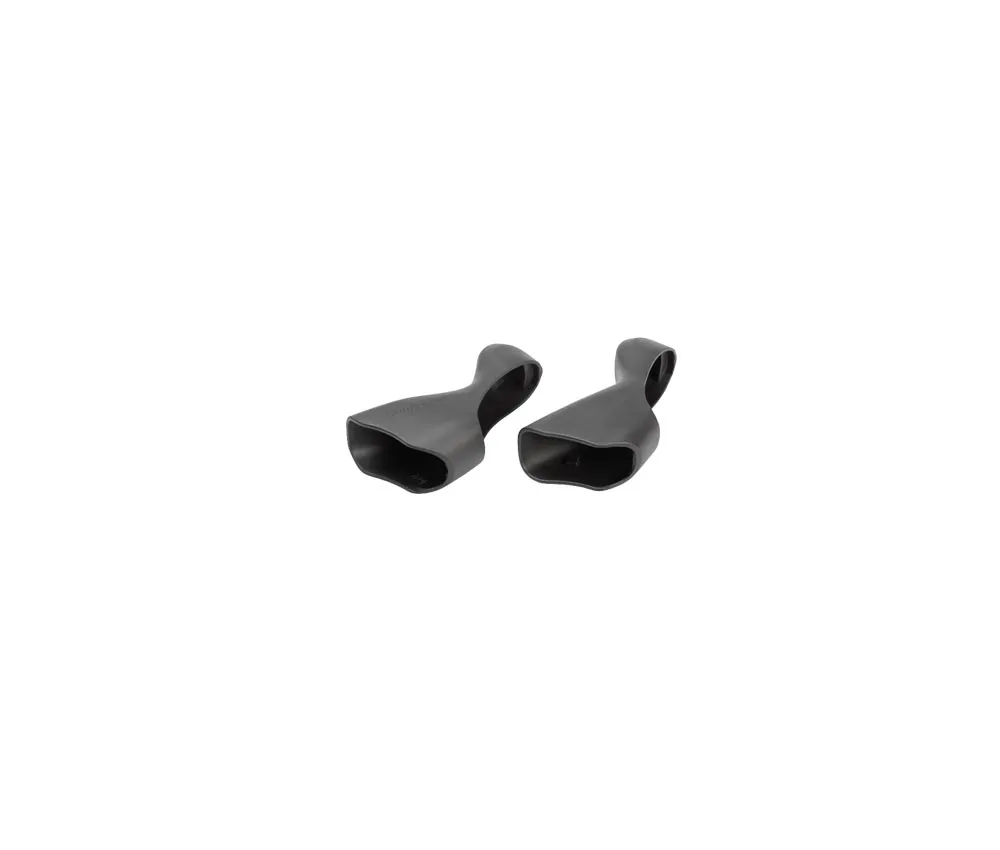

• No. 15: Y6SC98180, Bracket Covers, Black/Pair
• No. 15: Y6SC98240, Bracket Covers, White/Pair
• No. 16: Y6RT68000, Tool A for E-ring
• No. 17: Y6RT66000, Tool B for E-ring
