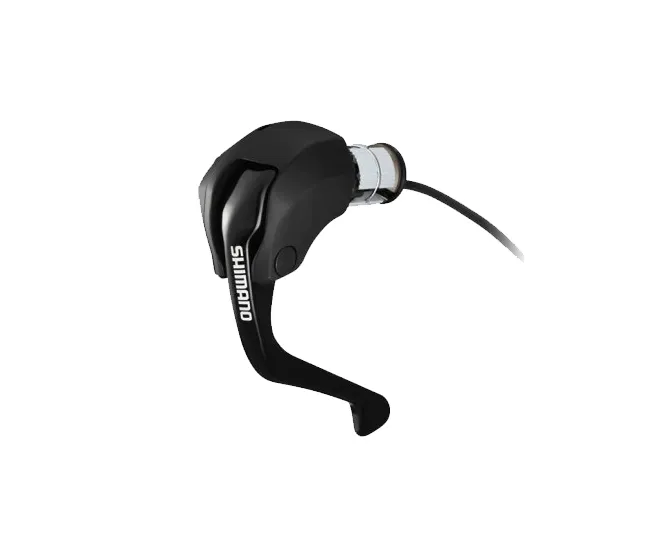

Shimano Ultegra Di2 ST R80600 Triathlon Shift-Brake Levers

These shift levers are compatible with all Shimano 11- and 12-speed Di2 rear derailleurs and front derailleurs. For 12-speed installation, the shift levers require the latest firmware version.

Shimano Di2 STR8060 Ultegra Shift-Brake Levers:

The brake levers are made from composite materials and do not feature mechanical shifting components, allowing for significant weight savings with the ST-R8060 shift-brake levers. Equipped with the programmable Syncro Shift function, the shift-brake levers can be programmed entirely to your personal preferences. The new triathlon and time trial shift-brake levers are now each equipped with just one programmable button. Programming is easily carried out via a tablet, smartphone or computer.

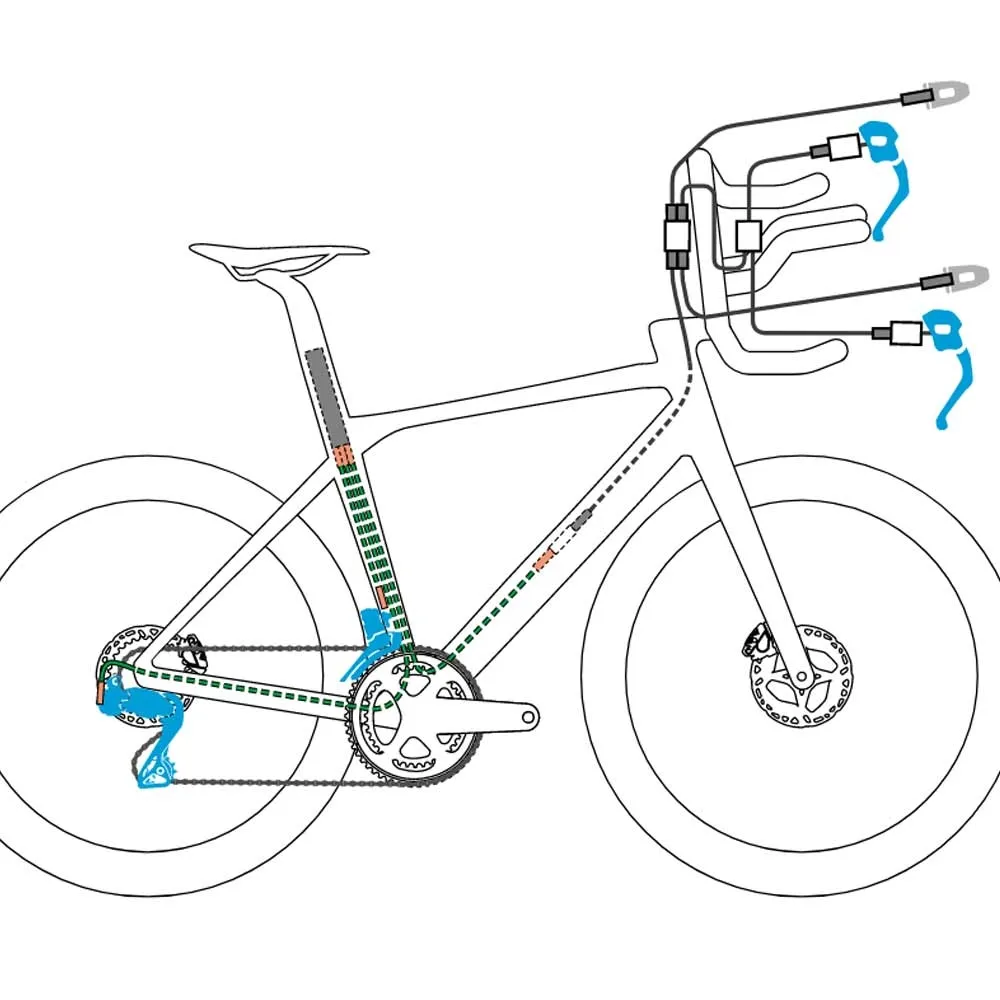

11-speed Di2 installation:

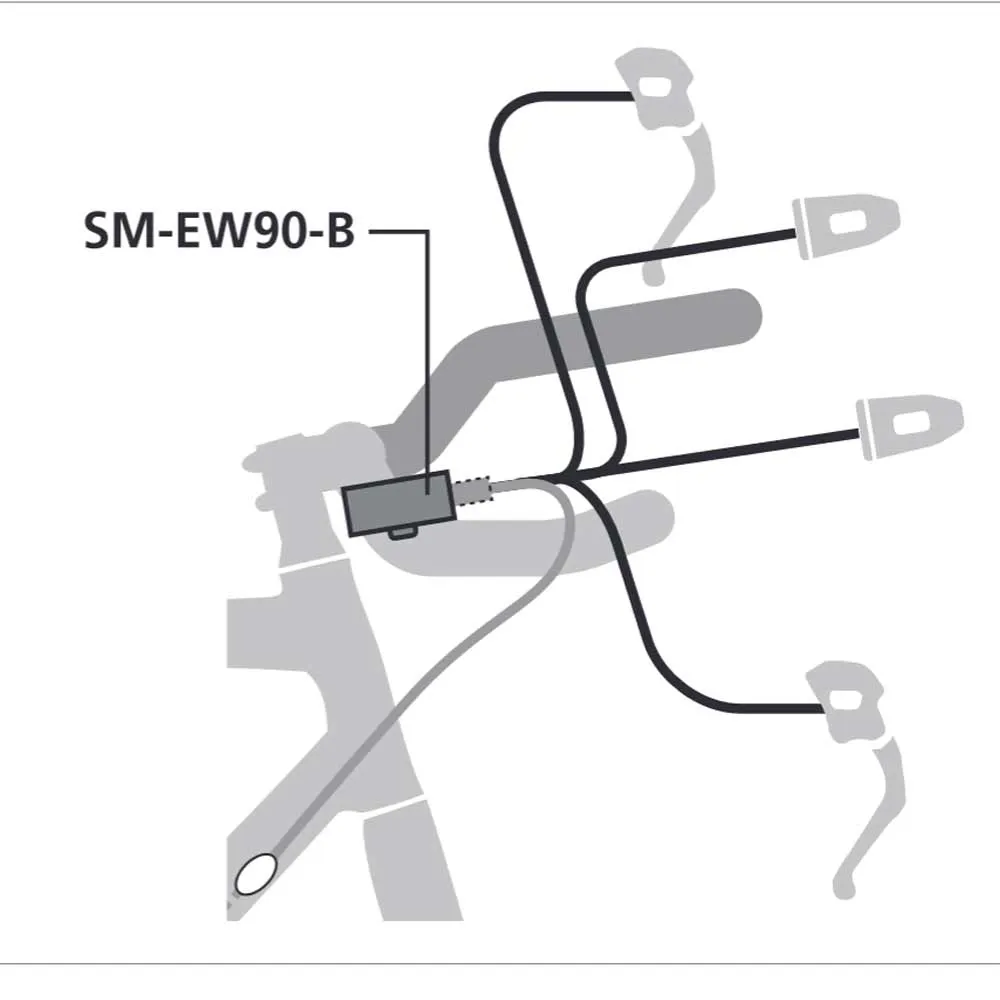

To operate the Dura-Ace Di2 shift levers with the 11-speed Dura-Ace or Ultegra drivetrains, the EW-SD50 cable set and SM-EW90 Junction Port for Shimano’s Di2 system, complete with a Quick Mount battery holder and mounting hardware, are required. The EW-SD50 cable set includes connectors for the rear derailleur, front derailleur and battery pack. In addition, the Cockpit Junction Port SM-EW90 is required for connecting the Dura Ace Di2 STI shifters. To use the wireless function on the 11-speed Di2, the new BT-DN110 battery and the EW-WU111 Bluetooth module are also required.

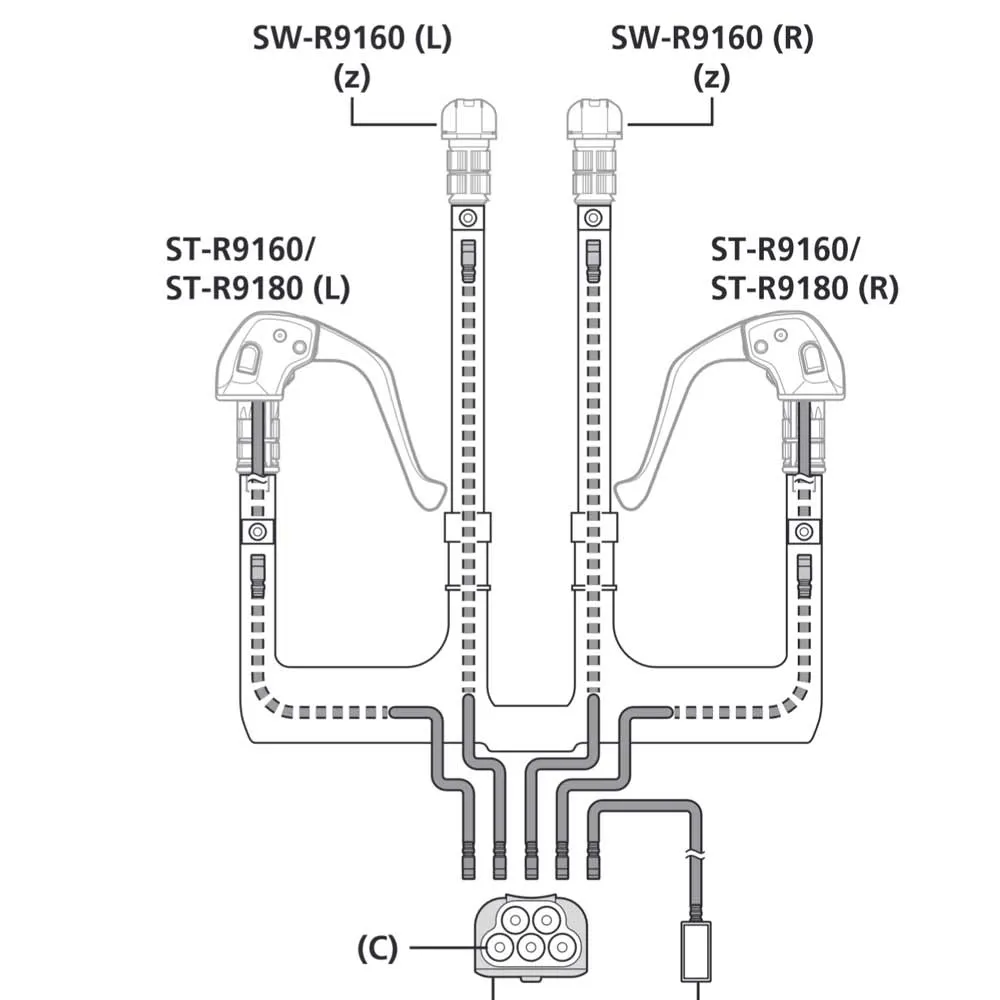

12-speed Di2 installation:

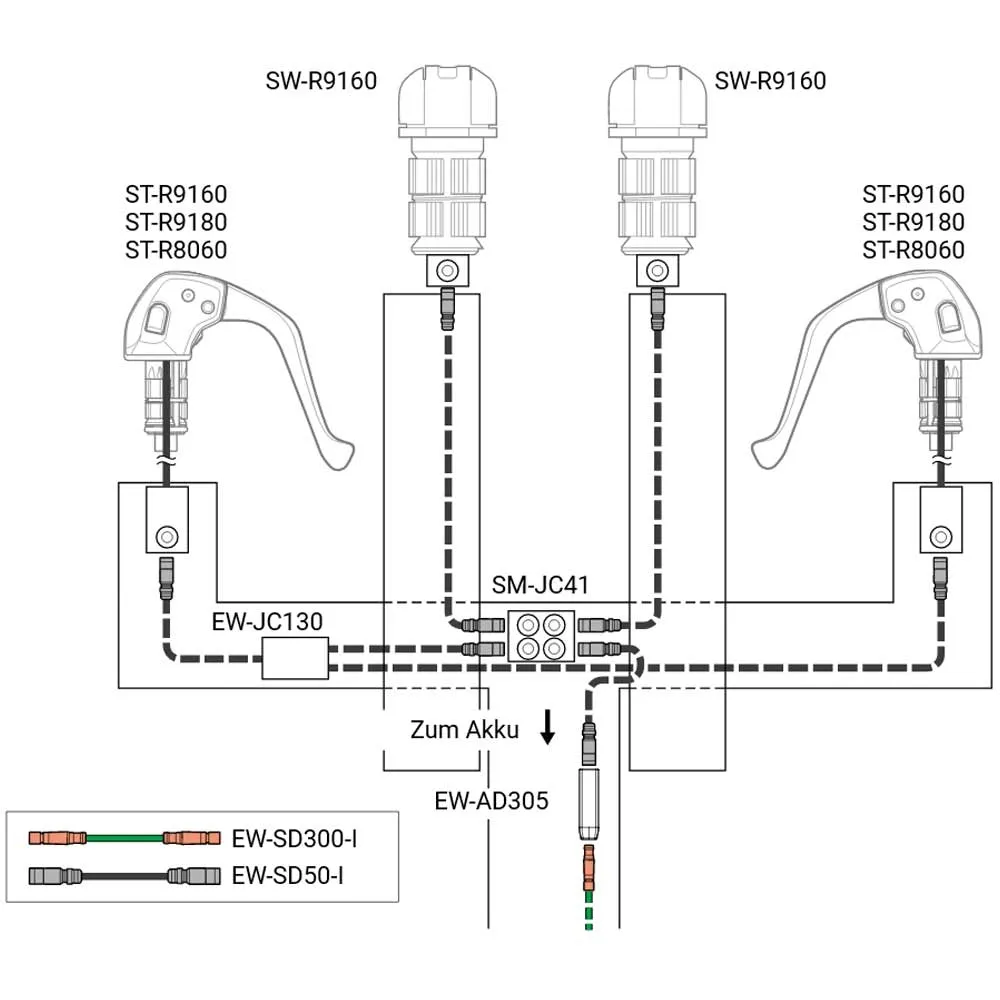

To operate the Dura-Ace Di2 shift levers with the 12-speed Dura-Ace, Ultegra or 105 drivetrains, the EW-SD50 cable and SM-JC41 junction port, the EW-JC130 Y-cable and the EW-AD305 adapter are required. The latest Di2 firmware is also required.

Shimano Ultegra Di2 ST-8060 shift lever technical specifications:

• for 12/11/2-speed drivetrains
• Syncro Shift
• Compatible with 12-speed and 11-speed Dura-Ace and Ultegra, 105 Di2 front derailleurs and rear derailleurs.
• Includes E-Tube cable, permanently soldered
• Compatible handlebar inner diameter: 19.0–22.5 mm
• Weight: approx. 124 grams, set
