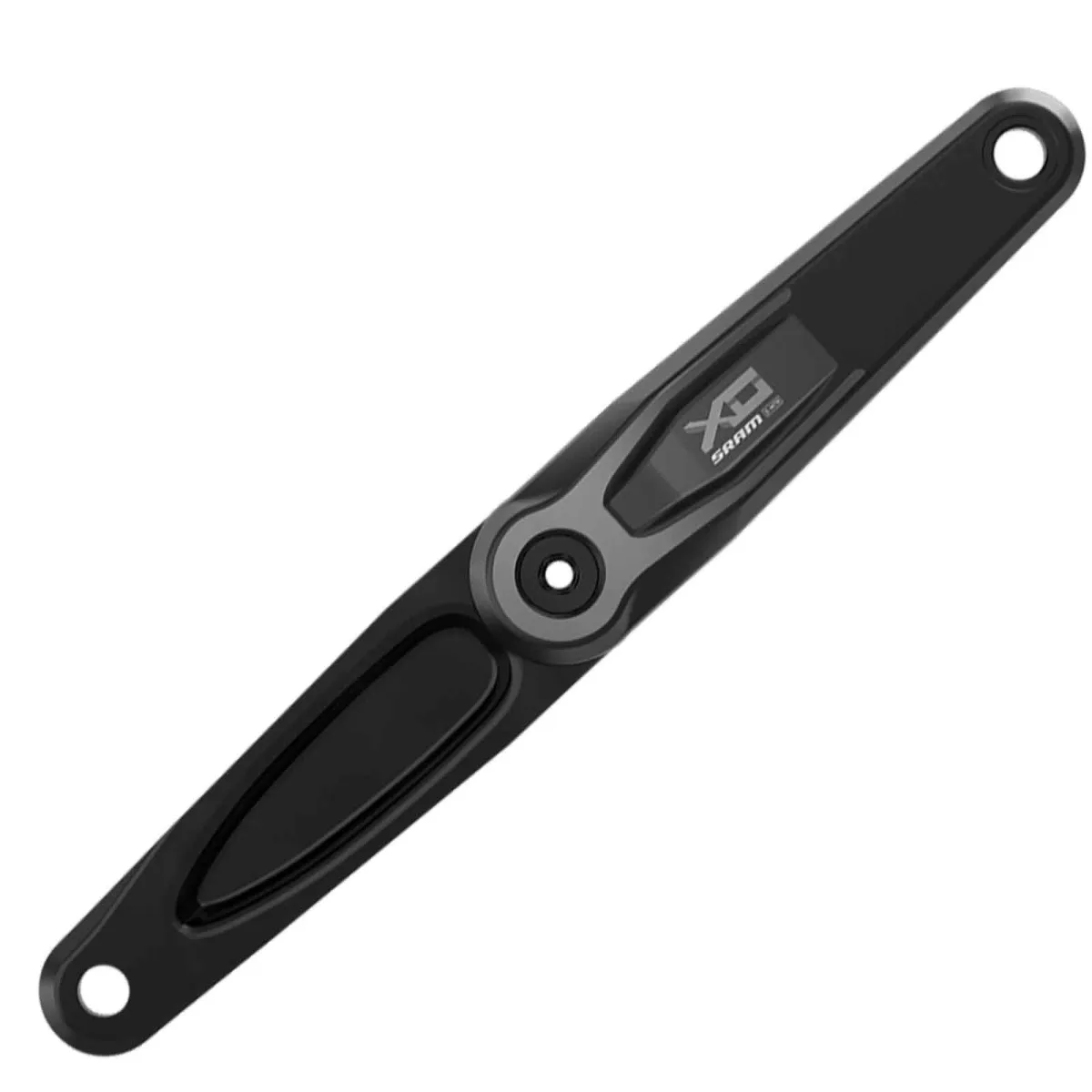

Sram X0 Eagle Transmission Cranksets

The high-end aluminium Sram X0 Eagle Transmission crankset for e-bikes with mid-drive motors and ISIS interface, available in crank lengths from 150 mm to 170 mm

Included in delivery:

• Sram X0 Eagle Transmission crank arms, ISIS system, right and left

Sram X0 Eagle Transmission ISIS e-bike crankset arms – technical specifications and dimensions:

• Application: E-bike
• Crank arm material: Aluminium
• Chainring: None
• ISIS axle mount
• Gap Cap available separately for Bosch and Brose
• Weight: 490 grams (manufacturer’s specification)

Sram X0 EAGLE crankset, FC-X0-PA-D1

Visual distinctiveness without compromise. The X0 Eagle E-MTB crankset offers the robustness you’d expect from X0 and has been optimised for E-MTB use. The striking all-aluminium design is characterised by a perfectly balanced ratio of stiffness to weight. The X0 Eagle E-MTB crankset and the X0 Eagle Transmission (T-Type) direct-mount chainring offer first-class shifting performance, reliable strength and optional bolt-on guards.

ISIS Drive Interface / Axle System:

The ISIS Drive system’s axle mount features 10 evenly spaced grooves. The tapered grooves themselves have a diameter of 6 mm and are angled at 1 degree to the spindle axis. The insertion depth of the crank arms, corresponding to the length of the grooves, is 16 mm and is limited by a stop.

Most mid-drive motors on e-bikes use the ISIS Drive Interface for crank assembly.

Sram Gap Cap / Crank Cap:

This cap is fitted between the right-hand crank arm and the motor/chainring to ensure a clean transition between the crank and the motor. The cap also keeps out dirt and debris. Different caps are available to suit the various aluminium and carbon cranks and the different motors.
