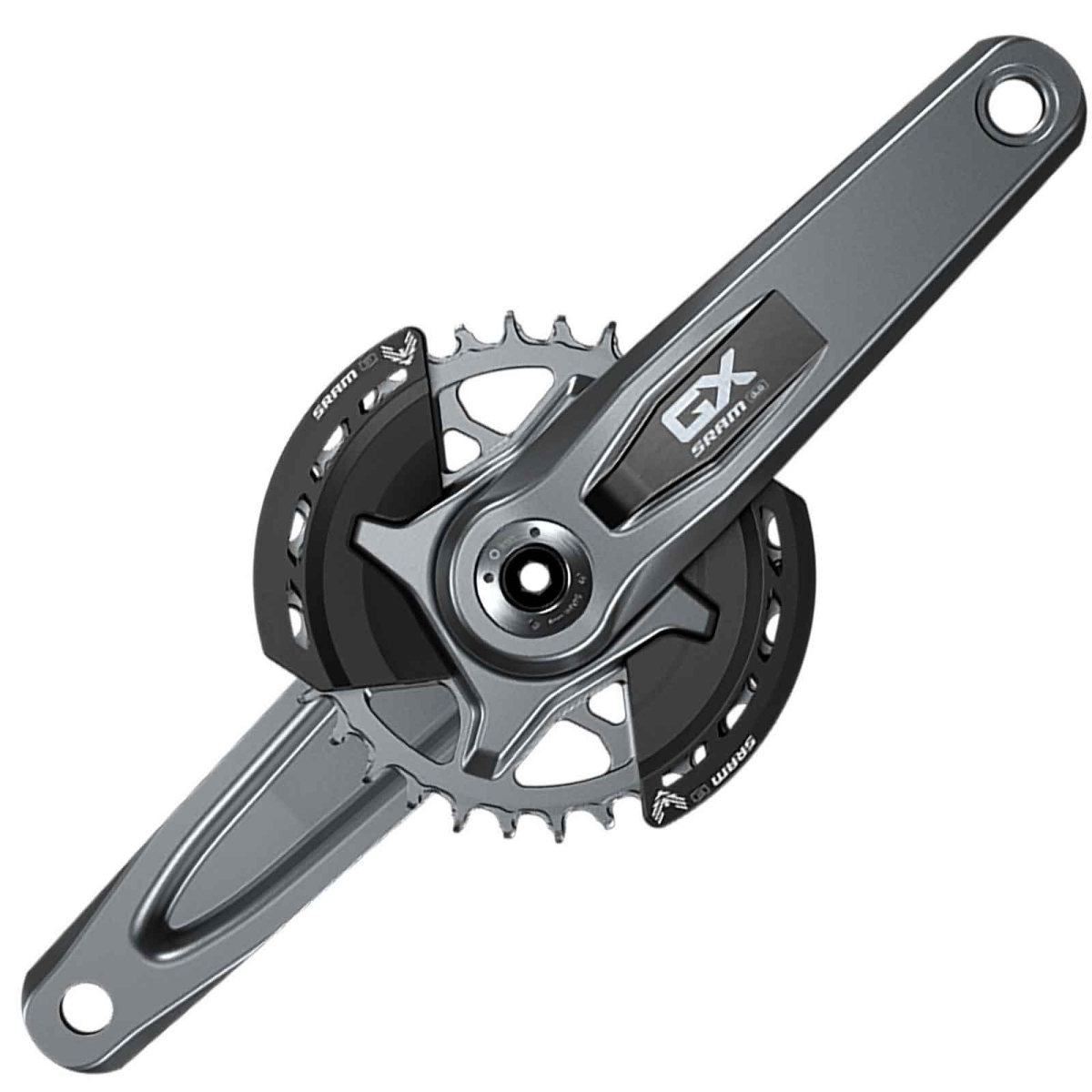

Sram GX Eagle Transmission Crankset

The GX Sram Eagle Transmission crankset with the DUB Wide axle system, the robust MTB and e-bike crankset made from forged aluminium

Included in delivery:

• Sram GX Eagle Transmission crank arms (Dub system), right and left, 32-tooth chainring, bashguards

Sram GX Eagle Transmission crankset specifications and dimensions:

• Application: All Mountain, Trail, Enduro, E-bike
• Crankset arm material: Aluminium
• Chainring material: Steel
• Includes bashguards
• Bottom bracket axle: DUB 28.88 mm diameter
• Boost compatible
• Chainline 55 mm
• Q-factor 174 mm
• Weight: 740 grams without bottom bracket, manufacturer’s specification
• Compatibility: 12-speed only with T-type chains
• Supplied without bottom bracket

Sram GX EAGLE crankset, FC-GX-D1

The GX Eagle Transmission DUB crankset offers discerning riders a perfect balance of form and function. This crankset combines pure performance with excellent value for money. The two independently removable composite bashguards provide additional durability and allow riders to cope with the scrapes and scratches that occur off-road. They protect and preserve the unique shape of the forged aluminium design, offering maximum performance with minimal space requirements.

SRAM DUB Wide Axle Bottom Bracket System:

The Wide MTB cranks have a 3 mm longer axle than the previous DUB MTB Boost cranks. The Sram DUB cranks are suitable for all standard bottom bracket shells. The axles have a diameter of 28.88 mm. Axle play is adjustable via a preloader. The Sram DUB cranks have a completely proprietary standard and are only compatible with DUB bottom brackets, not with other standards or bottom brackets.

SRAM Direct Mount T-Type chainring:

Chainrings made from stamped steel for maximum durability, with two bashguards,

SRAM 8-point Direct Mount chainring mount:

The Direct Mount chainrings feature an 8-point bolt pattern and are compatible with all MTB cranksets featuring this mount.

Compatible bottom bracket shells – DUB bottom brackets

• BSA 1.37x24 TPI thread, shell width 68–73 mm
  Sram DUB Wide MTB bottom bracket Part No. 00.6418.015.005
• BSA 1.37x24 TPI thread, Super Boost+ 73 mm shell width
  , SRAM DUB bottom bracket, Part No. 00.6418.019.000
• BSA 1.37x24 TPI thread, Super Boost+ 73 mm shell width for E-type derailleurs,
  Sram DUB bottom bracket, Part No. 00.6418.015.005
• Pressfit BB92 press-fit diameter 41 mm, shell width 68–73 mm,
  SRAM DUB Wide MTB Pressfit BB92 bottom bracket, part no. 00.6418.016.005
• Pressfit BB92, press-fit depth 41 mm, shell width Super Boost+ 92 mm
  , SRAM DUB Wide MTB Pressfit BB92 bottom bracket, part no. 00.6418.020.000
• BB30, press-fit depth 42 mm, shell width 73 mm,
  SRAM DUB Wide MTB BB30 bottom bracket, item no. 00.6418.017.004
• Pressfit 30, press-fit diameter 46 mm, shell width 73 mm,
  SRAM DUB Pressfit 30 bottom bracket, item no. 00.6418.018.006
• Pressfit 30, press-fit diameter 46 mm, shell width 83 mm
  Sram DUB Pressfit 30 bottom bracket Part No. 00.6418.028.006
