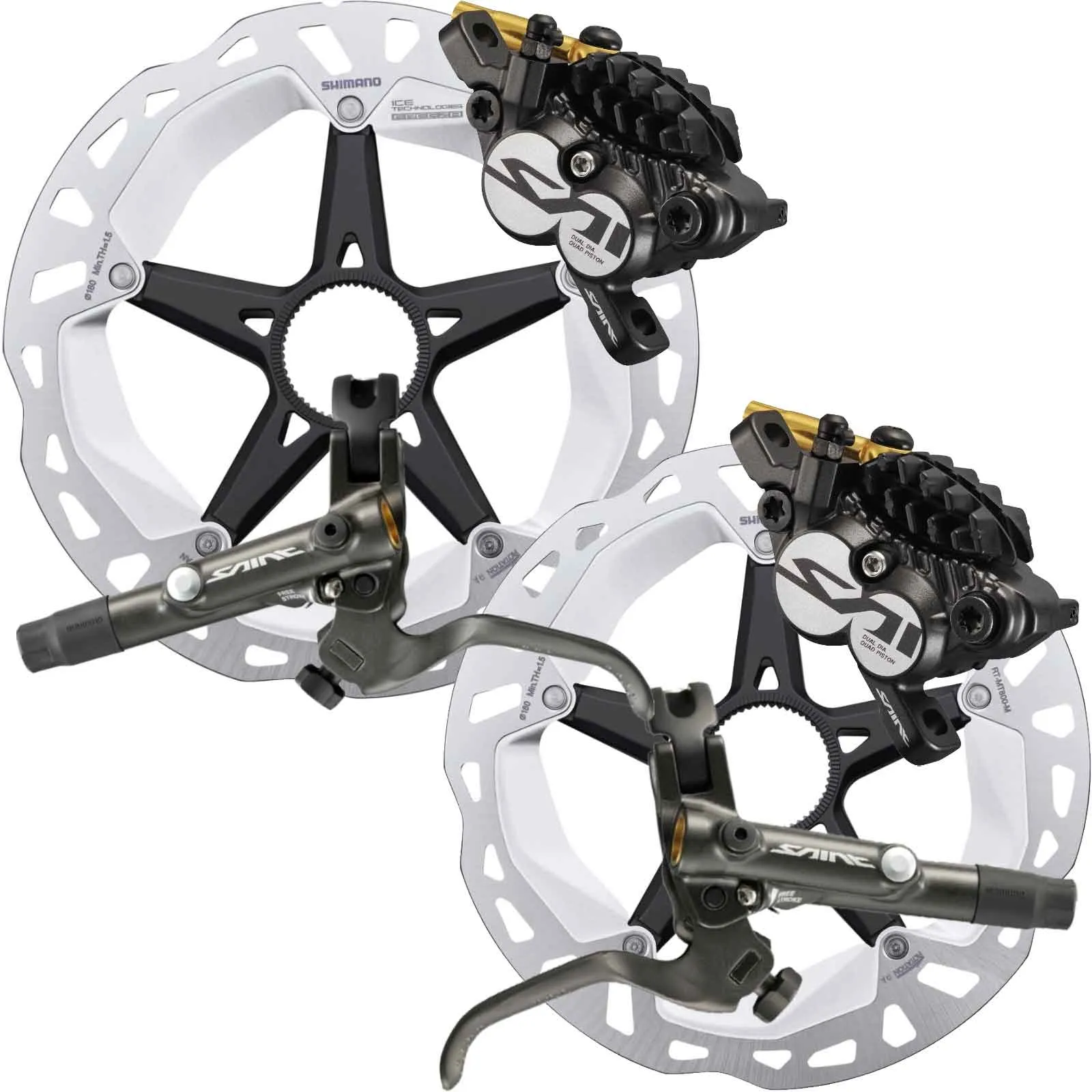

Shimano Saint M-820B disc brake set

The Shimano Saint 820, a top-tier downhill brake that has proven itself over the years and remains a current favourite. Featuring I-Spec mounting and the new Servo Wave System, the new Saint Ice Tec brake stands out for its unbeatable braking power and optimal modulation.

The world’s best gravity riders rely on SHIMANO SAINT brakes, which offer maximum braking power in all conditions and enable precisely modulated braking performance. The BL-M820 levers ensure safe braking even on uneven terrain. They offer tool-free reach adjustment and free-play adjustment and are I-SPEC B-compatible.

Included:

• Shimano Saint front brake, 100 cm hose, Centre Lock Ice Tec brake pads, RT-CL800 brake disc
• Shimano Saint rear brake, 170 cm cable, brake pads, Centerlock Ice Tec brake disc RT-CL800
• Mounting screws, nipples and crimp sleeves for shortening the lines

Shimano Saint disc brake BL-BR M820 Ice Tec:

• 4-piston ceramic brake caliper, 90-degree hose outlet
• Post Mount 6 mounting, compatible with all frames and forks
• Servo Wave brake lever
• Adjustable reach and lever travel I Spec compatible
• High-strength Vinylon brake hose 100/170 cm
• H03C metal brake pads
• Recommended discs: SMRT86, SMRT81, SMRT SM-RT99
• Weight: 306 grams per brake, excluding discs and adapters

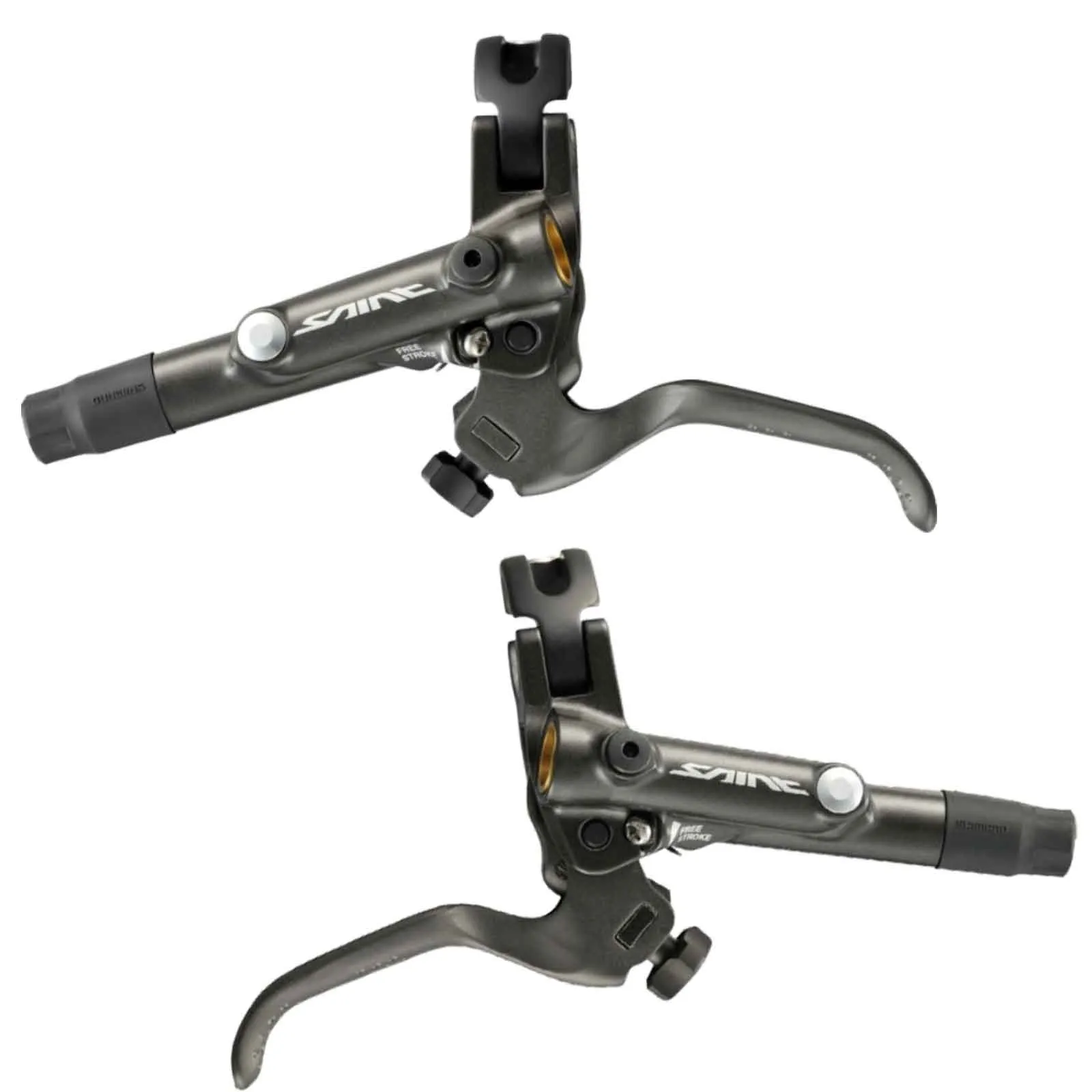

Shimano Saint Brake Levers BL M820B:

Equipped with new Servo Wave technology for reduced free travel, the Saint BL M820B brake levers are I-Spec compatible; the Shimano Saint SLM 820, XT SLM780BI and XTR 970BI I-Spec shift levers can be fitted without an additional clamp.

Shimano I-Spec B Mounting:

The Saint BLM 820 B disc brake levers are suitable for direct mounting (I-Spec) with the SLM 820BI shift levers. This mounting system allows for space-saving installation of the shift levers directly onto the brake lever clamp. Shimano changed the I-Spec mount on the 2014 system to Type B. You can recognise this by the addition of the letter B to the lever designation. Older Shimano I-Spec shift levers can be combined with the new brake levers using the new I-Spec adapters: SM-SL98-B, SM-SL78-B and SM-SL82-B.

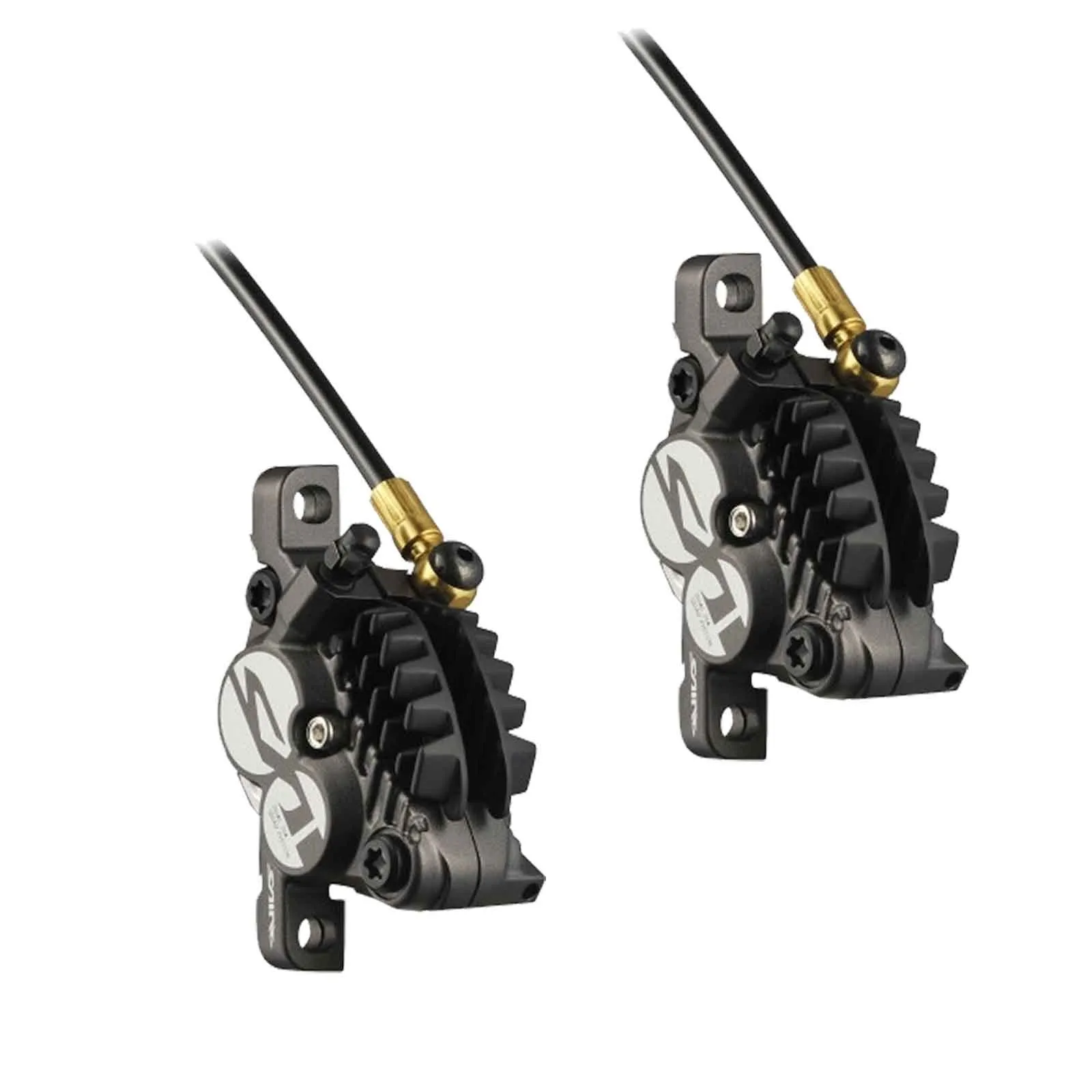

Shimano Saint BR M820 brake caliper:

The high-performance four-piston brake caliper with ceramic pistons and one-way bleeding delivers impressive braking performance. Thanks to the different response points of the four brake pistons, the new Saint brake can now be modulated wonderfully smoothly despite its extremely high maximum braking power. The new Ice Tec brake pads ensure even greater stability.

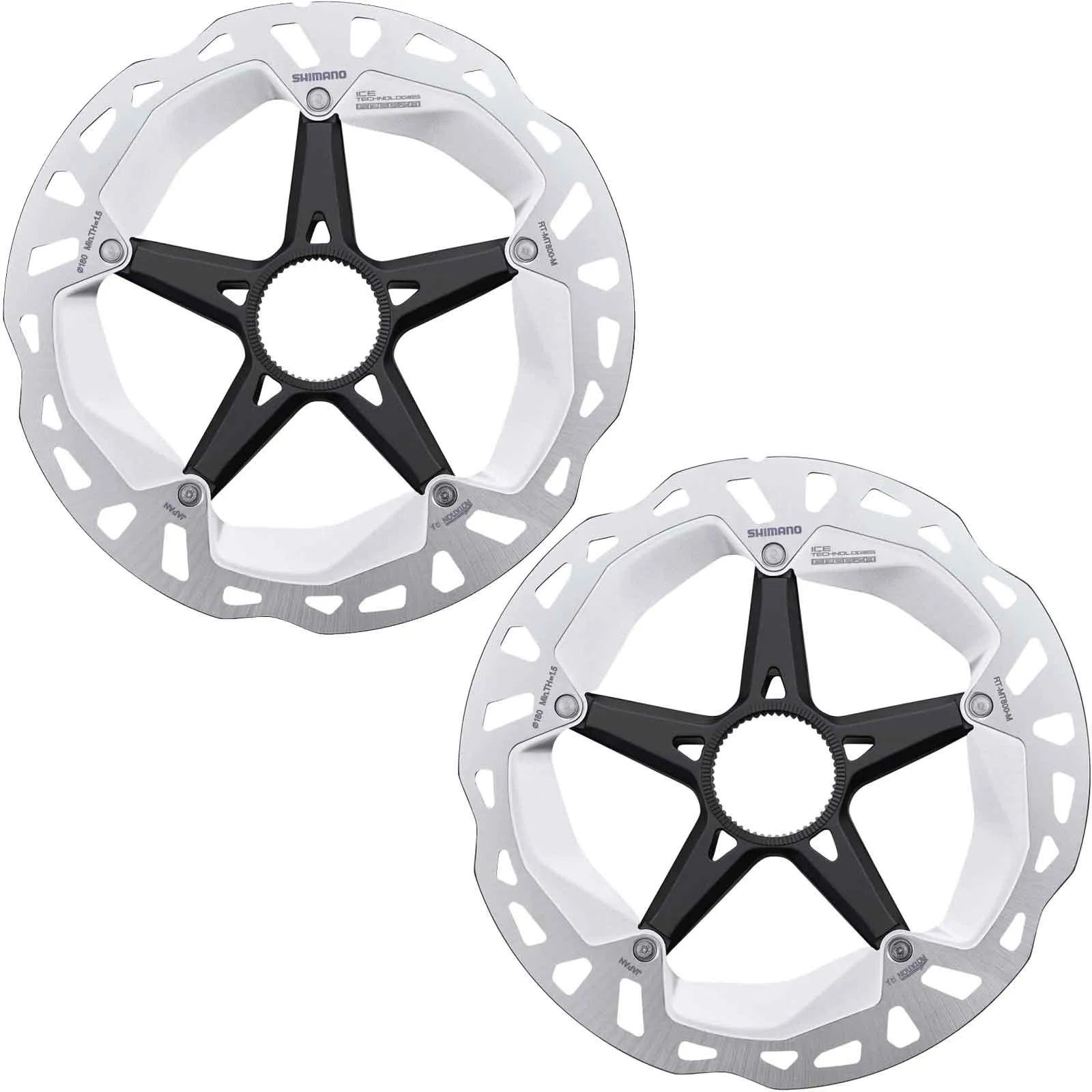

Shimano RT-CL800 Ice Tech brake discs:

The 5-star aluminium rotors are manufactured using a sandwich construction, with an aluminium core encased by the steel braking surface. This reduces heat build-up by a good 25 per cent.

The Shimano Saint BRM 820 Disc is supplied with Post Mount 6 brake calipers.

You can select the correct adapter for your fork and brake disc size. For Post Mount 7 and 203 mm discs, we supply the appropriate Magura adapter for the brake, as Shimano does not currently offer a suitable adapter

IS 2000: Side-mounted. An adapter is always required to fit the Shimano Saint Disc BMR820; maximum 203 mm, minimum 160 mm on the fork and 140 mm disc size on the frame. Common on older suspension forks and almost all rear triangle designs

Post Mount, PM5: Direct mounting of the Shimano Saint Disc BMR820 with 140 mm brake discs without an adapter. Maximum 180 mm, minimum 140 mm disc size. Currently only found on rear triangle frames

Post Mount, PM6: Direct mounting of the Shimano Saint Disc BMR820 with 160 mm brake discs without an adapter. Maximum 203 mm, minimum 160 mm on the fork and 140 mm disc size on the frame. Currently the most common standard on forks, and on some rear triangle frames.

Post Mount, PM7: Direct mounting without an adapter of the Shimano Saint Disc BMR820 with 180mm brake discs. Maximum 203mm, minimum 180mm disc size. 140 and 160mm disc sizes are not possible. Found on some enduro suspension forks such as the Magura Thor and on some rear triangle frames such as the Liteville 301.

Post Mount, PM8: Direct mounting without an adapter for the Shimano Saint Disc BMR820 with 203mm brake discs. Can only be used with 203mm brake discs. Found only on downhill suspension forks and frames
