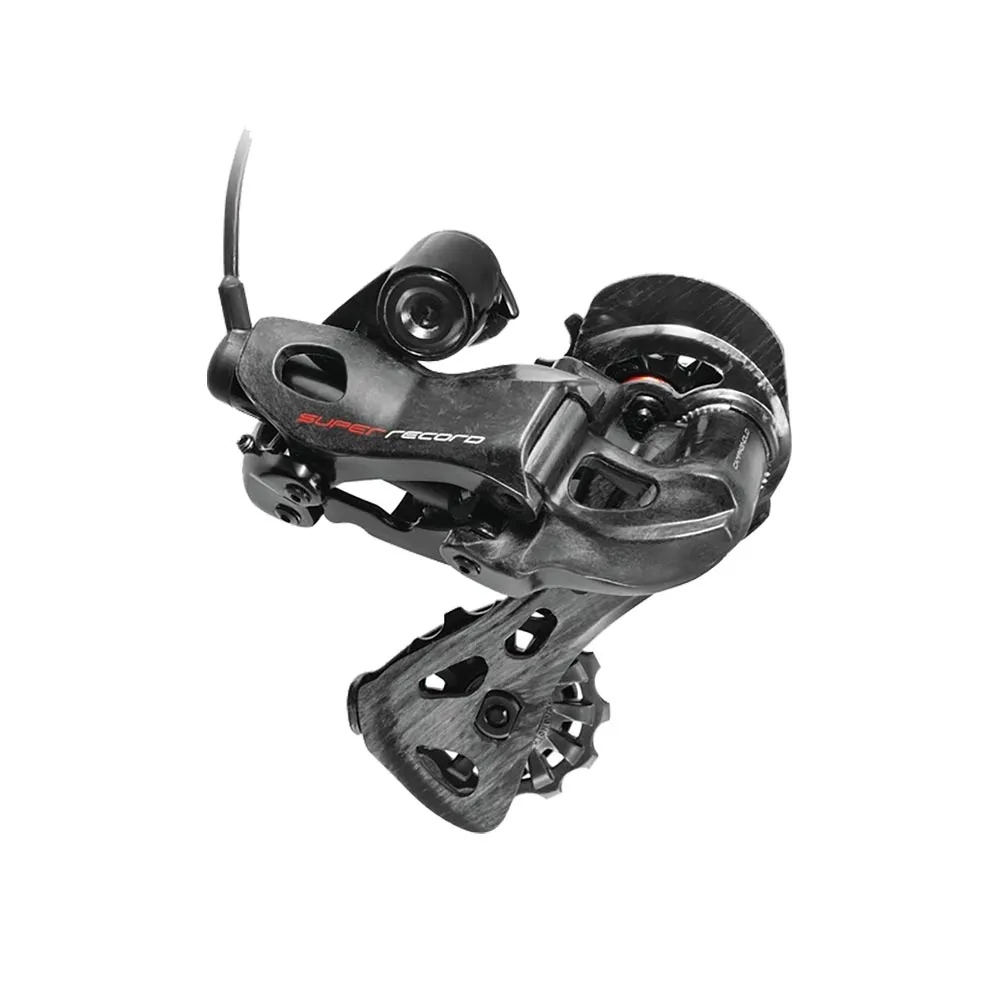

Campa Super Record EPS 12s rear derailleur

The top-of-the-range Campagnolo Super Record EPS components as an electronic groupset. The Super Record 12-speed groupset offers cutting-edge technology with the very best materials; the maximum use of carbon and nitrided titanium screws reduce the weight. These are the components used by professionals, tried and tested in competitions over many years; they are synonymous with countless sporting successes in the professional world and are now even more precise and powerful in their electronic evolution.

Campagnolo Super Record EPS 12-speed rear derailleur

The Super Record EPS rear derailleur features titanium hardware, super-smooth ceramic-bearing pulleys and the highest possible proportion of carbon components. The shape of the Super Record rear derailleur’s parallelogram has been stiffened and optimised to interact as effectively as possible with the electronic components. The lower and upper bodies, the parallelogram and the carbon cage are moved by a screw-and-nut system, which in turn is driven by the electronic actuator that communicates with the DTI (Digital Tech Intelligence). The integrated resolver inside the actuator can read the movements of the rear derailleur at any time and optimise its position through dialogue with the DTI. The rear derailleur is also equipped with a tolerance compensation system featuring a spiral spring, which optimises its stability and precision and maintains its functionality and performance over time, even after covering many kilometres.

Campagnolo Record 12 EPS rear derailleur features

• High-torque motors with high gear ratios:
  Campagnolo has utilised the world’s best motors for this application. They allow the gear ratio to be changed even under load, maintain performance levels over the long term, and enable extremely precise and fast shifting.
• Exclusive Multi-Shifting System:
  Allows the chain to be shifted up or down by up to 11 sprockets with a single movement
• Aluminium derailleur cage and front
  derailleur arm:Lightweight and maximum stiffness. Enables fast and precise shifting even under load.
• Exclusive Unlock System:
  The manual release system allows the rear derailleur and chain to be positioned on the desired sprocket in the event of a drivetrain failure. Furthermore, the release system prevents potential damage in the event of a fall.
• Upper and lower derailleur bodies made from monolithic technopolymer with carbon powder:
  Enables maximum lightness whilst maintaining a very high level of stiffness.
• Position sensor:
  Thanks to the Magnetic Hall Sensor Resolver, the derailleur always positions the chain at the optimal point on the selected sprocket.
• 100 per cent waterproof:
  All derailleur components have been manufactured to IP67 standard, ensuring they can be used in all weather conditions.
• Parallelogram with ULTRA-SHIFT geometry:
  Maximum rear derailleur stiffness, fast shifting, highest precision, minimal play.
• Waterproof - IP67:
  The Campagnolo EPS electronic drivetrain complies with the international IP67 standard. This means the system is capable of protecting its electronic components from dust and the ingress of liquids. To achieve IP67 certification, all electronic components of the EPS system underwent a series of tests confirming flawless operation at depths of up to one metre underwater for at least 30 minutes.
• Auto Repositioning:
  Thanks to D.T.I. technology, the EPS system constantly detects the position of the rear derailleur and the selected sprocket. This, in turn, sends a signal to the front derailleur, which performs micro-adjustments and always positions itself in the optimal position relative to the chainline.
• Unlock System:
  The rear derailleur’s automatic unlocking system allows manual operation of the gears in the preferred position in the event of system malfunctions. In addition to this important function, the unlocking system also activates in the event of a fall, protecting the rear derailleur from damage upon impact.

Campagnolo Super Record EPS 12-speed rear derailleur technology:

• Campagnolo EPS Electronic Power Shifting, 12-speed compatible
• Optimised for hydraulic disc components
• Outer and inner plates of the derailleur cage made of carbon with new geometry
• Parallelogram with external carbon fibre link
• Carbon cage
• Shift rollers with ceramic bearings made from vibration-damping material
• Maximum shifting capacity: 37 teeth
• Maximum sprocket size: 32 teeth
• Weight: 234 grams

Campagnolo EPS compatibility:

Campagnolo EPS components are designed for frames that allow internal routing of the electronic cables. The cables included in the scope of delivery are sufficient for frame sizes up to 63 cm.

Campagnolo EPS installation:

The EPS rear derailleur, front derailleur, shift levers, interface and Power Unit battery are supplied with the electronic cables. These are sufficient for frame sizes up to 63 cm.

To install the Campagnolo EPS components, a cable is routed from each shifter to the EPS interface unit, from the interface to the Power Unit battery, and from there to the rear derailleur and front derailleur. The battery can be mounted on the bottle cage mount, the chainstay or inside the seatpost tube.

The Campagnolo EPS electronic drivetrain complies with the IP67 international standard. This means the system is capable of protecting its electronic components from dust and the ingress of liquids. To achieve IP67 certification, all electronic components of the EPS system underwent a series of tests which confirmed flawless operation at depths of up to one metre underwater for at least 30 minutes.
