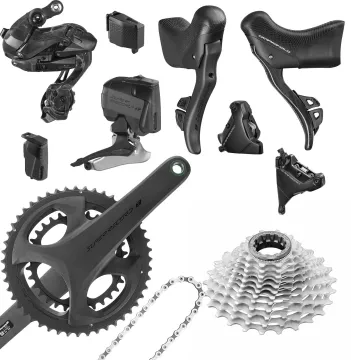

Campa Super Record S WRL Disc groupset

The new Super Record S components in a matt black finish and with a wider gear range thanks to an 11-32 cassette and 52/36 crankset. The Wireless series is available as a complete groupset, with optional disc brakes.

The ultimate professional components from Campagnolo: the finest materials, minimal weight and perfect workmanship – Campa Super Record as it has been known for decades, now in the new Wireless version. The victories this road bike groupset has secured over the years demonstrate the exceptional quality of the craftsmanship, the technologies and the high-quality materials that have always distinguished the groupset and make it a unique, outstanding product.

Campagnolo Super Record Wireless Group Set Contents:

• Campagnolo Super Record S WRL 12s rear derailleur, RDSRS-2WL
• Campagnolo Super Record S WRL 12s front derailleur, FDSRS-2WL

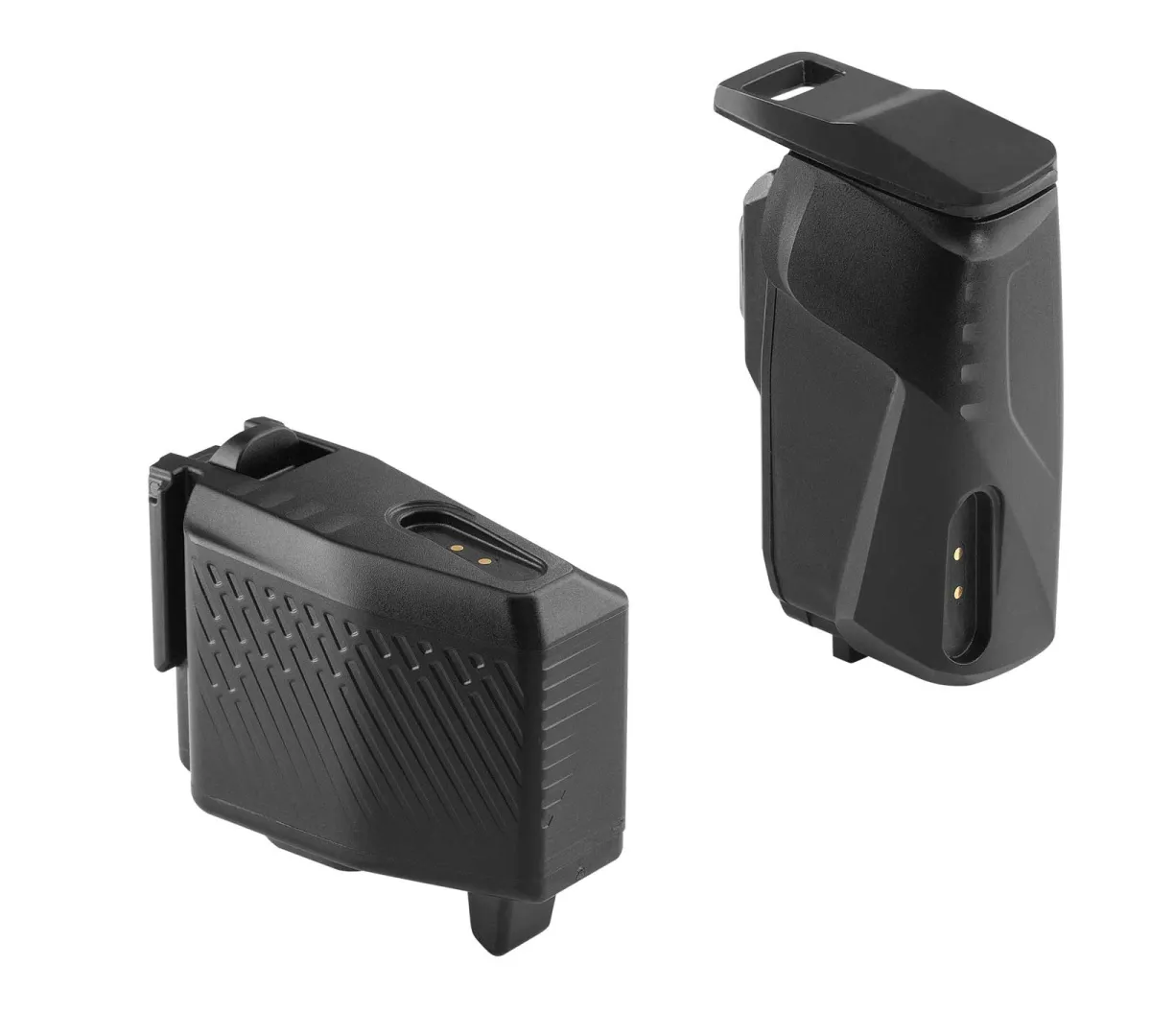

• 2 x Campagnolo batteries, WRL 12, RD23-SR12WRL
• Optional front derailleur clamp 31.8 or 34.9 mm
• Campagnolo Super Record S WRL 12s Disc Ergopower with flat-mount disc brakes, EPSRS-2WL...
• Campagnolo Super Record S WRL 12s crankset in 4 lengths and 3 sprocket sizes, FC-SRS2...
• Campagnolo Pro Tech bottom brackets in 9 versions
• Campagnolo Super Record WRL 12-speed cassette in 4 gradations, CS23-SR120..
• Campagnolo Super Record 12-speed chain, CN19-SR1214

Compatible bottom bracket shells and Campagnolo Ultra Torque bottom bracket cups:

• BSA thread 68x34.8 mm bottom bracket Pro Tech cups, item no. OC21-PRG
• ITA thread 70x36 mm bottom bracket Pro Tech cups, Item No: OC12-REI
• Pressfit BB86 press-fit dimensions 86.5x41 mmPro Tech cup sets, Item No.:IC21-PRBB86
• Pressfit BB30 press-fit dimensions 68x42 mm Pro Tech bearing cups, Item No: IC21-PRBB30
• BB Right press fit 79x46 mm bottom bracket Pro Tech bearing cups, Item No: IC21-PRBBR
• BB386 Evo press fit dimensions 86.5x46 mm Pro Tech bearing cups, Item No: IC21-PRBB386
• Pressfit PF30 press-fit dimensions 68x46 mm Pro Tech bearing cups, Item No: IC21-PRPF30
• T47 Threaded 68x47 mm Bottom Bracket Pro Tech Cup Set, Item No: OC21-PRT4768
• T47 threaded 86x47 mm bottom bracket Pro Tech bearing cups, Item No: OC21-PRT4786

Campagnolo User Centric Design:

In developing the SUPER RECORD WIRELESS groupset, the cyclist was placed at the heart of the project. This user-centric philosophy is expressed through clear and immediate concepts: a functional and practical design to create a product where the interaction between rider and machine is simple and direct. Whether for assembly, maintenance or daily use, every form and function of the SUPER RECORD WIRELESS groupset has been designed to offer maximum ease of use. These concepts are also reflected in the innovative design of the MYCAMPY 3.0 app, which, thanks to its revolutionary, aviation-derived synoptic dashboard, allows for instant monitoring of the status of all components.

Campagnolo Waterproofness IP69K:

The SUPER RECORD WIRELESS meets the highest level of international waterproofing standards, IP69K. This means that the system can protect its electronic components from the ingress of dust and liquids. To achieve the stringent IP69K classification, all the system’s electronic components underwent a series of tests which demonstrated their flawless functionality after being exposed to a jet of pressurised water for a total of 2 minutes at each of the 4 angles: 0°, 30°, 60° and 90°.

Campagnolo Multishifting:

Thanks to the electronic evolution of the Multishifting technology, which is already present in the mechanical groupsets, it has been possible to implement a 12-speed Multishifting function in the wireless groupsets as well. Thanks to the use of a sophisticated electronic system, holding levers 2 or 3 down allows the rear derailleur to shift up or down continuously, with a single lever operation capable of moving up to 12 sprockets up or down. There are now no limits to multi-shifting, and the choice is in the hands of the cyclist.

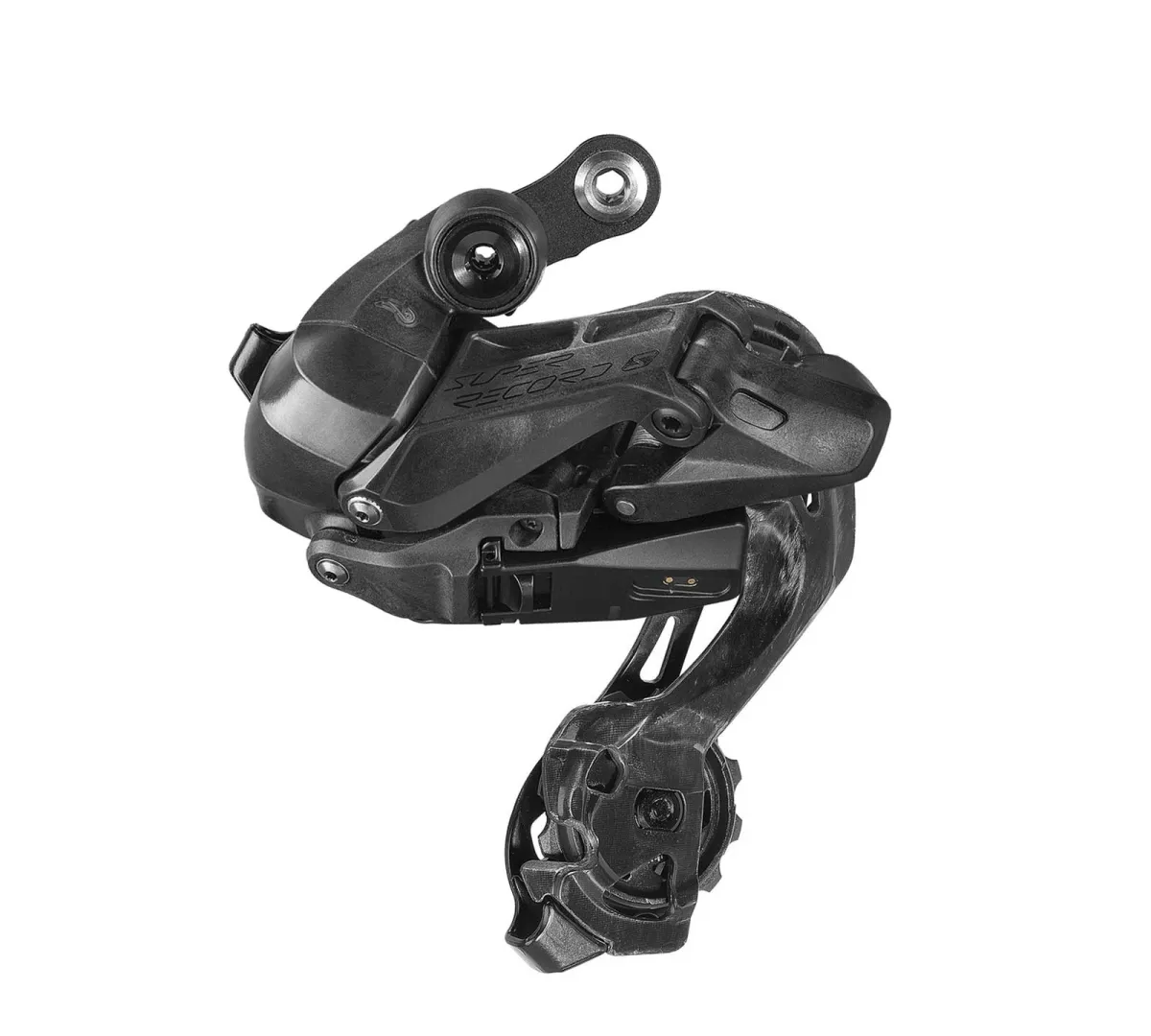

Campagnolo Super Record S WRL rear derailleur:

The new Super Record Wireless rear derailleur utilises the latest Campagnolo technologies to guarantee you the best shifting performance. Thanks to the complete absence of cables, the component is easy to install and simple to maintain. The Super Record Wireless rear derailleur has been developed with a user-centred design in mind and is paired with a battery that provides a range of over 750 km. Charging times are very short, as 100 per cent of the battery capacity is recharged in just 60 minutes. The battery’s charge status can be checked either via special LEDs on the component or via the MyCampy 3.0 app. The use of carbon fibre makes the component lightweight yet solid, durable and consistently reliable. A single rear derailleur that fits all three available cassettes: 10-25 to 10-32. Thanks to its in-depth technical expertise, the Campagnolo Super Record Wireless rear derailleur is always able to detect which sprocket it is positioned under, guaranteeing you maximum shifting precision. This perfect alignment also allows the rider to achieve better power transfer and reduced wear on the drive chain. The new Super Record Wireless rear derailleur represents the pinnacle of performance in Campagnolo drivetrains.

Campagnolo Unlock System:

The rear derailleur’s manual release system allows the derailleur to be manually moved to the desired position in the event of a system fault. In addition to this important function, the release system activates in the event of a fall, protecting the rear derailleur from breaking on impact.

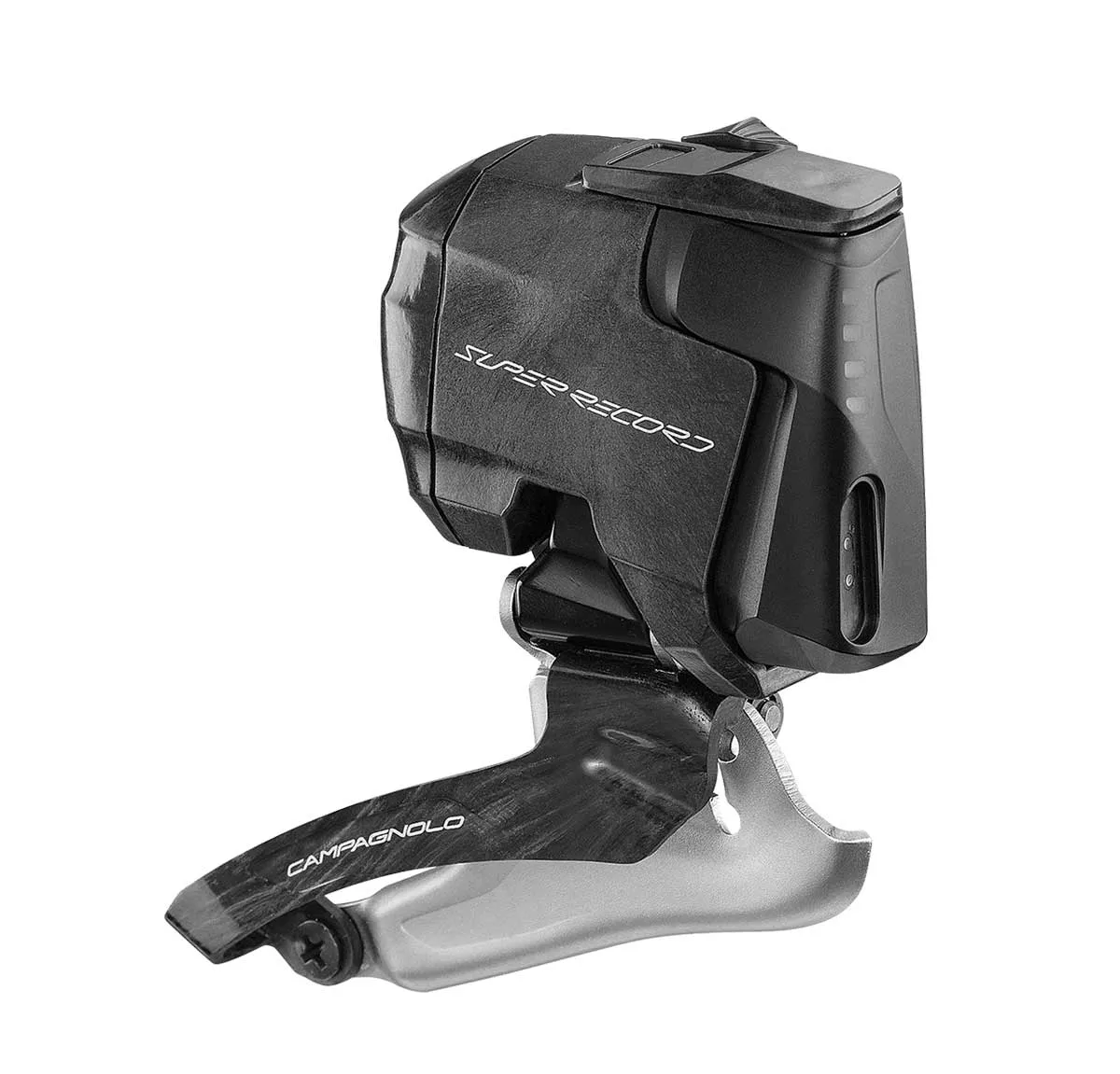

Campagnolo Super Record Wireless Front Derailleur:

The new SUPER RECORD WIRELESS front derailleur introduces shifting via Bluetooth technology, enabling simple and instant communication between the front derailleur and shift levers: wireless. Every tiny detail has been optimised for maximum functionality with a user-centred approach. The magnetic quick-charge connectors, the bright colour of the battery LEDs and the super-fast charging allow for simple and hassle-free use and charging. The new design of the mechanical components ensures smooth, efficient and reliable operation of the derailleur. The precision of the derailleur motor makes the movement of the drivetrain chain between the chainrings not only immediate but also extremely smooth, even under maximum load from the cyclist. Thanks to the internal aluminium chain guide and the external monolithic carbon fibre chain guide, the Super Record EPS front derailleur performs its shifting functions with maximum stiffness and efficiency.

Campagnolo Auto Repositioning:

The intelligence of the SUPER RECORD WIRELESS electronics detects the rear derailleur position and the selected chainring at all times. This data is used by the control algorithm to automatically monitor the optimal position of the front derailleur and, where necessary, activate micro-adjustments to reposition itself in the best position relative to the drive chain line. The advanced electronics of the SUPER RECORD WIRELESS allow you to extend the riding experience even before and after your ride, and interact with the synoptic dashboard of the revolutionary MYCAMPY 3.0 app, where the position of the rear derailleur, the selected chainring, the number of shifts performed and many other performance parameters can be displayed.

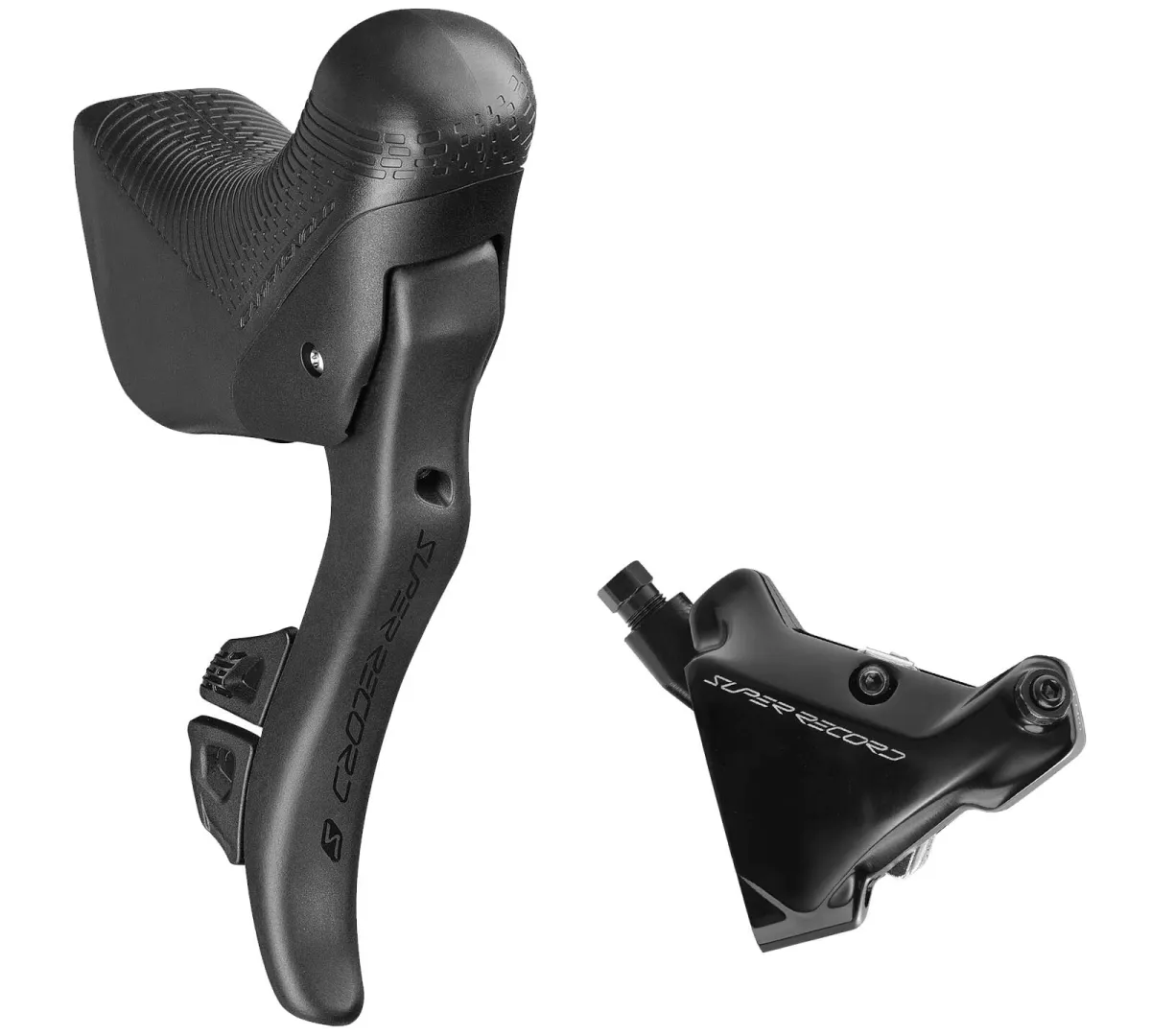

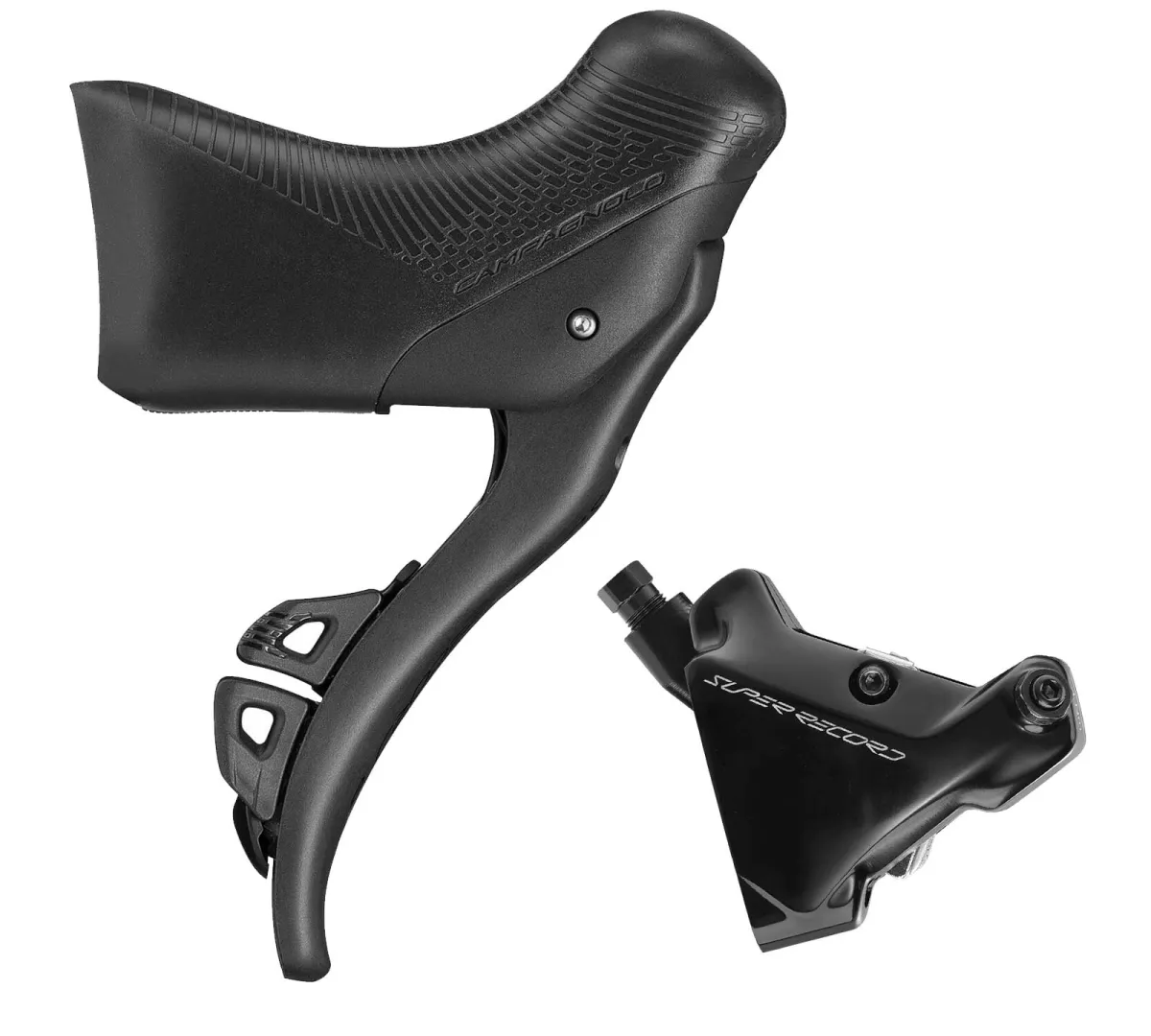

Campagnolo Super Record WRL Ergopower:

The ergonomics of the shifter are even more efficient and effective, thanks to a new shape of the grip body that allows for a comfortable and firm grip when held high. The brake lever has been redesigned so that it is easier to reach when held low, whilst retaining Campagnolo’s style and design. The position of the brake lever can also be adjusted so that it can be reached perfectly according to the rider’s needs and adapts to all handlebar types and hand sizes. The absence of wires and cables simplifies installation, and the battery has an incredibly long life thanks to sophisticated firmware that controls the component’s entire electronics. The new Super Record Wireless shifters can be used for up to 2 years without needing to replace the battery. The ability to switch the shifter off is also ensured by a hidden but easily accessible button inside the grip body. The LED inside the lever body then serves as a visual indicator to signal when the battery is low, and the charge status can be checked via the MyCampy 3.0 app. The shift buttons are located on the brake lever so that they are easily accessible to all cyclists, whether they are pedalling with a high or low grip. The shift buttons offer a perfect balance between operating force and tactile feedback, so that the force applied can be felt. They can also be individually customised via the MyCampy 3.0 app by linking them to the rear derailleur and front derailleur exactly as you wish.

Campagnolo Disc Flat Mount brake calipers:

The Super Record brake calipers ensure powerful and modular braking in every situation thanks to their 22-millimetre-diameter pistons. The return of the brake pads has now been optimised so that no friction occurs when the brake lever is released. A special metal plate between the pad and the brake caliper piston dampens vibrations during braking. The various Campagnolo brake calipers are designed to be fitted in combination with the disc chosen by the user, whilst always ensuring a high level of performance: specifically, it is possible to choose the brake caliper with a 140 mm disc only for riders weighing up to 82 kg, or with a 160 mm diameter disc. Particular attention has also been paid to simplifying maintenance and installation: the brake pads are fitted with a wear indicator, and their replacement is made easier by the absence of return springs. Furthermore, the point where the disc enters the brake caliper has been redesigned to make changing wheels easier and quicker.

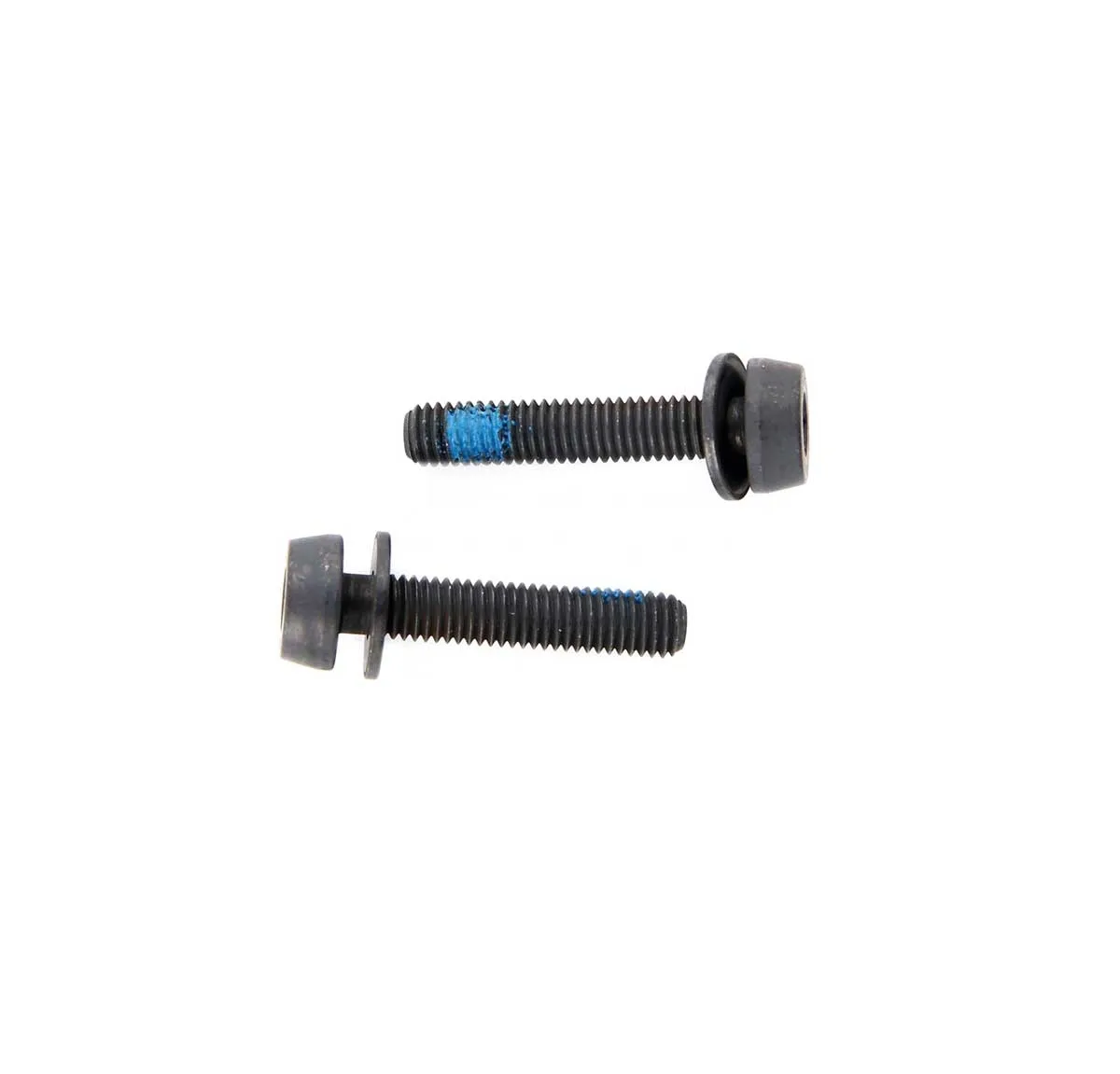

Campagnolo offers two different brake calipers for the Flatmount brake, with a separate model for 140 mm and 160 mm brake discs respectively. The 160 mm version cannot be converted to 140 mm. The mounting bolts for the rear calipers are not included and are available separately in different lengths to suit different rear triangle thicknesses.

Campagnolo E-Ergonomy

The new shifter body precisely replicates the asymmetry of the human hand. The new shapes increase the contact area with the palm and allow for different support positions, guaranteeing maximum safety in all riding positions. The position of the shifters has been improved to make downshifting easier during a final sprint or a sudden burst of speed.

Campagnolo Enhanced Reach:

Thanks to the new shape of the contoured grip body and the option to adjust the reach, all cyclists can use these brake-shift levers regardless of hand and finger size. Thanks to the technologies developed, Campagnolo is able to guarantee a brake lever travel of 15 mm, ensuring that the lever can be reached by as many cyclists as possible.

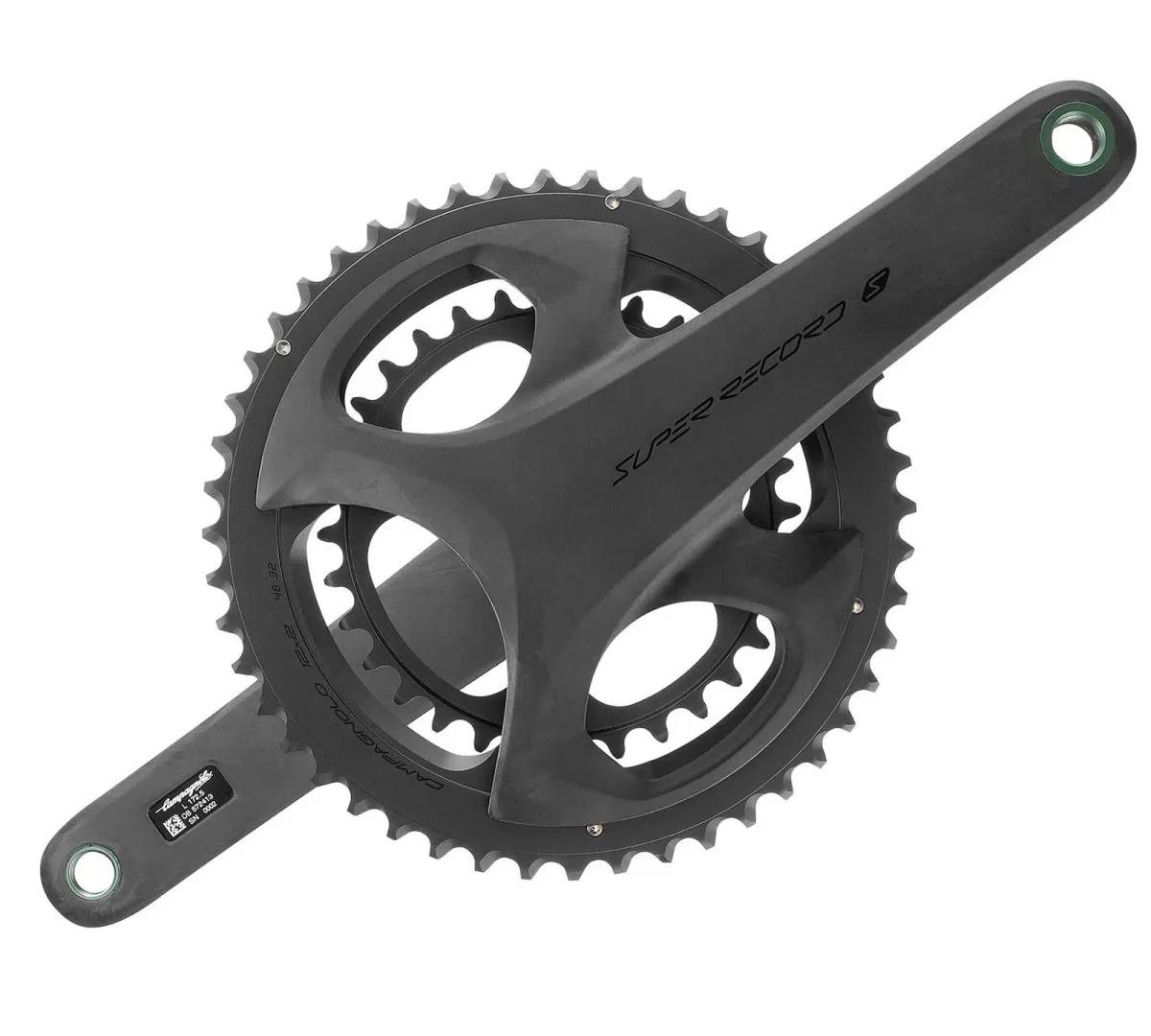

Campagnolo Super Record S WRL Crankset:

New Super Record Wireless 12x2-speed crankset: Campagnolo’s iconic design with exposed carbon fibre on a crankset developed for maximum performance. The Super Record Wireless crankset features a hollow, lighter structure and utilises the Ultra-Torq locking system to transfer all the power the cyclist applies to the pedals to the drivetrain. The Super Record Wireless crankset is part of the new drivetrain system, designed to offer an innovative gear ratio scheme of 36/52, 34/50, 32/48 and 29/45, which, in synergy with the new cassettes, provides the widest range of metric gear ratios available. The ULTRA-TORQUE system completes the specification and ensures that all your power is converted into exceptional performance. Instant and unstoppable acceleration along a titanium axle and lightweight carbon fibre cranks. The chainring has been redesigned for uncompromising efficiency. Every watt of your power is transferred to the road. Take your performance to a new dimension.

Campagnolo Super Record Titanium Crankset Axle

The proven system with Hirt threading ensures an extremely stable connection between the two titanium axle halves. As the connection of the axle lies exactly in the centre – and thus in the part of the axle construction subjected to the highest load – the forces applied are absorbed optimally. The bolted connection, combined with the increased axle material, reliably prevents twisting, even with stronger and/or heavier riders. Therefore, despite the titanium axle, there are no restrictions regarding rider/system weight.

Campagnolo WRL chainrings

The exclusive design of the zones for shifting the chain up and down. The special profiles of the teeth and the areas for shifting the chain up and down enable precise and rapid shifting of the front derailleur in all conditions. This system allows for effective, smooth and rapid shifting between the chainrings. The chainring mounting system, in which the chainring bolts are screwed directly into the small chainring, enables quick installation of the individual chainrings. It is lighter and makes this connection stable, rigid and secure. The chainrings are hard-anodised for improved wear resistance and resistance to salt corrosion.

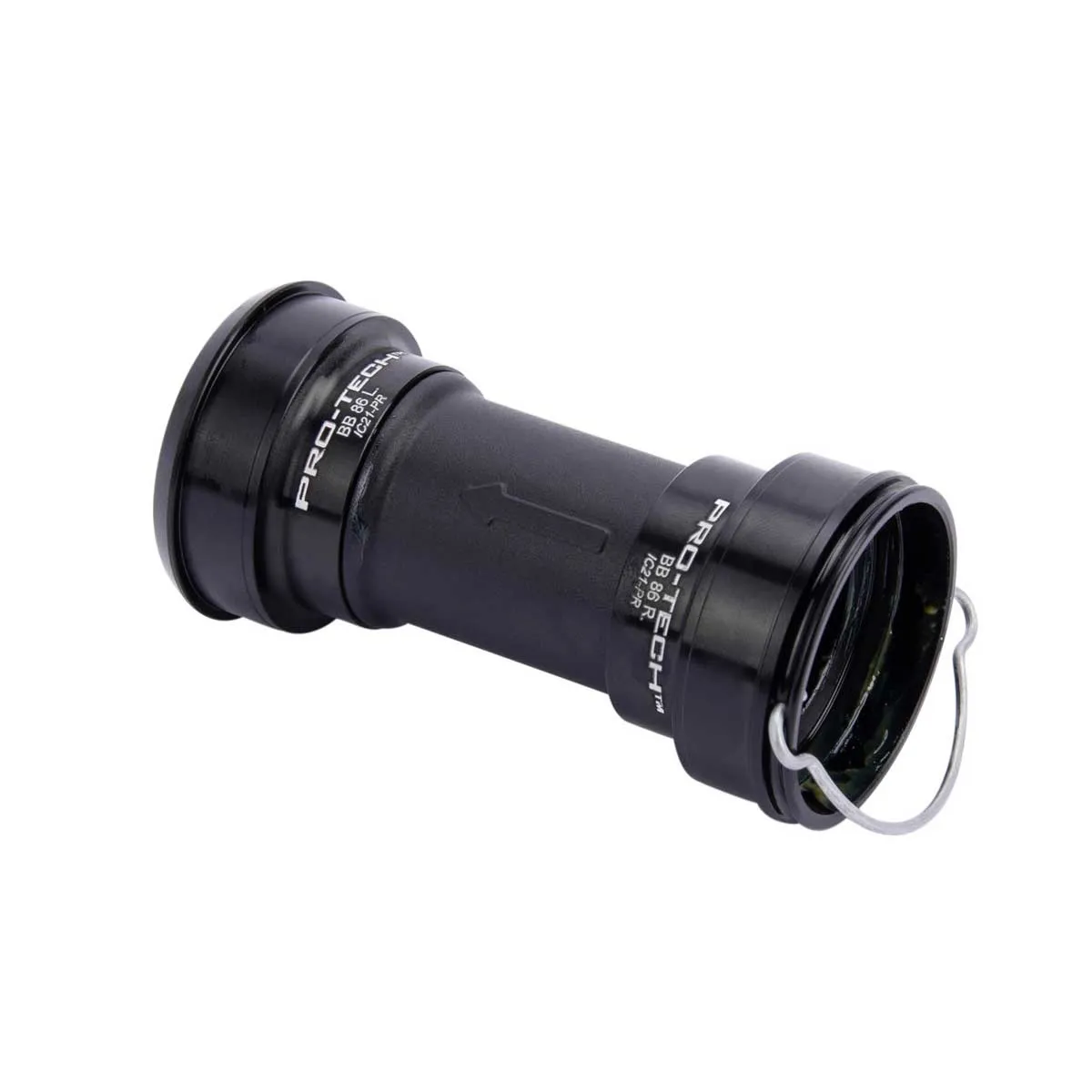

Campagnolo ProTech bottom bracket cups:

The patented ProTech bottom bracket technology with double seals firmly connects the two axle halves within the bottom bracket and protects the bearings from the ingress of water and mud, ensuring high performance and durability even under the worst conditions. The innovative and proven Ultra-Torq technology has been further developed. The Hirth-tooth design of the ProTec system features self-centring and self-aligning teeth located at the centre of the crankset, where the ends of the integrated axle halves meet.

The oversized ball bearing located on the crank arm outside the bottom bracket cups offers maximum stiffness, smoothness and strength thanks to the increased diameter of the crank axles.

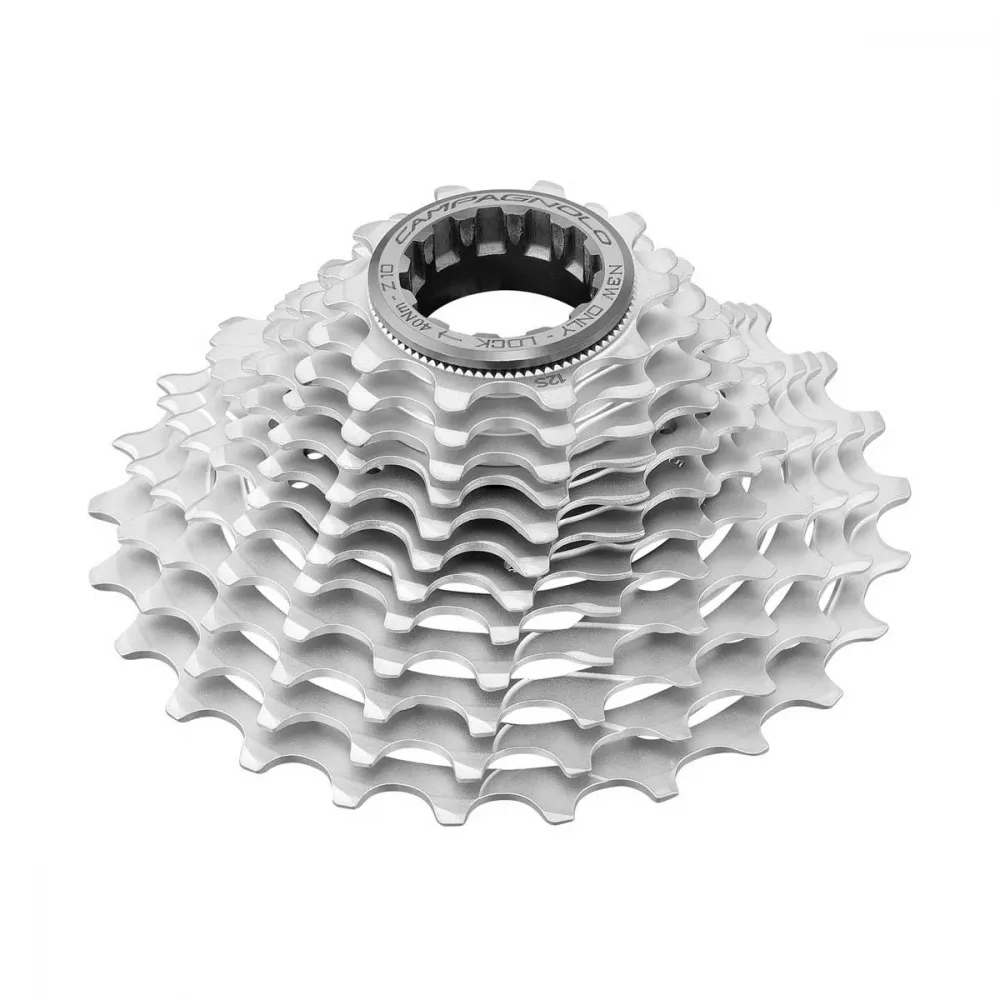

Campagnolo Super Record WRL Cassette

The new Super Record cassettes have been conceived, designed and developed to guarantee the cyclist maximum shifting comfort across the entire range of gears. It is precisely for this reason that close-ratio sprockets are the key to the riding experience for all cyclists, ensuring the perfect cadence in every situation. The three new cassettes – 10-25, 10-27, 10-29 and 10-32 teeth represent excellence in the pursuit of performance, lightness and durability. Smooth shifting is ensured by step sizes of just one tooth up to the seventh position, and particularly in the second half of the cassette, where the step sizes between gears are a maximum of three teeth. The new Super Record Wireless cassettes have been developed from the ground up and are equipped with the N3W mount, which is found on all the latest generation of Campagnolo road bike wheels. The N3W is highly versatile, has the same groove profiles as the classic Campagnolo ED cassettes, but is lighter and 4.4 mm shorter.

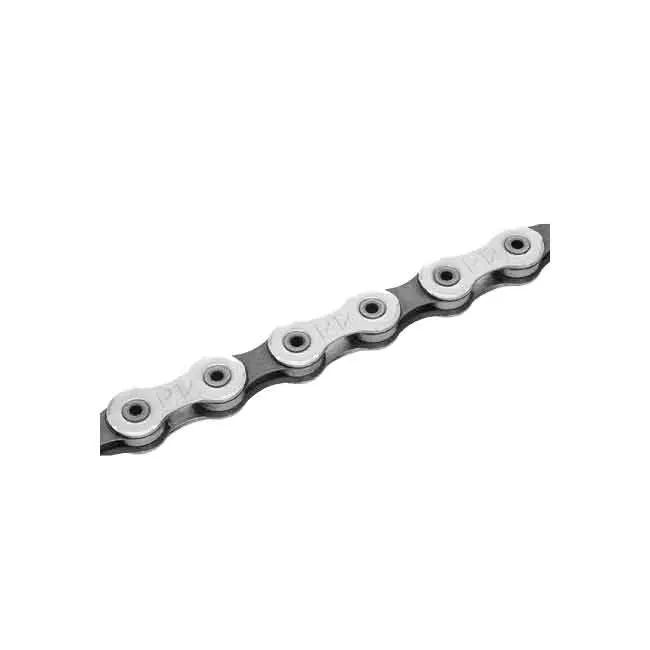

Campagnolo Super Record Chain:

Thanks to special steel and a nickel-PTFE surface treatment, the Campagnolo Record chain runs extremely smoothly and is very durable. The Ultra-Link chain locking system guarantees durability and optimal performance on the 12-speed sprockets. The chain pins of the Super Record 12-speed chain are hollow on the inside to reduce weight without compromising durability. The special tool UT-CN300 is required for installation.
