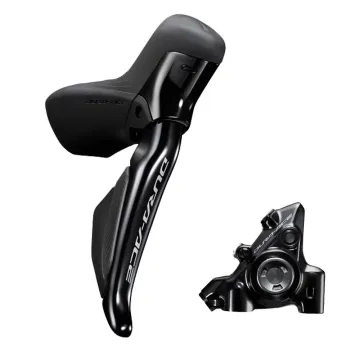

Disc Shimano Dura Ace Di2 ST-R9270 STI with BR-R9210

The disc brake set featuring the hydraulic STI shift-brake lever and folding mount brake caliper from the 9200 Dura Ace 12-speed Di2 series, complete with cable and small parts, oil not included

The components of the pros: the high-end Dura Ace 12-speed series. Thanks to Shimano’s proven Servo Wave technology, the new Dura Ace ST-R9270 brake lever offers improved modulation and control on every ride. The brand-new Di2 platform is used in Dura Ace and Ultegra, where it ensures the world’s fastest and most reliable wireless shifting.

The new Di2 platform for the Dura Ace 12-speed components requires no cable connection between the shift levers and the rear derailleur and front derailleurs. The Di2 Dual Control shift levers ST-R9270 have the necessary wireless module integrated. Power is supplied by CR1632 batteries, which have a service life of up to 2 years. The Di2 12-speed rear derailleur, with its additional wireless unit, acts as a receiver and distributor of shift signals and is connected to the battery and front derailleur for power supply and shift command transmission. Additional wireless components, including those from third-party manufacturers, can also be paired with the rear derailleur. The shifting logic and speed of the shifting operations, semi-automatic or fully automatic shifting, etc., can be personalised using the E-Tube app.

Shimano Dura-Ace Di2 Disc shift/brake levers ST R9270:

The Di2 Disc wireless shift/brake levers, featuring a new ergonomic shape, are characterised by higher horns that are also slightly angled inwards. Furthermore, the clearance between the brake lever and the handlebar has been slightly increased to enable the optimal balance of comfort and control. Road cyclists will be able to grip the new levers better and more securely with their thumb and index finger, whilst the remaining three fingers can be comfortably positioned between the handlebars and the brake lever. However, thanks to adjustments and enlargements to the design of the shift buttons, these remain easy to reach from the lower handlebar position. Furthermore, the two shift buttons on each STI lever are now positioned at a greater height difference from one another, enabling more intuitive operation, particularly with wet, cold fingers or full-finger gloves. In addition, the shift-brake levers feature classic cable connections for mounting additional shift levers.

Shimano Dua Ace Disc Brake Caliper BR-R9270:

The BR-R9270 road bike disc brake calipers for the 12-speed Dua Ace groupset. These calipers are compatible with all Shimano disc brake levers. Recommended brake discs: RT-MT900. Thanks to the 10 per cent greater spacing between the brake pads, the brakes can be adjusted more effectively and noise is minimised.

The new Dura-Ace BR-R9270 brake caliper offers improved modulation, a quieter braking system and an extremely simple bleeding procedure. The Dura Ace R9270 disc brake caliper offers road cyclists a completely new sense of control thanks to its improved modulation and faster-acting initial braking force. Despite its flatter design, the system produces less braking noise than ever before and is easier to maintain. The bleeding system has been redesigned and made significantly simpler.

Flat Mount Standard:

The new Flat Mount caliper standard for road bike brakes reduces weight and offers a significantly sleeker look. With the Flat Mount Standard, the rear brake caliper sits directly on the chainstay; no adapter is required for caliper mounting. The bolts pass through the chainstay from below directly into the brake caliper. A flat adapter is still required on the fork. The adapter is screwed onto the rear of the fork leg, with the brake sitting directly on the adapter.

Shimano 12-speed Di2 assembly:

Shift commands are transmitted wirelessly from the shift levers to the rear derailleur. Only the rear derailleur and front derailleur are now wired to the battery. This ensures a clean look and significantly reduces the installation effort. The shift levers are powered by CR1632 batteries. The shift levers feature an additional cable connection, allowing for the connection of auxiliary switches. Traditional cabling from the shift levers to the battery is also possible. The new battery has three slots.

Shimano Dura Ace Di2 Shift/Brake Levers ST R9270 Technical Specifications:

• For 12/2-speed drivetrains
• Wireless function
• 1 x SD300 connection
• CR1632 batteries
• Adjustable grip width
• Compatible with 12-speed Dura-Ace and Ultegra Di2 rear derailleurs and front derailleurs
• Equipped with programmable Multishift function
• Brake fluid required: mineral oil
• Required brake line: SM-BH90-JK-SSR
• Weight: 175 g

Shimano Dura-Ace BR-R9270 Flat Mount brake caliper Technical specifications:

• Aluminium brake caliper, flat mount installation
• 2-piston system
• Rensin L02A brake pads
• Recommended brake lever: STR8170
• Weight: approx. 136 g
• Flat Mount standard
• Recommended brake hose: SM-BH-90-JK-SSR
• Recommended brake discs: Shimano IceTec RT-MT900
