Shimano 105 RD 5700 rear derailleur spare part

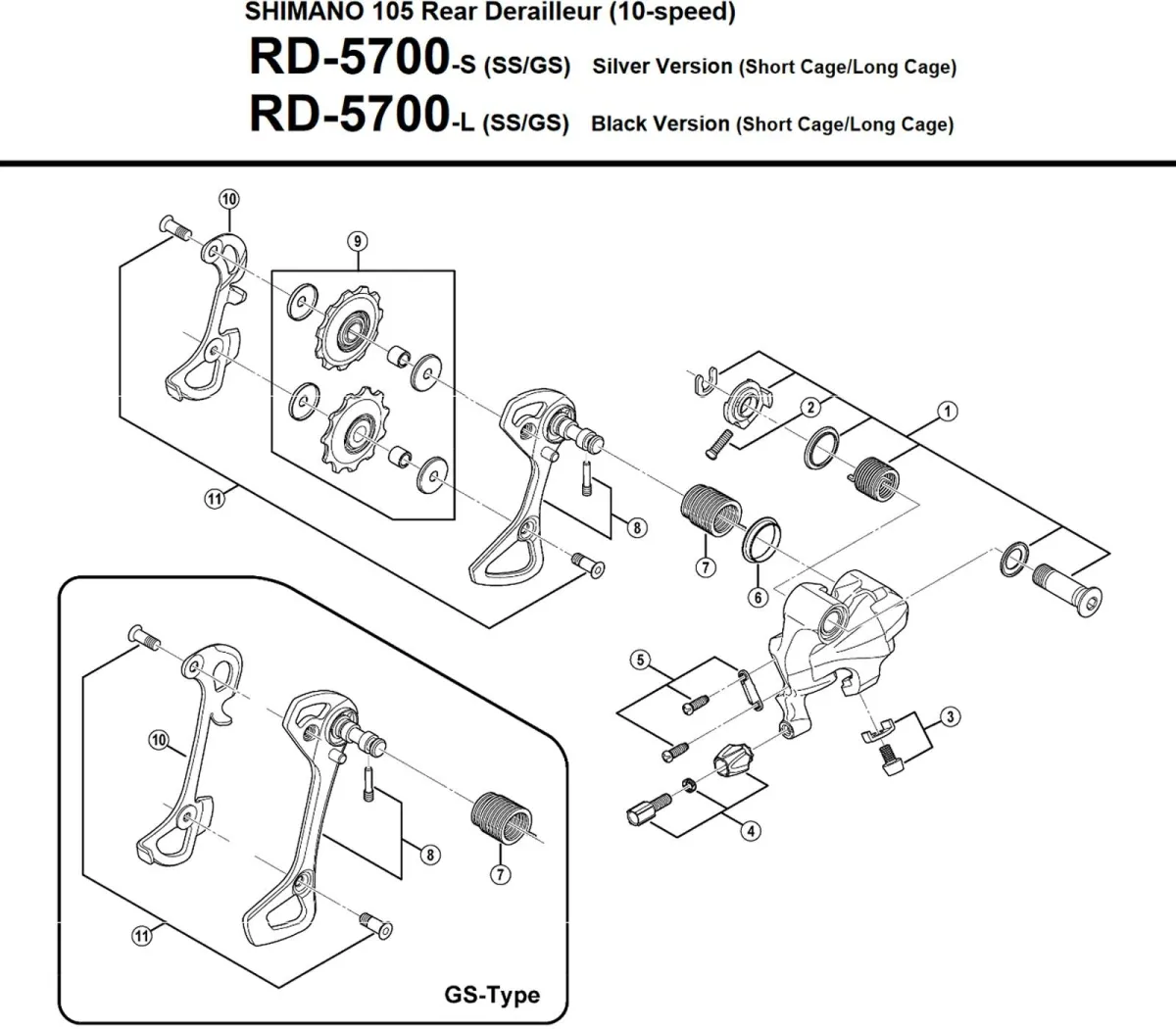

Included in delivery No. 1 of the exploded view.

Shimano 105 rear derailleur spare parts:

• Y5XH98010, B-Axle Assembly, rear derailleur mounting screw, complete
• Y55625080, B-Tension Adjusting Screw M4 x 13.5, adjustment screw for tension spring
• Y5XH98020, Cable Fixing Bolt M5 x 8.5 and Plate, Sold out
• Y5XH98030, Cable Adjusting Bolt Unit, Sold out
• Y5X998020, Stroke Adjusting Screws M4 x 11.5 and Plate, Adjusting screws for rear derailleur
• Y5UC14000, P-Seal Ring, P-seal ring
• Y5VG14000, P-Tension Spring SS-type, Sold out
• Y5VG15000, P-Tension Spring GS-type, Sold out
• Y5XH98040, Outer Plate and Plate Stopper Pin Silver/SS-type for RD-5700-S-SS, Sold out
• Y5XH98050, Outer Plate and Plate Stopper Pin Black/SS-type for RD-5700-L-SS, Sold out
• Y5XH98060, Outer Plate and Plate Stopper Pin Silver/GS-type for RD-5700-S-GS, Sold out
• Y5XH98070, Outer Plate and Plate Stopper Pin Black/GS-type for RD-5700-L-GS, Sold out
• Y5XH98120, Tension and Guide Pulley Set, derailleur pulley set
• Y5X908100, Inner Plate SS-type, Sold out
• Y5VG09300, Inner Plate GS-type, Sold out
• Y5V598140, Pulley Bolt 12.5mm 2 pcs., derailleur pulley bolts

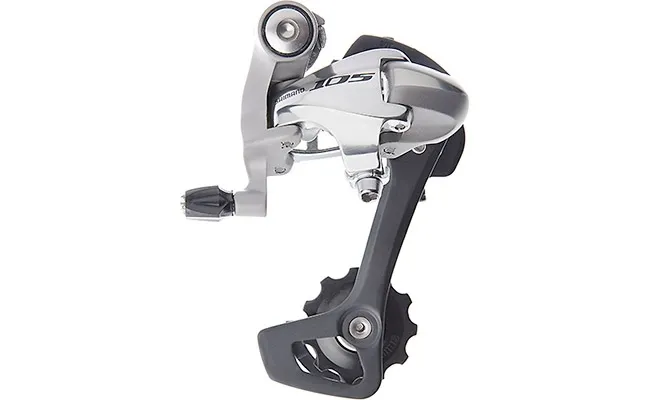

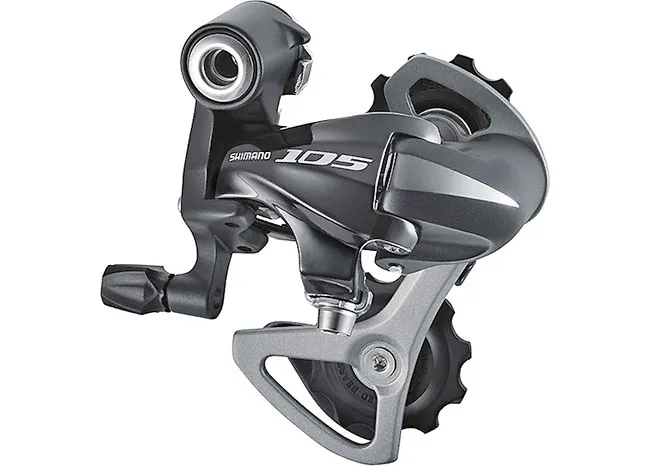

The Shimano 105 rear derailleur for 10x2-speed drivetrains with standard shifting capacity. Thanks to the new parallelogram design, the new Shimano 105 rear derailleurs are even more torsion-resistant and shift more precisely. The Shimano 105 RD 5700 series rear derailleurs also utilise high-quality aluminium, and the pivot bushings are coated for particularly smooth shifting.

Professional technology for the budget-conscious; technically almost identical to the more expensive Ultegra and Dura-Ace components, the Shimano 105 components are made from simpler materials and are slightly heavier. Recommended for recreational cyclists and touring and training bikes

Shimano 105 Rear Derailleur Technical Specifications:

• Wide Link Design: The wider outer parallelogram increases stiffness
• Compatible with all Shimano 10 road bike shifters.
• Max. front sprocket range: 16 teeth
• Total capacity: 33 teeth
• Parallelogram: painted aluminium
• Flurin-coated pivot bushings
• Painted aluminium cage
• Weight: 221 grams
