Road bike chainring, 12x2-speed, for Shimano Ultegra FC R8100 crankset, 34 teeth, NK type, 110 mm bolt circle, asymmetrical

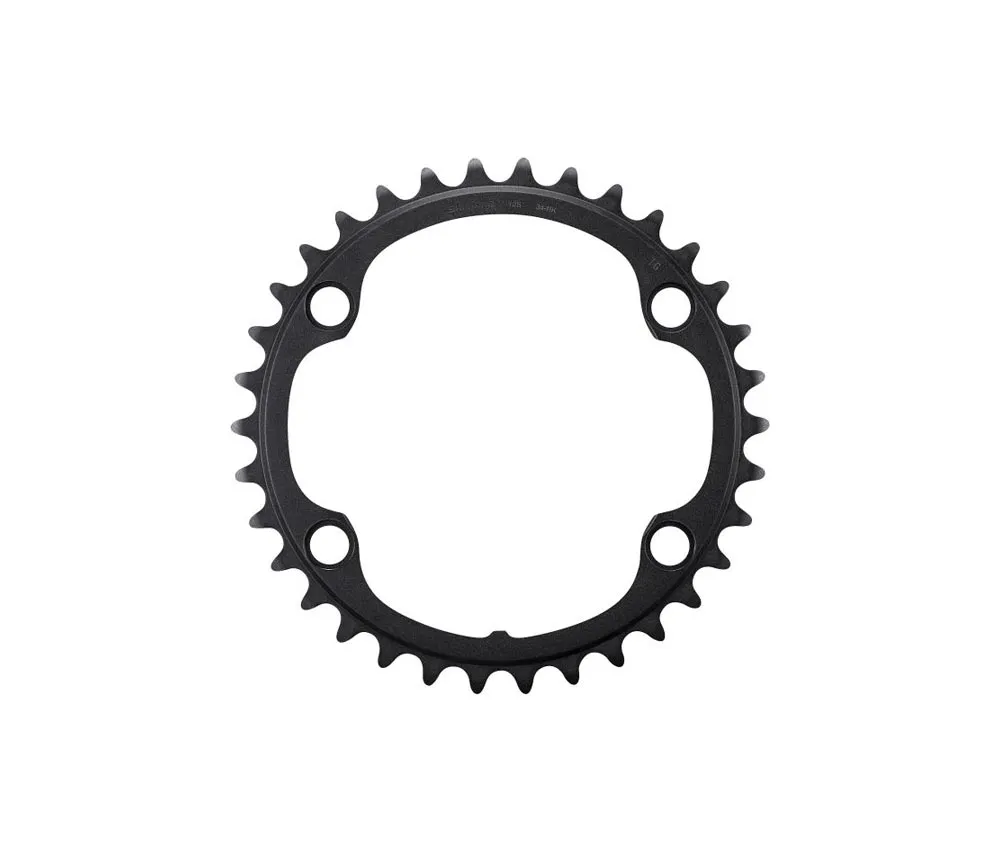

Shimano Ultegra FC-R8100 chainring
Shimano Ultegra chainring, 34 teeth, NK-type, 110 mm bolt circle (asymmetrical), chainline 44.5 mm, made of aluminium.
The small chainrings of the Shimano 105 FC-R7100, Ultegra FC-R8100 and FC-R9200 are compatible with one another. With the large chainrings of the 12-speed cranksets, the curves on the chainring mounting differ. Therefore, these are not compatible with one another.
Manufacturer’s note: for optimum Shimano shifting performance, only chainrings with the same model designation should be combined.
