Shimano Ultegra ST-R8020 and ST-R8025 spare parts

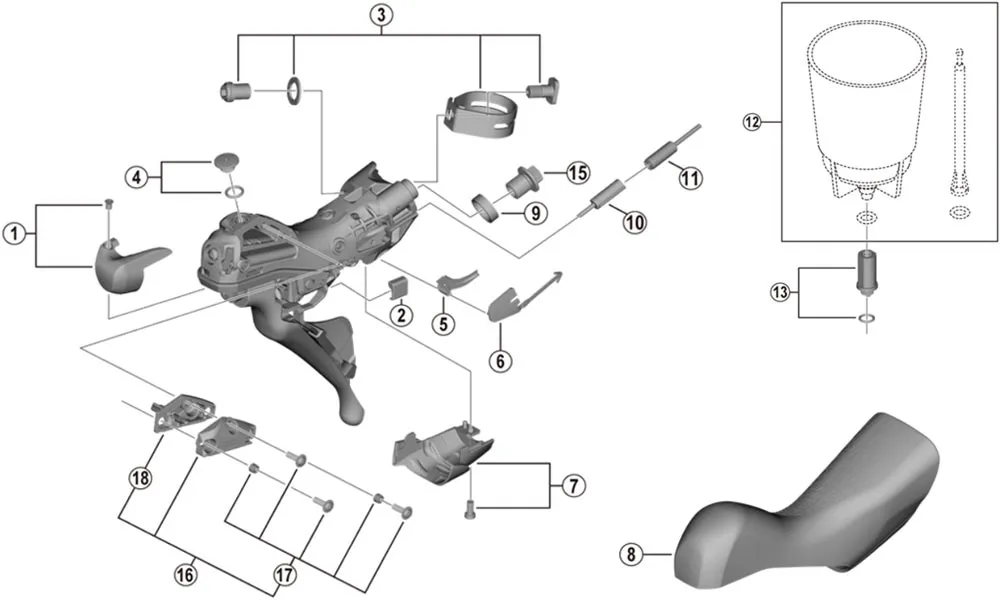

Included in spare parts set no. 8 and illustrated.

Shimano Ultegra ST-R8020 2x11-speed shift-brake lever spare parts:

• No. 1: Y0E098020 – Complete nameplate, right
• No. 1: Y0E198010 – Complete nameplate, left
• No. 2: Y63X80000 – Guide plate, complete, right
• No. 2: Y63X80010 – Guide plate, complete, left
• No. 3: Y0E098030 - Clamp assembly
• No. 4: Y0C698030 - Vent screw, complete
• No. 5: Y07X75000 - Cable guide, right
• No. 5: Y07V75000 – Cable guide, left
• No. 6: Y00E75000 – Cable housing, right
• No. 6: Y0C574000 – Cable housing, left
• No. 7: Y0C698040 – Complete cover, right
• No. 7: Y0C598020 – Complete cover, left

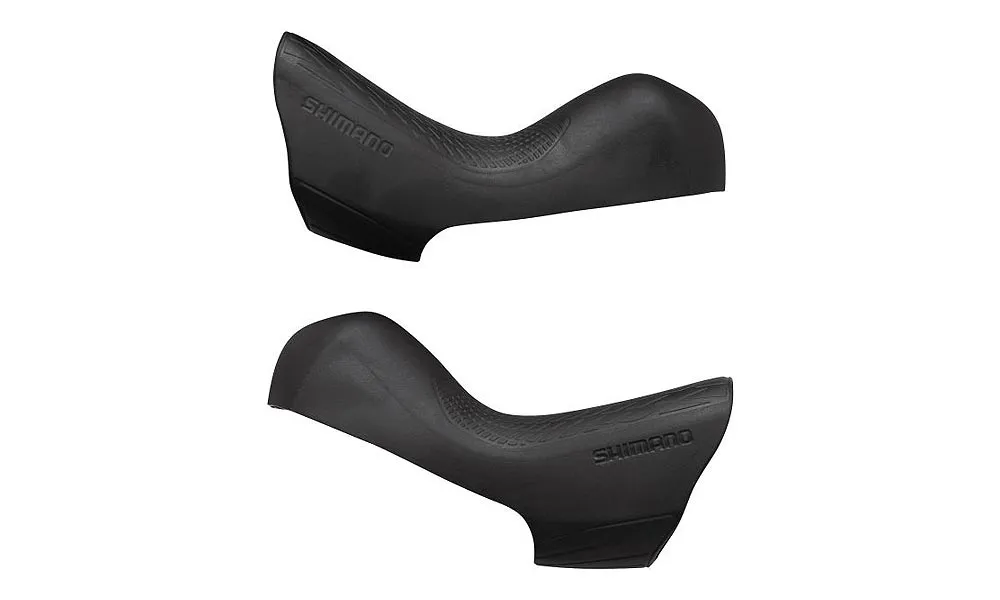

• No. 8: Y0E098010 - Pair of black rubber grips
• No. 9: Y0C514000 - Connecting ring
• No. 10: Y63Z27000 - Short end cap
• No. 11: Y63Z28000 - Long end cap
• No. 12: ESMDISCBP - Funnel, complete
• No. 13: Y0C698050 – Adapter for ESMDISCBP
• No. 15: Y8RD02000 – Flange connection screw
• No. 16: Y0C698060 – Diaphragm unit, right
• No. 16: Y0C598030 – Diaphragm unit, left
• No. 17: Y0C698070 – Diaphragm screws, complete
• No. 18: Y0C678000 - Diaphragm, right
• No. 18: Y0C578000 - Left diaphragm

Shimano Ultegra ST-R8025 11-speed shift/brake lever spare parts:

• No. 1: Y0E098020 - Nameplate, complete, right
• No. 1 : Y0E198010 - Nameplate, complete, left
• No. 2: Y63X80000 - Guide plate, right
• No. 2: Y63X80010 - Guide plate, left
• No. 3: Y0E098030 - Clamp assembly
• No. 4: Y0C698030 - Vent screw, complete
• No. 5: Y07X75000 – Cable guide, right
• No. 5: Y07V75000 – Cable guide, left
• No. 6: Y00E75000 – Cable housing, right
• No. 6: Y0C574000 – Cable housing, left
• No. 7: Y0C698040 – Complete cover, right
• No. 7: Y0C598020 – Complete cover, left
• No. 8: Y0E098010 - Pair of rubber grips
• No. 9: Y0C514000 - Connecting ring
• No. 10: Y63Z27000 - Short end cap
• No. 11: Y63Z28000 - Long end cap
• No. 12: ESMDISCBP - Funnel, complete
• No. 13: Y0C698050 – Complete adapter for ESMDISCBP
• No. 15: Y8RD02000 – Flange connection screw
• No. 16: Y0C698060 – Diaphragm unit, right
• No. 16: Y0C598030 – Diaphragm unit, left
• No. 17: Y0C698070 – Diaphragm screws, complete
• No. 18: Y0C678000 - Diaphragm, right
• No. 18: Y0C578000 - Left diaphragm
