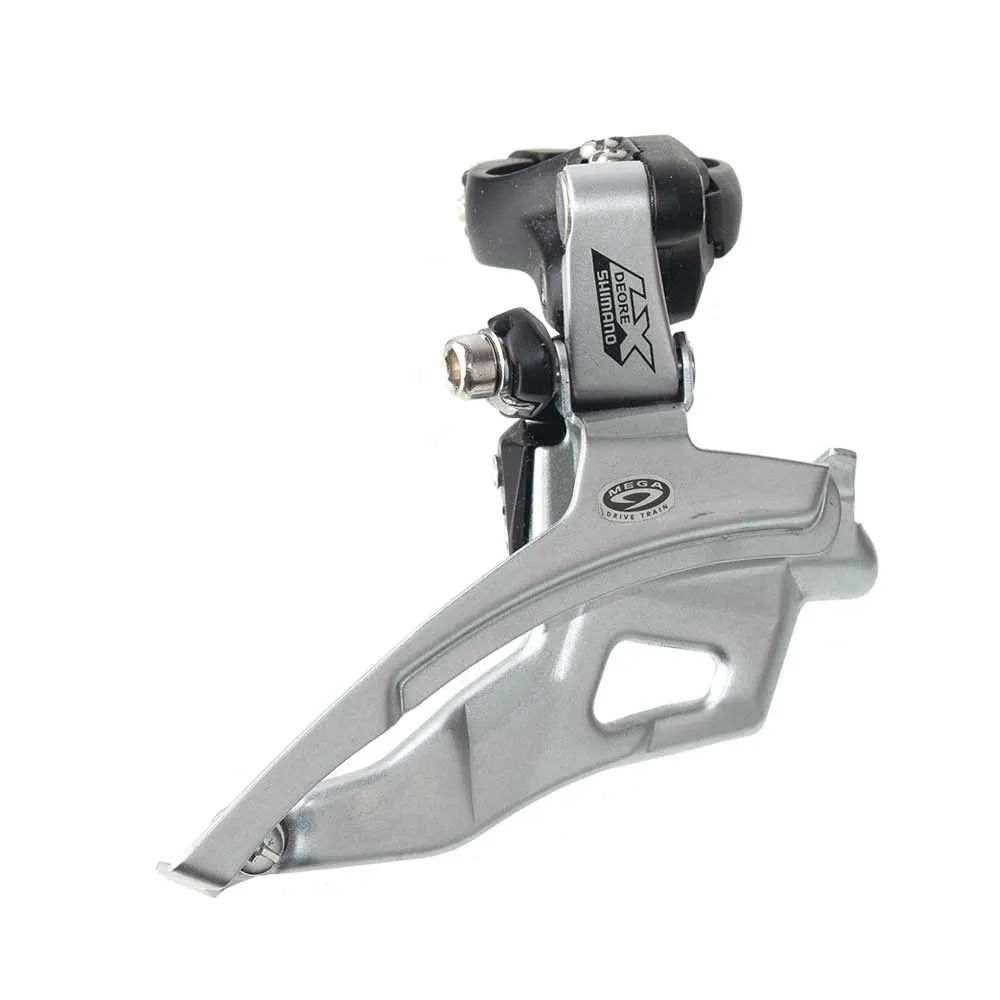

The Shimano Deore LX front derailleur FD-M571
Typical of Shimano: excellent shifting performance. The angled adjustment screws are easy to reach. The cage has been redesigned and is now lighter than before. In addition, the shape of the cage has been modified to increase tyre clearance. The widened parallelogram suppresses twisting thanks to the wider joint base, resulting in faster shifting and a longer service life.
Due to its outstanding shifting characteristics, we recommend this derailleur wherever it fits.
This derailleur also features the Dual Pull cable routing system, allowing for both top-pull and down-pull cable routing. Recommended for all full-suspension bikes with a low pivot point.
Shimano LX front derailleur technology:
The clamp is mounted approximately 14 cm above the bottom bracket axis.
- Aluminium clamp
- Chrome-plated steel chain guides
- Clamp size 28.6 mm,
- Largest chainring to be shifted: 48 teeth
- Smallest chainring to be used: 22 teeth
- Maximum chainring difference: 26 teeth
- Angle: 66–69 degrees
- Weight: 160 grams
Compatible with all Shimano 9x3-speed MTB shifters
