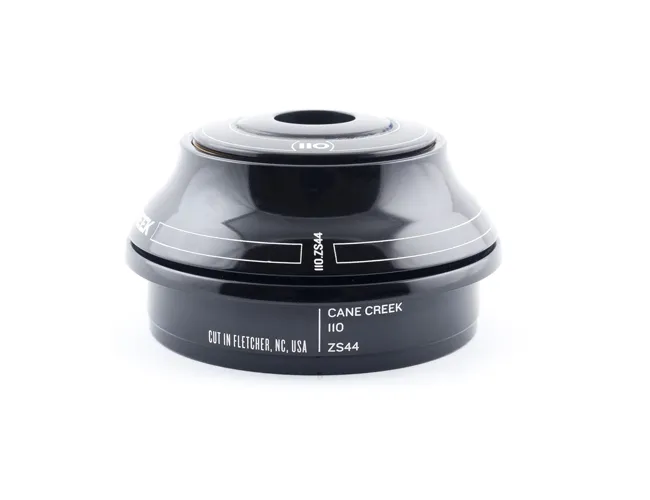

Cane Creek semi-integrated headset 110 top tube, Zero Stack ZS44 / 28.6 mm, 15 mm cap, aluminium / stainless steel, colour: black
Cane Creek 110 Headset
The Cane Creek 110 ZS44 headset top cup is designed for frames with an installation dimension of 44 mm at the top and bottom of the head tube and forks with a steerer tube diameter of 1 1/8 inch / 28.6 mm at the top.
Cane Creek 110 Headset Specifications and Dimensions:
- Headset: 7075-T6 aluminium, CNC-machined
- Bearings: Stainless steel cartridge bearings with multiple seals
- Height: 15 mm with cap
- Weight: 96 grams (manufacturer’s specification)
- Contents: Cane Creek headset including cap and clamp for aluminium / steel forks
Cane Creek 110 Series:
With the 110 Series, Cane Creek has created an exceptional premium headset that combines maximum functionality with an attractive design. It is manufactured using a first-class selection of materials without compromising on functionality, making it the best headset in the Cane Creek range. Available in a wide range of configurations, as upper and lower cups or as a complete headset for virtually any fork and head tube configuration.
Cane Creek bearings:
Fitted with high-quality stainless steel cartridge bearings, designed to protect all components from dirt and corrosion through multiple seals. This not only maximises service life but also minimises maintenance intervals. The prerequisites for a worry-free and unobtrusive headset.
ZS44/28.6 top thread:
The ZS headset is pressed into the top of the head tube; the press-fit dimension in the frame is 44 mm and the fork steerer tube diameter is 1 1/8 inch / 28.6 mm at the top.
ZS/Zero Stack – semi-integrated headset:
Headset assemblies designated ZS / Zero Stack are also referred to as semi-integrated headsets. They require a frame designed for this purpose with an exact match for the bearing cups. ‘Zero Stack’ refers to the minimal protrusion of the bearing cups from the head tube, whilst ‘ZS44’, for example, denotes the installation dimension, the outer diameter of the bearing cup and the inner diameter of the bearing cups within the frame. These headsets can generally be fitted without special tools, provided the frame has been pre-milled cleanly.
