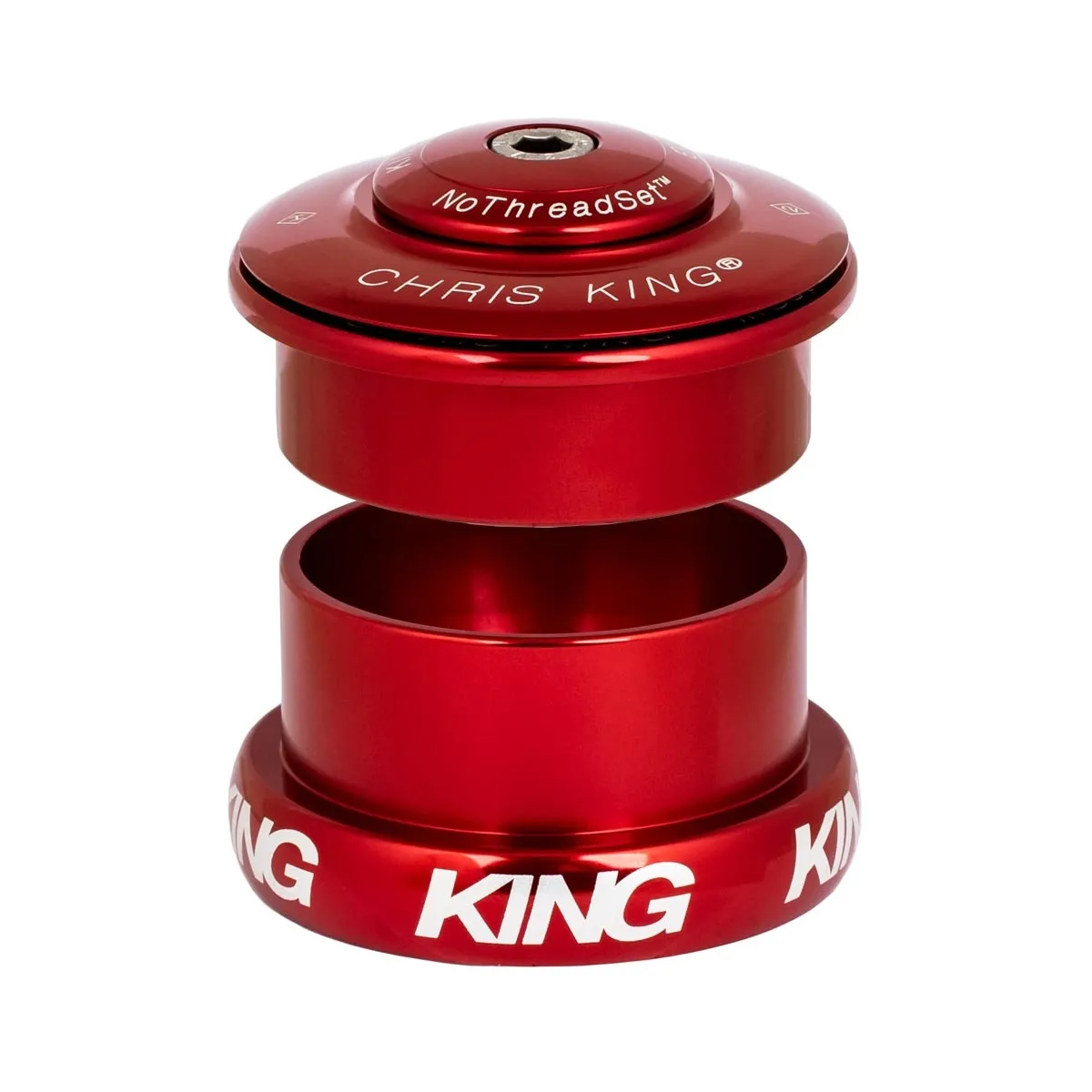

Chris King InSet i5 Headset

The Chris King Tapered InSet i5 headset with semi-integrated Zero Stack, ZS49, headset upper cup and classic External Cup, EC49, headset lower cup for frames with a 1 1/8-inch head tube for fitting 1 1/8–1.5-inch tapered forks.

This headset also allows frames with a semi-integrated 1 1/8-inch Zero Stack 49 mount to be combined with tapered forks. A prerequisite for this is that the lower headset mount in the head tube has sufficient press-fit depth, at least 40 mm.

Chris King quality:

Anyone who hears the name Chris King immediately thinks of extremely durable headsets. They have been produced by Chris King in Portland, Oregon, USA for 14 years, to a standard of quality that rightly deserves the label ‘indestructible’. The benchmark in headsets – often copied, never equalled – which is why they come with a 10-year warranty.

Chris King GripLock:

The NoThreadSet headset with the newly developed GripLock cap. The multi-piece cap is fitted with a slotted cone ring, which allows for an even easier connection between the steerer tube and head tube.

Zero Stack 49/28.6 installation dimensions:

Upper frame mount 49 mm diameter, 12 mm installation depth, upper steerer tube diameter 28.6 mm, 1 1/8 inch

EC 49/40 installation dimensions:

lower frame mount 49 mm diameter, 40 mm installation depth, lower steerer tube diameter 40 mm, tapered 1.5 inches, fork taper 40 mm

Chris King InSet i5 headset technology:

• Top: Zero Stack 49 semi-integrated cup for 1 1/8-inch steerer tube
• Bottom EC 49 classic bottom cup for 1.5-inch steerer tube
• Height: 23.26 mm
• Headset material: CNC-machined aluminium, anodised
• Bearing material: Double-sealed stainless steel
• Includes Chris King star nut and cap

Herstellerinformation: Manufacturer details: Chris King, 2801 NW Nela St, 97210 Portland, Oregon, United States, http://chrisking.com
