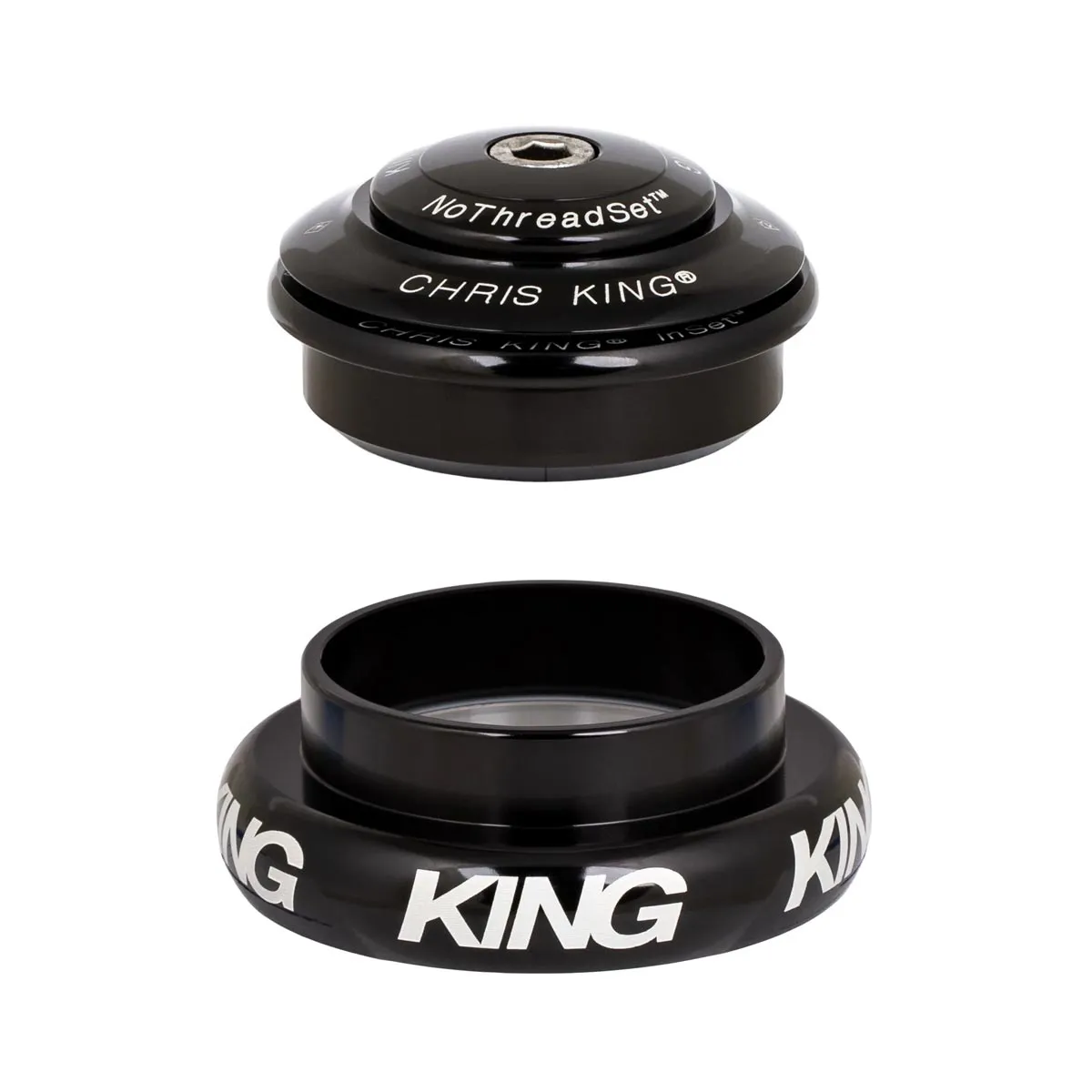

Chris King Mixed Tapered InSet i7 Headset

The Chris King Tapered InSet i7 headset features a semi-integrated Zero Stack (ZS44) upper cup and a classic External Cup (EC44) lower cup, designed for frames with a 1 1/8-inch head tube for fitting 1 1/8–1.5-inch tapered forks.

This headset also allows frames with a semi-integrated 1 1/8-inch Zero Stack 44 mount to be combined with tapered forks. A prerequisite for this is that the lower headset mount in the head tube has sufficient press-fit depth, at least 30 mm.

Chris King Headsets:

When you hear the name Chris King, you automatically think of extremely durable headsets. They have been produced by Chris King in Portland, Oregon, USA for many years, and to a standard of quality that rightly earns them the label ‘indestructible’. The benchmark when it comes to headsets – often copied, never equalled – which is why they come with a 10-year warranty. The benchmark in headsets – often copied, never equalled – which is why they come with a 10-year warranty. When you hear the name Chris King, you automatically think of extremely durable headsets.

The bearing cups and caps are made from aluminium and CNC-machined, whilst the industrial bearings are double-sealed stainless steel. Furthermore, Chris King bearings are easy to install and maintain.

Chris King Grip Lock:

the NoThreadSet headset with the newly developed GripLock cap. The multi-piece cap features a slotted cone ring, which allows for an even easier connection between the steerer tube and head tube.

Zero Stack 44/28.6 installation dimensions:

Upper frame mount 44 mm diameter, 8 mm installation depth, upper steerer tube diameter 28.6 mm, 1 1/8 inch

EC 44/40 installation dimensions:

lower frame mount 40 mm diameter, 30 mm installation depth, lower steerer tube diameter 40 mm, tapered 1.5 inches, fork cone 40 mm

Chris King InSet i7 Mixed Tapered headset technology:

• Top: Zero Stack 44 semi-integrated cup for 1 1/8-inch steerer tube
• Bottom EC 44 classic bottom cup for 1.5-inch steerer tube
• CNC-machined aluminium cup bearings.
• Multi-sealed industrial bearings.
• 10-year warranty.
• Includes Chris King star nut and end cap.
• Height 8.2 mm Weight 170 grams

Herstellerinformation: Manufacturer details: Chris King, 2801 NW Nela St, 97210 Portland, Oregon, United States, http://chrisking.com
