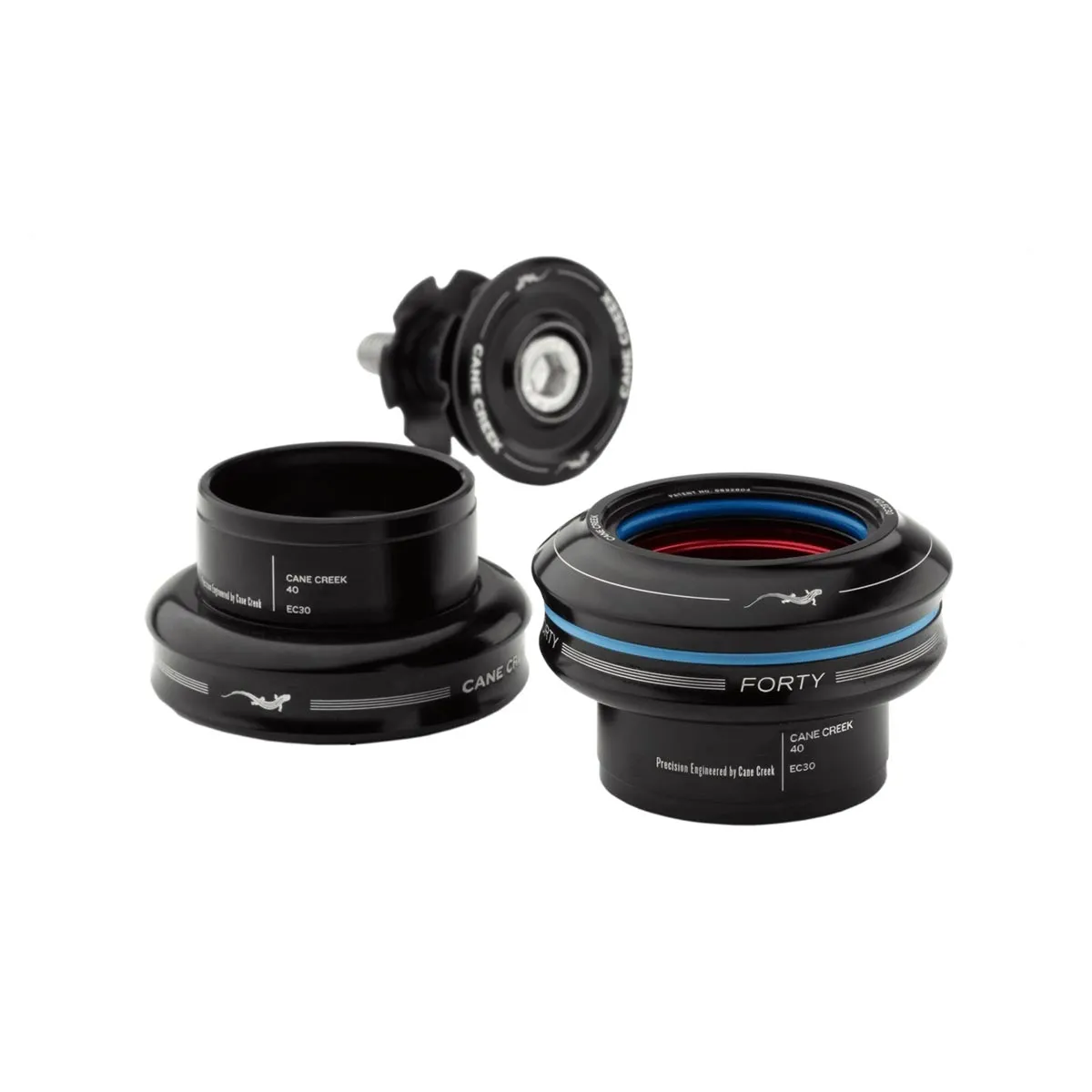

Cane Creek Forty Headset

The Cane Creek Forty EC30 headset upper and lower cups for frames with an installation dimension of 30 mm at the top and bottom of the head tube and forks with a steerer tube diameter of 1 inch / 25.4 mm at the top and 1 inch / 26 mm at the bottom.

Cane Creek Forty Headset Specifications and Dimensions:

• Headset: 6061-T6 aluminium, CNC-machined
• Bearings: Cartridge / angular contact ball bearings, zinc-plated, multi-sealed
• Height at top: 16 mm with cap
• Height at bottom: 12 mm
• Weight: 90 grams (manufacturer’s specification)
• Contents: Cane Creek headset including end cap and clamp for aluminium / steel forks

Cane Creek Forty:

The headset offering excellent value for money in terms of durability and quality. Based on the premium design of the 110 Series, it includes all the features that characterise a reliable headset. Available in various heights, as top cups or bottom cups for every frame and fork steerer – precision-manufactured by Cane Creek in Fletcher, NC.

Cane Creek bearings:

Fitted with high-quality cartridge bearings, double-sealed with low-friction clip seals, which are designed to protect all components from dirt and corrosion. This significantly extends service life and reduces maintenance intervals to a minimum. All excellent prerequisites for a low-maintenance and reliable headset.

EC30/25.4 top thread:

The EC30 headset is pressed into the top of the head tube; the press-fit dimension in the frame is 30 mm and the fork steerer tube diameter is 1 inch / 25.4 mm at the top.

EC30/26 bottom insertion depth:

The EC30 headset is pressed into the head tube at the bottom; the press-fit depth in the frame is 30 mm and the fork steerer tube diameter is 1 inch. The headset cone requires a 26 mm seat on the fork at the bottom.

EC/External Cup – external headset:

Head sets designated EC / External Cup are also referred to as external or classic head sets. These head sets require a frame designed for this purpose with exactly the same mount for the bearing cups. ‘External Cup’ refers to the relatively large projection of the bearing cups on the head tube, whilst ‘EC44’, for example, denotes the installation dimension, the outer diameter of the bearing cup and the inner diameter of the bearing cups in the frame. The headsets must be pressed in using a special tool, and the frame must be cleanly pre-milled.
