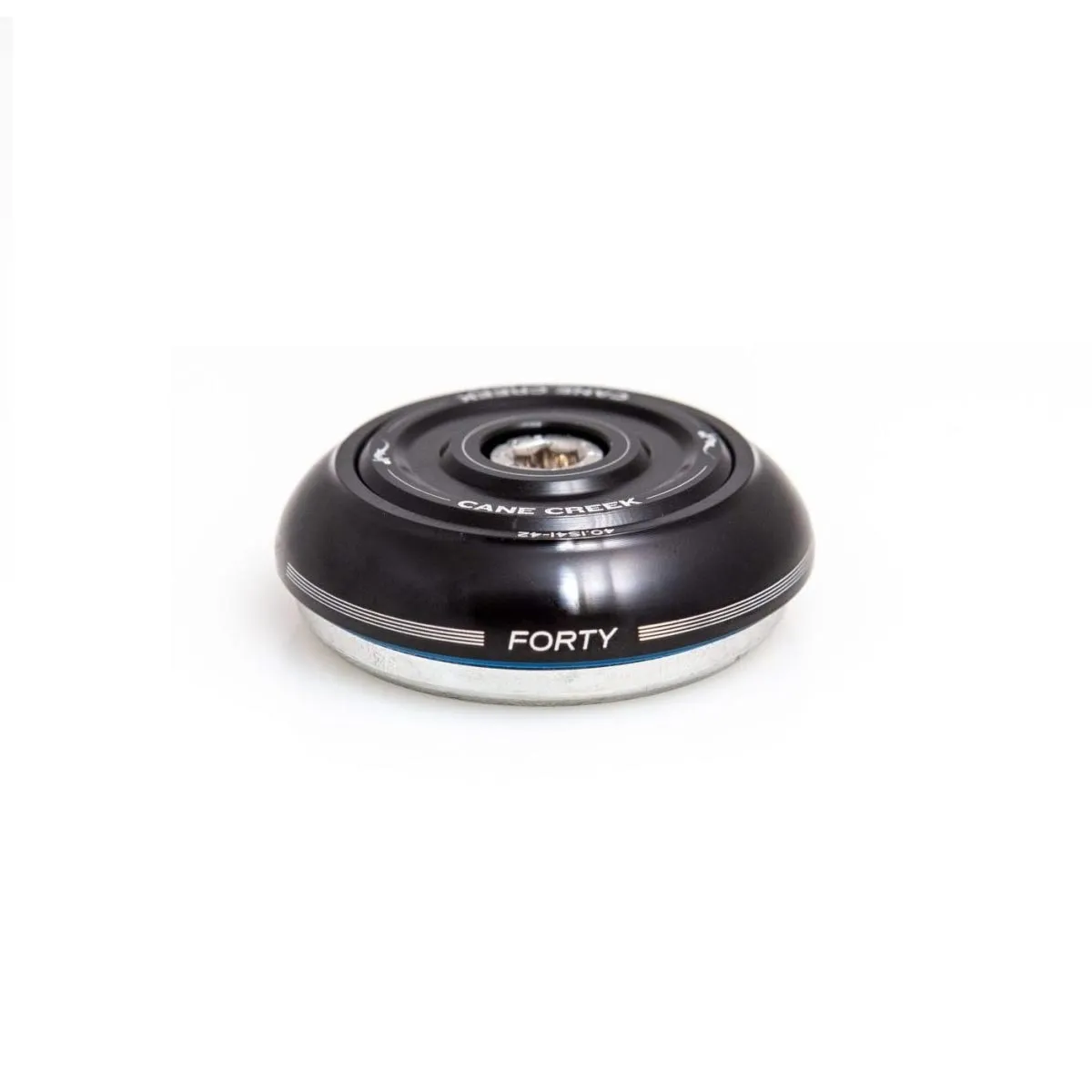

Cane Creek Forty Headset

The Cane Creek Forty IS42 headset top tube for frames with a 42 mm internal diameter at the head tube and forks with a 1 1/8 inch / 28.6 mm steerer tube diameter at the top.

The headset offering excellent value for money in terms of durability and quality. Based on the premium design of the 110 series, it incorporates all the features that characterise a reliable headset. Available in various heights, as top cups or bottom cups for any frame and fork steerer – precision-machined by Cane Creek in Fletcher, NC.

Cane Creek bearings:

Equipped with high-quality cartridge bearings, double-sealed with low-friction clip seals, which are designed to protect all components from dirt and corrosion. This significantly extends service life and reduces maintenance intervals to a minimum. All excellent prerequisites for a low-maintenance and reliable headset.

IS42/28.6 top thread:

The IS headset is inserted into the top of the head tube; the frame clearance is 42 mm and the fork steerer tube diameter is 1 1/8 inch / 28.6 mm at the top.

IS/Integrated Standard – fully integrated headset:

Headset assemblies designated IS / Integrated Standard are also referred to as fully integrated headsets. These headsets require a frame designed for this purpose, featuring a raceway for the bearings. ‘Integrated Standard’ refers to the fact that the bearings are inserted into the head tube without bearing cups, whilst ‘IS44’, for example, denotes the installation dimension, the outer diameter of the bearings and the inner diameter of the bearings within the frame. These headsets do not require any special tools; the frame is already prepared for them.

Cane Creek Forty headset technology:

• Headset: 6061-T6 aluminium, CNC-machined
• Bearings: Cartridge bearings, oxide-coated, multi-sealed
• Height: 9 mm with cap
• Weight: 70 grams (manufacturer’s specification)
• Contents: Cane Creek headset including end cap and clamp for aluminium / steel forks

Herstellerinformation: Cane Creek, 355 Cane Creek Road, 29732 Fletcher, North Carolina, United States, https://www.canecreek.com
