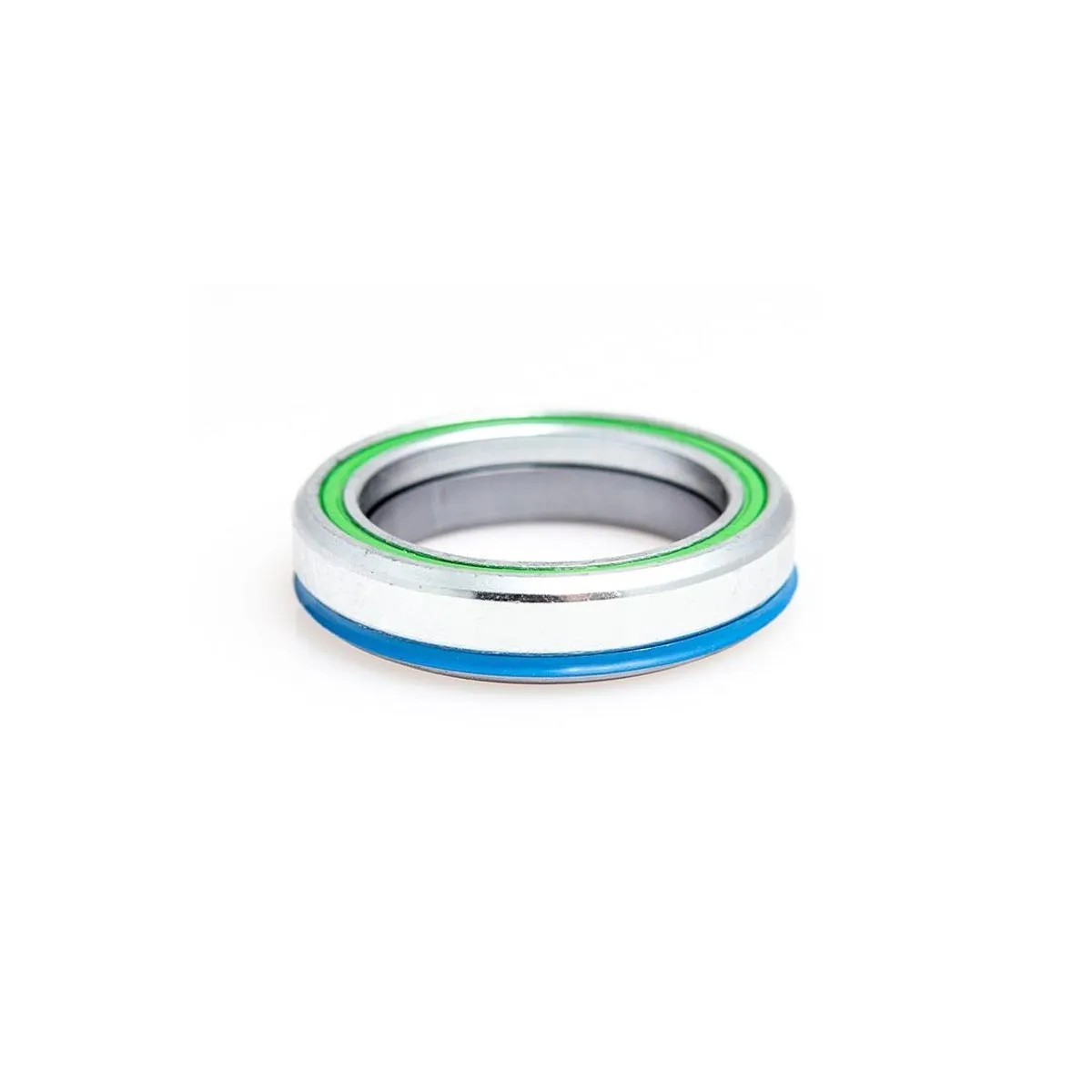

Cane Creek Forty Headset

The Cane Creek Forty IS47 bottom bracket for frames with a 47 mm installation dimension on the head tube and forks with a 1 1/4 inch / 33 mm steerer tube diameter at the bottom.

Cane Creek Forty headset specifications and dimensions:

• Headset: 6061-T6 aluminium, CNC-machined
• Bearings: Cartridge / angular contact ball bearings, zinc-plated, multi-sealed
• Height at bottom: 6.5 mm
• Contents: Cane Creek headset including tapered ring

Cane Creek Forty:

The headset offering excellent value for money in terms of durability and quality. Based on the premium design of the 110 series, it includes all the features that characterise a reliable headset. Available in various heights, as top cups or bottom cups for any frame and fork steerer – precision-manufactured by Cane Creek in Fletcher, NC.

Cane Creek bearings:

Fitted with high-quality cartridge bearings, double-sealed with low-friction clip seals, which are designed to protect all components from dirt and corrosion. This significantly extends service life and reduces maintenance intervals to a minimum. All excellent prerequisites for a low-maintenance and reliable headset.

IS47/33 bottom thread:

The IS headset is inserted into the head tube at the bottom; the installation dimension in the frame is 47 mm and the fork steerer tube diameter is 1 1/4 inches at the bottom. The headset cone requires a 33 mm seat on the fork at the bottom.

IS/Integrated Standard – fully integrated headset:

Headset assemblies designated IS / Integrated Standard are also referred to as fully integrated headsets. These headsets require a frame designed for this purpose, featuring a raceway for the bearings. ‘Integrated Standard’ refers to the fact that the bearings are inserted into the head tube without bearing cups, whilst, for example, ‘IS44’ denotes the installation dimension, the outer diameter of the bearings and the inner diameter of the bearings within the frame. These headsets do not require any special tools; the frame is already prepared for them.

Herstellerinformation: Cane Creek, 355 Cane Creek Road, 29732 Fletcher, North Carolina, United States, https://www.canecreek.com
