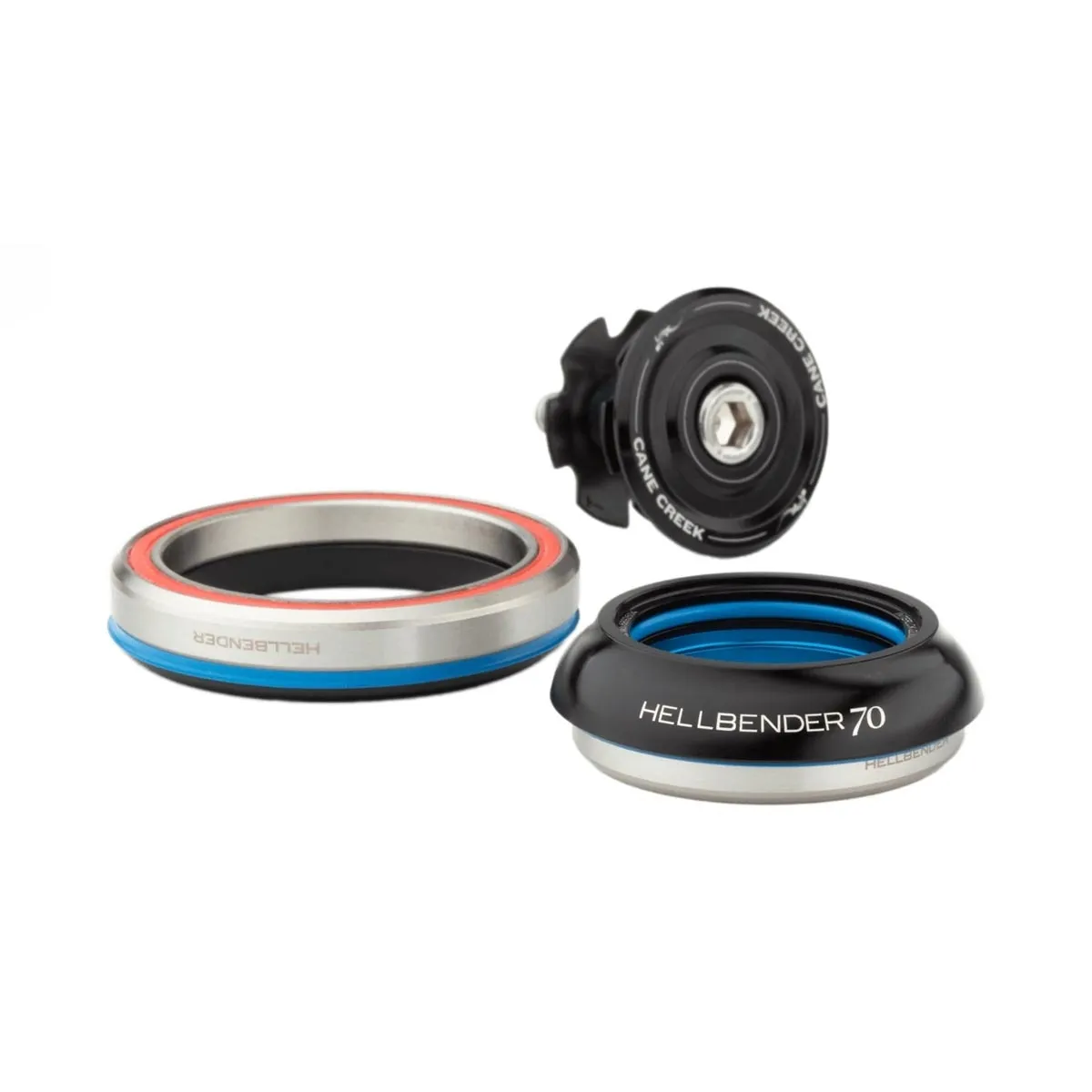

Cane Creek Hellbender 70 Headset

The Cane Creek Hellbender 70 IS41 headset top cup and IS52 bottom cup for frames with an installation dimension of 41 mm at the top and 52 mm at the bottom of the head tube, and tapered forks with a steerer tube diameter of 1 1/8 inch / 28.6 mm at the top and 1.5 inches / 40 mm at the bottom.

Cane Creek Hellbender 70 Headset Specifications and Dimensions:

• Headset: 6061-T6 aluminium, CNC-machined
• S.H.I.S. standard: IS41/28.6 – IS52/40
• Bearings: Stainless steel cartridge bearings with multiple seals
• Top height: 9 mm with cap
• Bottom height: 6.5 mm
• Weight: 80 grams (manufacturer’s specification)
• Contents: Cane Creek headset including end cap and clamp for aluminium / steel forks

Cane Creek Hellbender 70

With the Hellbender Series 70, Cane Creek has bridged the gap between the Series 40 and Series 110. The Hellbender features all the design characteristics, seals and bearings found in the premium Series 110, at an unbeatable price. Available in a wide range of configurations, as upper and lower cups or as a complete headset for almost any fork and head tube configuration.

Cane Creek bearings:

Equipped with high-quality stainless steel cartridge bearings, designed to protect all components from dirt and corrosion through multiple seals. This not only maximises service life but also minimises maintenance intervals. The prerequisites for a worry-free and unobtrusive headset.

IS41/28.6 top thread:

The IS headset is inserted into the head tube at the top; the installation dimension in the frame is 41 mm and the fork steerer tube diameter is 1 1/8 inch / 28.6 mm at the top.

IS52/40 bottom thread:

The IS headset is inserted into the head tube at the bottom; the frame clearance is 52 mm and the fork steerer tube diameter is 1.5 inches at the bottom. The headset cone requires a 40 mm seat on the fork at the bottom.

IS/Integrated Standard – fully integrated headset:

Head sets designated IS / Integrated Standard are also referred to as fully integrated head sets. These head sets require a frame designed for this purpose with a raceway for the bearings. Integrated Standard refers to the fact that the bearings are inserted into the head tube without bearing cups, and, for example, IS41/28.6 refers to the installation dimensions: outer diameter of the bearings and inner diameter of the bearings in the frame. These headsets do not require any special tools; the frame is already prepared for them.

Herstellerinformation: Cane Creek, 355 Cane Creek Road, 29732 Fletcher, North Carolina, United States, https://www.canecreek.com
