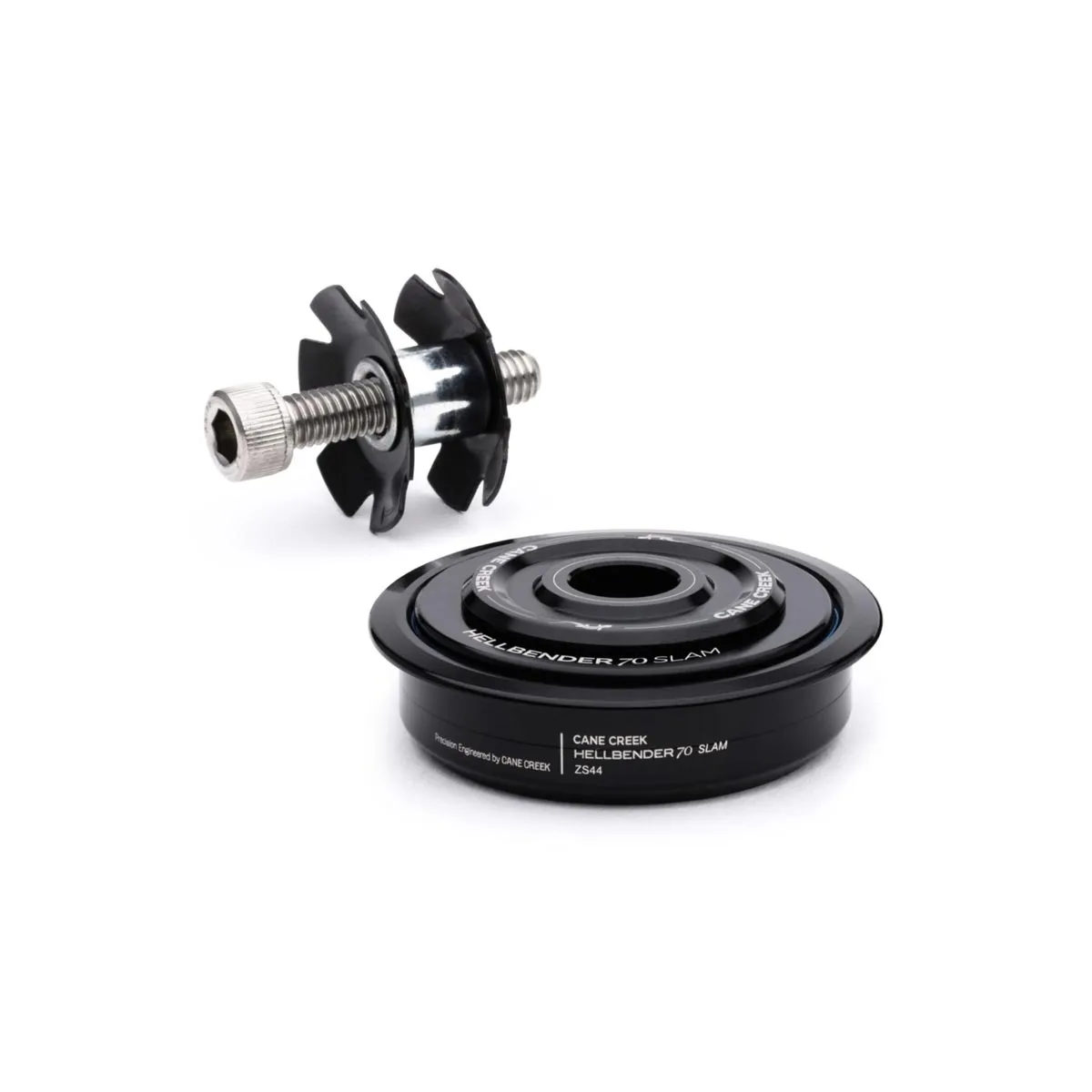

Cane Creek Hellbender 70 Slam Headset

The Cane Creek Hellbender 70 Slam ZS44 headset top tube is designed for frames with a threaded height of 44 mm at the top of the head tube and forks with a steerer tube diameter of 1 1/8 inches / 28.6 mm at the top.

Cane Creek Hellbender 70 Slam Headset Specifications and Dimensions:

• Headset: 6061-T6 aluminium, CNC-machined
• Bearings: Stainless steel cartridge bearings with multiple seals
• Height: 6 mm with cap
• Weight: 60 grams (manufacturer’s specification)
• Contents: Cane Creek headset including cap and clamp for aluminium / steel forks

Cane Creek Hellbender 70 Slam:

The Series 70 allows the handlebars to be mounted really low = Slam, without compromising on perfect preload. With the Hellbender Series 70, Cane Creek has also closed the gap between the Series 40 and Series 110. The Hellbender features all the design characteristics, seals and bearings found in the premium Series 110, at an unbeatable price. Available in a wide range of configurations, as upper and lower cups or as a complete headset for almost any fork and head tube configuration.

Cane Creek bearings:

Fitted with high-quality stainless steel cartridge bearings, designed to protect all components from dirt and corrosion through multiple seals. This not only maximises service life but also minimises maintenance intervals. The prerequisites for a worry-free and unobtrusive headset.

ZS44/28.6 top thread diameter:

The ZS headset is pressed into the top of the head tube; the press-fit dimension in the frame is 44 mm at the top and the fork steerer tube diameter is 1 1/8 inch / 28.6 mm at the top.

ZS/Zero Stack – semi-integrated headset:

Head sets designated ZS / Zero Stack are also referred to as semi-integrated head sets. They require a frame designed for this purpose with an exact match for the bearing cups. Zero Stack refers to the minimal protrusion of the bearing cups from the head tube, whilst ZS44, for example, denotes the installation dimension, the outer diameter of the bearing cup and the inner diameter of the bearing cups within the frame. The headsets can usually be fitted without special tools; the frame simply needs to be cleanly pre-milled.
