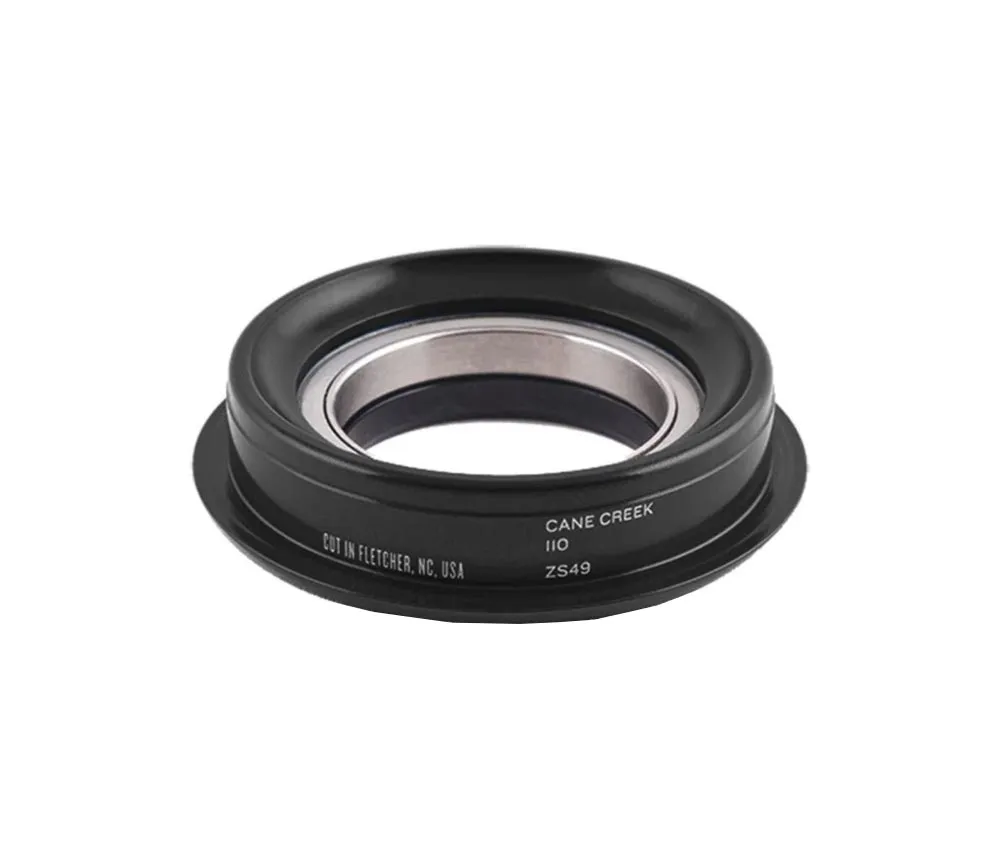

Cane Creek semi-integrated headset 110 bottom cup, Zero Stack ZS49 / 30 mm bottom, aluminium / stainless steel, colour: black
Cane Creek 110 Headset
The Cane Creek 110 ZS49 bottom bracket for frames with a clearance of 49 mm at the head tube and forks with a steerer tube diameter of 1 1/8 inch / 30 mm at the bottom.
Cane Creek 110 headset specifications and dimensions:
- Headset: 7075-T6 aluminium, CNC-machined
- Bearings: Stainless steel cartridge bearings with multiple seals
- Height: 4 mm
- Weight: 88 grams (manufacturer’s specification)
- Contents: Cane Creek headset including tapered ring
Cane Creek Series 110:
With the Series 110, Cane Creek has created an exceptional premium headset that combines maximum functionality with an attractive design. It is manufactured using a first-class selection of materials without compromising on functionality, making it the best headset in the Cane Creek range. Available in a wide range of configurations, as upper and lower cups or as a complete headset for almost any fork and head tube configuration.
Cane Creek bearings:
Fitted with high-quality stainless steel cartridge bearings, designed to protect all components from dirt and corrosion through multiple seals. This not only maximises service life but also minimises maintenance intervals. The prerequisites for a hassle-free and unobtrusive headset.
ZS49/30 bottom thread:
The ZS headset is pressed into the head tube from below; the press-fit dimension in the frame is 49 mm and the fork steerer tube diameter is 1 1/8 inches at the bottom. The headset cone requires a 30 mm seat on the fork.
ZS/Zero Stack – semi-integrated headset:
Head sets designated ZS / Zero Stack are also referred to as semi-integrated head sets. They require a frame designed for this purpose with an exact match for the bearing cups. Zero Stack refers to the minimal protrusion of the bearing cups from the head tube, whilst ZS44, for example, denotes the installation dimension, the outer diameter of the bearing cup and the inner diameter of the bearing cups within the frame. The headsets can usually be fitted without special tools; the frame simply needs to be cleanly pre-milled.
Herstellerinformation: Cane Creek, 355 Cane Creek Road, 29732 Fletcher, North Carolina, United States, https://www.canecreek.com
